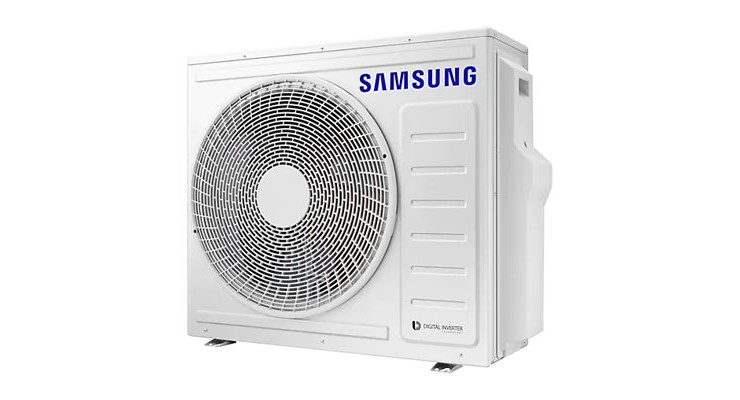

Multi-split for four rooms Samsung AJ080TXJ4KG/EU
In stock
4,785 BGN
Tax included
- Cooling
8.00 kW - Heating2
7.00 kW - SEER
7.75 A++ - SCOP
4.10 A+
Вземи желания продукт сега, избери подходяща за теб схема на изплащане:
Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!
Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи
- Compressor with Digital Inverter Boost technology.
- Equipped with NASA communication protocol.
- Direct drive fan powered by a BLDC motor.
- Triple Protector Plus to protect compressor, fin and controller from power surges.
| Outdoor Unit | AJ080TXJ4KG/EU | ||
|---|---|---|---|
| Maximum number of connectable indoor units | 4 | ||
| Capacity | |||
| Capacity | Cooling (Nominal) | kW | 8.0 |
| Heating @ +7 °C | kW | 9.3 | |
| Heating @ -5 °C | kW | 7.00 | |
| Heating @ -10 °C | kW | 5.97 | |
| Heating @ -15 °C | kW | 4.94 | |
| Performance | |||
| Energy Efficiency Cooling | SEER 1 | W/W | 7.75 |
| Power Consumption | kWh/a | 330 | |
| Pdesignc | kW | 7.3 | |
| EER | W/W | 4.06 | |
| Energy Efficiency Heating | SCOP 1 | W/W | 4.10 |
| Power Consumption | kWh/a | 2,009 | |
| Pdesignh (average) | kW | 5.9 | |
| COP 1 | W/W | 4.37 | |
| Airflow Rate | m3/min | 47.5 | |
| Sound Power | dB(A) | 64 | |
| Sound Pressure | Cooling | dB(A) | 48 |
| Heating | dB(A) | 50 | |
| Fan | Type | Propeller Fan | |
| Discharge direction | Front (horizontal) | ||
| Power | W | 125 | |
| Number of Fans | - | 1 | |
| Operating Temperature Range | Cooling | °C | -10.0~46.0 |
| Heating | °C | -15~24 | |
| Electrical Data | |||
| Power Source | Φ, V, Hz | 1Φ, 220~240 V, 50 Hz | |
| Compressor Type | Twin BLDC Rotary | ||
| Power Consumption | Cooling | kW | 1.97 |
| Heating | kW | 2.13 | |
| Operating Current | Cooling | A | 8.9 |
| Heating | A | 9.5 | |
| Dimensions | |||
| Net Dimensions (W x H x D) | mm | 880 x 798 x 310 | |
| Net Weight | kg | 57.5 | |
| Refrigerant | |||
| Refrigerant | Type | R32 (contains fluorinated greenhouse gases. GWP = 675) | |
| Factory Charging | kg | 2.00 | |
| Chargeless Piping Length | m | 40.0 | |
| Charging Ton equivalent CO2 | tCO2e | 1.35 | |
| Additional Refrigerant Charging | g/m | 10 | |
| Piping Connections | Liquid Pipe | ø, inch | 1/4 x 4 |
| Gas Pipe | ø, inch | 3/8 x 2 + 1/2 x 2 | |
| Piping Length | Total Piping Length | m | 70 |
| Min/Max | m | 3/25 | |
| Piping Height | Max Height (ID-ID) | m | 7.5 |
| Max Height (OD-ID) | m | 15 | |
- Energy labels as shown are according to EU No 626/2011 (LOT 10) label classification 2019, on a scale from D to A+++. However the SEER, SCOP and energy rating depends on the combination of Indoor Unit which is used with the outdoor unit. It may vary with the different indoor unit.
- Heating power at -5°C
| Outdoor Unit | AJ080TXJ4KG/EU |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Cooling Capacity (kW) | 8.0 |
| Heating Capacity (kW) | 7.00 |
| Pdesign Heating (-7°C) (kW) | 5.9 |
| SEER (Seasonal Cooling Efficiency) | 7.75 |
| SCOP (Seasonal Heating Efficiency) | 4.10 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ |
| Current for Cooling / Heating (A) | 8.9 / 9.5 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 48 / 50 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 64 / 64 |
| Dimensions - Outdoor Unit WxHxD (mm) | 880 x 798 x 310 |
| Weight - Outdoor Unit (kg) | 57.5 |
| Piping Connections - Liquid/Gas (mm) | 1/4 x 4 / 3/8 x 2 + 1/2 x 2 |
| Maximum Height Difference Between Outdoor and Each Indoor Unit (m) | 15 |
| Maximum Height Difference Between Indoor Units (m) | 7.5 |
| Operation Range - Cooling (°C) | -10.0 ~ 46.0 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant | R32 |
