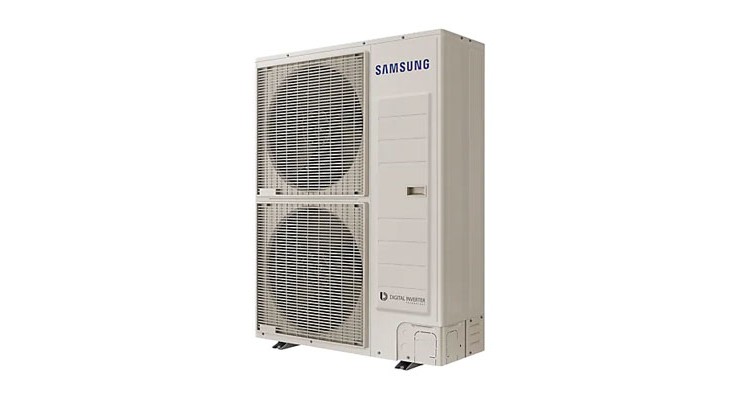

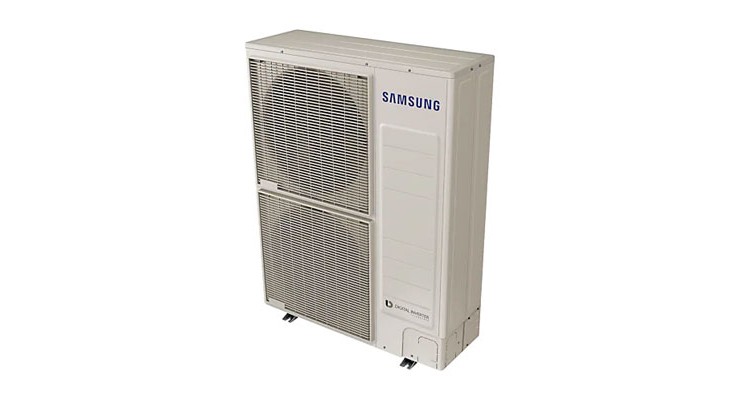

DVM System Samsung AM040NXMDER/EU
- Cooling
12.10 kW - Heating
12.10 kW - EER
4.50 - COP
4.80 - Noise
52 dB
| Model | AM040NXMDER/EU | |
| Power Supply | Φ/V/Hz | 1 / 220-240 / 50 |
| HP | 4 | |
| Capacity Cooling | kW | 12.10 |
| Capacity Heating | kW | 12.10 |
| Power Input Cooling | kW | 2.69 |
| Power Input Heating | kW | 2.58 |
| Current Input Cooling | A | 4.10 |
| Current Input Heating | A | 3.80 |
| Current MCA | A | 22 |
| Current MFA | A | 25 |
| EER1 (Cooling) | 4.50 | |
| COP1 (Heating) | 4.80 | |
| SEER1 | 10.50 | |
| Compressor (Type) | Twin BLDC Rotary | |
| Output | kW | 4.04 |
| Oil (Type) | PVE | |
| Oil (Initial Charge) | cc | 1,700 |
| Fan (Type) | Propeller / BLDC | |
| Air Flow Rate | m3/min | 100 |
| External Static Pressure | mmAq | 3 |
| Liquid Pipe | ø, mm | 9.52 |
| Gas Pipe | ø, mm | 15.88 |
| Installation Max. Length | m | 150 |
| Installation Max. Height | m | 50 |
| Refrigerant (Type) | R410A | |
| Factory Charging | kg / tCO2e | 3.2 / 6.70 |
| Sound Pressure2 | dB(A) | 52 |
| Sound Power2 | dB(A) | 67 |
| Weight | kg | 97 |
| Dimensions (W x H x D) | mm | 940 x 1210 x 330 |
| Operating Temperature (Cooling) | °C | -5 ~ 48 |
| Operating Temperature (Heating) | °C | -25 ~ 26 |
Notes:
1Performances are based on the following test conditions:
- Cooling: Indoor temperature: 27°C DB, 19°C WB
Outdoor temperature: 35°C DB, 24°C WB - Heating: Indoor temperature: 20°C DB, 15°C WB
Outdoor temperature: 7°C DB, 6°C WB - Equivalent refrigerant piping: 7.5 m, Level differences:0 m
2Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ according to operating conditions. Sound power level is an absolute value that a sound source generates.
| Manufacturer | Samsung |
| Type | Central air conditioning |
| Technology | Inverter |
| Series | DVM S Eco Heat Recovery |
| Outdoor Unit | AM040KXMDEH/EU |
| Power supply (V/ø/Hz) | 220-240 / 1 / 50 |
| Cooling Capacity (kW) | 12.10 |
| Heating Capacity (kW) | 12.10 |
| EER (Energy Efficiency in Cooling) | 4.50 |
| COP (Energy Efficiency in Heating) | 4.80 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 52 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 67 |
| Air Flow Outdoor Unit (m3/min) | 100 |
| Dimensions - Outdoor Unit WxHxD (mm) | 940 x 1210 x 330 |
| Weight - Outdoor Unit (kg) | 97 |
| Piping Connections - Liquid/Gas (mm) | 9.52 / 15.88 |
| Maximum Pipe Lenght (m) | 150 |
| Maximum Height Difference Between Indoor Units (m) | 50 |
| Operation Range - Cooling (°C) | -5 ~ 48 |
| Operation Range - Heating (°C) | -25 ~ 26 |
| Refrigerant | R410A |
