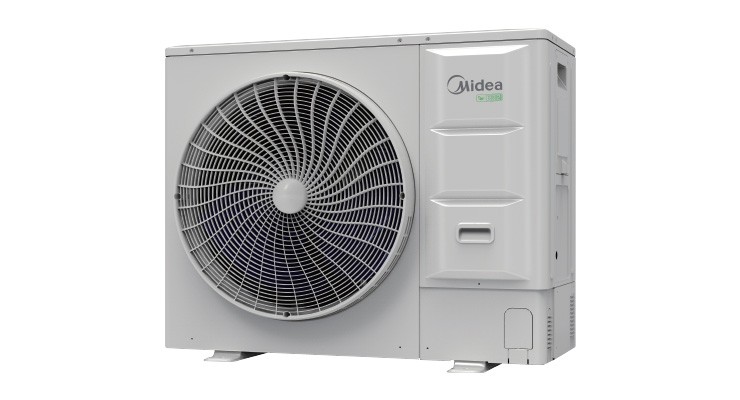

VRF System Midea V8 Mini MV8M-80WV2N8
- Cooling
7.20 kW - Heating
7.20 kW - SEER
5.80 A+ - SCOP
3.80 A - Noise
53 dB
| Technical Specifications of VRF System Midea V8 Mini MV8M-80WV2N8 | |||
|---|---|---|---|
| Model | MV8M-80WV2N8 | ||
| Power Supply | V/N/Hz | 220-240/1/50 | |
| Cooling1 | Capacity | kW | 7.2 |
| kBtu/h | 24 | ||
| Power input | kW | 1.95 | |
| EER | 3.70 | ||
| SEER | 5.80 | ||
| Heating (Rated)2 | Capacity | kW | 7.2 |
| kBtu/h | 24 | ||
| Power input | kW | 1.80 | |
| COP | 4.00 | ||
| SCOP | 3.80 | ||
| Heating (Max) 2 | Capacity | kW | 9.0 |
| kBtu/h | 30 | ||
| Power input | kW | 2.50 | |
| COP | 3.60 | ||
| Indoor Units Connection | Total Capacity | 50% ~ 160% of ODU capacity | |
| Maximum Number | 5 | ||
| Compressor | Type | DC inverter | |
| Quantity | 1 | ||
| Fan Motors | Type | DC | |
| Quantity | 1 | ||
| Airflow | m3/h | 5200 | |
| Static Pressure | Pa | 0-35 (standard); 35-80 (customized) | |
| Refrigerant | Type | R32 | |
| Factory Charge | kg | 2 | |
| Piping Connections3 | Gas pipe | mm | 15.9 |
| Liquid pipe | mm | 9.52 | |
| Sound Pressure4 | dB(A) | 53 | |
| Sound Power4 | dB(A) | 68 | |
| Net Dimensions (W×H×D) | mm | 1038×864×409 | |
| Packing Dimensions (W×H×D) | mm | 1120×980×560 | |
| Net Weight | kg | 77 | |
| Gross Weight | kg | 88 | |
| Operating Range | Cooling | °C | -15 to 52 |
| Heating | °C | -20 to 30 | |
Notes:
- Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
- Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
- Diameters given are those of the unit's stop valves.
- Sound pressure level is measured at a position 1m in front of the unit and 1.3m above the floor in a semi-anechoic chamber.
| Manufacturer | Midea |
| Type | Central air conditioning |
| Technology | Inverter |
| Series | V8 Mini VRF |
| Outdoor Unit | MV8S-252WV2RN1 |
| Power supply (V/ø/Hz) | 220-240 / 1 / 50 |
| Cooling Capacity (kW) | 7.20 |
| Heating Capacity (kW) | 7.20 |
| SEER (Seasonal Cooling Efficiency) | 5.80 |
| SCOP (Seasonal Heating Efficiency) | 3.80 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 53 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 68 |
| Air Flow Outdoor Unit - Cooling / Heating (m3/h) | 5200 |
| Dimensions - Outdoor Unit WxHxD (mm) | 1038 × 864 × 409 |
| Weight - Outdoor Unit (kg) | 77 |
| Operation Range - Cooling (°C) | -15 ~ 52 |
| Operation Range - Heating (°C) | -20 ~ 30 |
| Refrigerant (type) | R32 |
