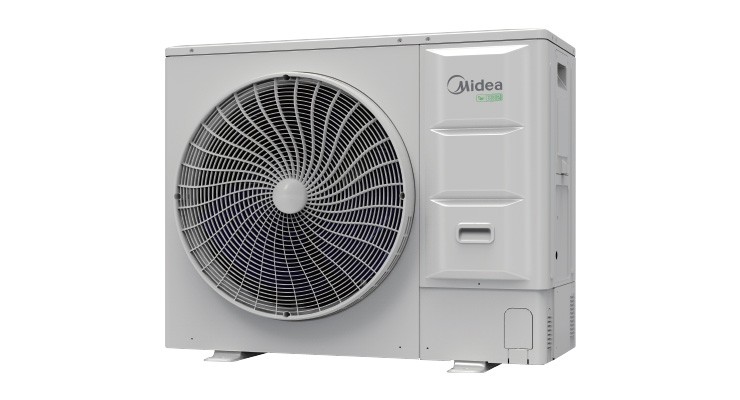

VRF System Midea V8 Mini MV8M-160WV2N1
- Cooling
15.50 kW - Heating
15.50 kW - SEER
6.80 A++ - SCOP
4.80 A++ - Noise
56 dB
| Technical Specifications of VRF System Midea V8 Mini MV8M-160WV2N1 | |||
|---|---|---|---|
| Model | MV8M-160WV2N1 | ||
| Power Supply | V/N/Hz | 220-240/1/50 | |
| Cooling1 | Capacity | kW | 15.5 |
| kBtu/h | 52 | ||
| Power input | kW | 5.96 | |
| EER | 2.60 | ||
| SEER | 6.80 | ||
| Heating (Rated)2 | Capacity | kW | 15.5 |
| kBtu/h | 52 | ||
| Power input | kW | 4.19 | |
| COP | 3.70 | ||
| SCOP | 4.80 | ||
| Heating (Max)2 | Capacity | kW | 17.5 |
| kBtu/h | 59 | ||
| Power input | kW | 5.30 | |
| COP | 3.30 | ||
| Indoor Units Connection | Total Capacity | 50%~160% of ODU capacity | |
| Maximum Number | 11 | ||
| Compressor | Type | DC inverter | |
| Quantity | 1 | ||
| Fan Motors | Type | DC | |
| Quantity | 1 | ||
| Airflow | m3/h | 5000 | |
| Static Pressure | Pa | 0-35 (standard) | |
| Refrigerant | Type | R410A | |
| Factory Charge | kg | 4.1 | |
| Piping Connections3 | Gas pipe | mm | 15.9 |
| Liquid pipe | mm | 9.52 | |
| Sound Pressure Level4 | dB(A) | 56 | |
| Sound Power Level4 | dB(A) | 74 | |
| Net Dimensions (W×H×D) | mm | 1073×864×523 | |
| Packing Dimensions (W×H×D) | mm | 1120×980×560 | |
| Net Weight | kg | 94 | |
| Gross Weight | kg | 104 | |
| Operating Range | Cooling | °C | -15 to 52 |
| Heating | °C | -20 to 30 | |
Notes:
- Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference, connect to Medium Static Pressure Duct indoor units.
- Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference, connect to Medium Static Pressure Duct indoor units.
- Diameters given are those of the unit's stop valves.
- Sound pressure level is measured at a position 1m in front of the unit and 1m above the floor in a semi-anechoic chamber.
| Manufacturer | Midea |
| Type | Central air conditioning |
| Technology | Inverter |
| Series | V8 Mini VRF |
| Outdoor Unit | MV8M-160WV2N1 |
| Power supply (V/ø/Hz) | 220-240 / 1 / 50 |
| Cooling Capacity (kW) | 15.50 |
| Heating Capacity (kW) | 15.50 |
| Power Input Cooling/Heating (kW) | 5.96 / 4.19 |
| SEER (Seasonal Cooling Efficiency) | 6.80 |
| SCOP (Seasonal Heating Efficiency) | 4.80 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 56 / 56 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 74 / 74 |
| Air Flow Outdoor Unit - Cooling / Heating (m3/h) | 5000 / 5000 |
| Dimensions - Outdoor Unit WxHxD (mm) | 1073 x 864 x 523 |
| Weight - Outdoor Unit (kg) | 94 |
| Operation Range - Cooling (°C) | -15 ~ 52 |
| Operation Range - Heating (°C) | -20 ~ 30 |
| Refrigerant (type) | R410A |
