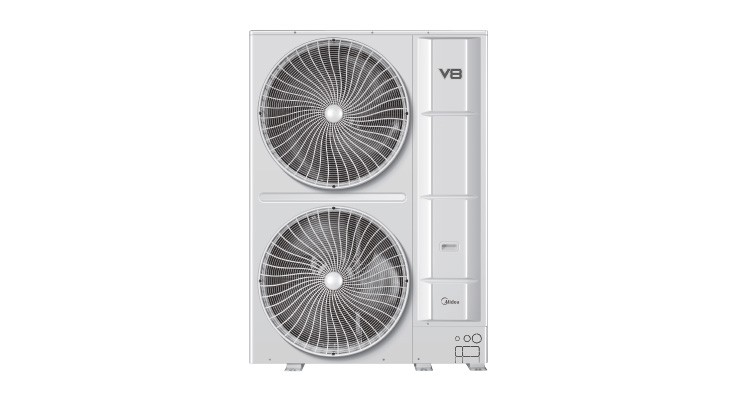

Three-phase VRF System Midea V8S MV8S-560WV2RN1
- Cooling
56.00 kW - Heating
56.00 kW - SEER
6.30 A++ - SCOP
4.07 A+ - Noise
61 dB
| Technical Specifications of three-phase VRF System Midea V8S MV8S-252WV2RN1 | |||
|---|---|---|---|
| Capacity | HP | 20 | |
| Model | MV8S-560WV2RN1 | ||
| Power Supply | V/Ph/Hz | 380-415/3/50 | |
| Cooling1 | Power | kW | 56 |
| kBut/h | 191.1 | ||
| Heating2 | Power | kW | 56 |
| kBut/h | 191.1 | ||
| Heating2 (Max.) | Power | kW | 63 |
| kBut/h | 215.0 | ||
| SEER | 6.30 | ||
| ηs,c | % | 249.0 | |
| SCOP | 4.07 | ||
| ηs,h | % | 159.8 | |
| Indoor Units Connection | Total Capacity | 50-130% | |
| Maximum Number | 33 | ||
| Compressor | Type | DC inverter | |
| Quantity | 1 | ||
| Fan Motors | Type | DC | |
| Quantity | 2 | ||
| Airflow | m3/h | 18500 | |
| Static Pressure | Pa | 0-35 (standard); 35-80 (customized) | |
| Refrigerant | Type | R410A | |
| Factory Charge | kg | 8.5 | |
| Piping Connections3 | Liquid | mm | Ø15.9 |
| Gas | mm | Ø28.6 | |
| Sound Pressure4 | dB(A) | 61 | |
| Sound Power4 | dB(A) | 89 | |
| Net Dimensions (W×H×D) | mm | 1250×1760×580 | |
| Packing Dimensions (W×H×D) | mm | 1330×1916×597 | |
| Net Weight | kg | 228 | |
| Gross Weight | kg | 252 | |
| Operating Range | Cooling | °C | -15 to 55 |
| Heating | °C | -30 to 30 | |
Notes:
- Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference; connect to Four-Way Cassette indoor unit.
- Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference; connect to Four-Way Cassette indoor unit.
- Diameters given are those of the unit's stop valves.
- Sound pressure level is measured at a position 1m in front of the unit and 1.3m above the floor in a semi-anechoic chamber.
| Manufacturer | Midea |
| Type | Central air conditioning |
| Technology | Inverter |
| Series | V8S VRF |
| Outdoor Unit | MV8S-560WV2RN1 |
| Power supply (V/ø/Hz) | 380-415 / 3 / 50 |
| Cooling Capacity (kW) | 56.00 |
| Heating Capacity (kW) | 56.00 |
| SEER (Seasonal Cooling Efficiency) | 6.30 |
| SCOP (Seasonal Heating Efficiency) | 4.07 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 61 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 89 |
| Air Flow Outdoor Unit - Cooling / Heating (m3/h) | 18500 |
| Dimensions - Outdoor Unit WxHxD (mm) | 1250 × 1760 × 580 |
| Weight - Outdoor Unit (kg) | 228 |
| Operation Range - Cooling (°C) | -15 ~ 55 |
| Operation Range - Heating (°C) | -30 ~ 30 |
| Refrigerant (type) | R410A |
