Three-phase Samsung EHS TDM Split AE090MXTPGH/EU + AE090BNYDGH/EU A2W Heat Pump
Three-phase Samsung EHS TDM Split AE090MXTPGH/EU + AE090BNYDGH/EU A2W Heat Pump
Three-phase Samsung EHS TDM Split AE090MXTPGH/EU + AE090BNYDGH/EU A2W Heat Pump
Three-phase Samsung EHS TDM Split AE090MXTPGH/EU + AE090BNYDGH/EU A2W Heat Pump
Three-phase Samsung EHS TDM Split AE090MXTPGH/EU + AE090BNYDGH/EU A2W Heat Pump
Three-phase Samsung EHS TDM Split AE090MXTPGH/EU + AE090BNYDGH/EU A2W Heat Pump

Three-phase Samsung EHS TDM Split AE090MXTPGH/EU + AE090BNYDGH/EU A2W Heat Pump

In stock
11,499 BGN
Tax included
  • Cooling
    8.00 kW
  • Heating
    9.00 kW
  • EER
    4.30
  • COP
    4.25
  • Noise
    50 dB
на 12 вноски по 1015.76 лв.

Вземи желания продукт сега, избери подходяща за теб схема на изплащане:

Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!

Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи

  • ’All in one’ air-to-water system
  • Connectable with R410A Split ODU in combination of third party Tank
  • Compatible with room thermostats, solar pumps, 2- or 3-way valves and back-up boilers
Indoor UnitAE090BNYDGH/EU
Outdoor UnitAE090MXTPGH/EU
System Operation Nominal Capacity Heating A7/W35¹/A7/W55² kW 9.0 / 7.7
Cooling A35/W18¹ kW 8.0
Power Input
(Nominal)
Heating A7/W35¹/A7/W55² kW 2.12/ 2.82
Cooling A35/W18¹ kW 1.86
COP (Nominal Heating) A7/W35¹ W/W 4.25 / 2.69
EER (Nominal Cooling) A35/W18¹ W/W 4.30
Seasonal space heating
enеrgy efficiency ηs LWT 35°C/ 55°C
ETA% 175 / 111
Seasonal Space Heating
Eff. Class LWT 35°C/ 55°C
- А+++/А+
Current MCA A 10
MFA A 16.1
Leaving Water Temperature2 Heating °C 15 ~ 55 (H/P : 25 ~ 55)
Cooling °C 5 ~ 25
Functions Smart Grid Ready / PV Enabled - -
4-Step Quiet Mode -
2-zone Control -

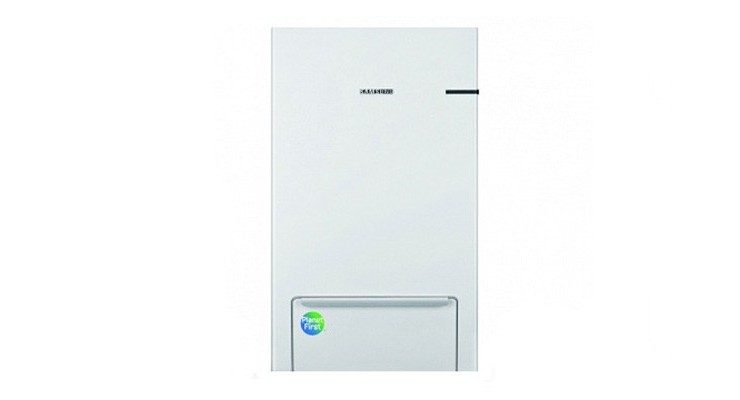

Wall-Mounted Hydro UnitAE090BNYDGH/EU
Power Supply Φ, #, V, Hz 3Ф, 4, 380~415 V, 50 Hz
Heater Back-up heater Capacity Default (Option) kW 6
Sound Sound Pressure³ Heating Std dB(A) 31
Cooling Std dB(A) 31
Sound Power Heating Std dB(A) 48
Dimensions Net Weight kg 46.5
Net Dimensions (WxHxD) mm 510 x 850 x 315
Piping Water pipe Inlet/Outlet Φ, inch 1+1/4''
Outdoor unitAE090MXTPGH/EU
Power Supply Φ, #, V, Hz 3Ф, 4, 380~415 V, 50 Hz
Compressor Type - BLDC twin rotary
Base Heater Capacity kW -
Sound Sound Pressure³ Heating Std dB(A) 51
Cooling Std dB(A) 50
Sound Power Heating Std dB(A) 69
Dimensions Net Weight kg 76
Net Dimensions (WxHxD) mm 940 x 998 x 330
Refrigerant Type R410A
Factory Charging tCO₂e 5.01
kg 2.4
Piping Piping Connections Liquid Pipe Φ, mm 9.52
Gas Pipe Φ, mm 15.88
Piping length (ODU-IDU)4 Max.[Equiv.] m 30
Level difference (IDU-IDU)4 Max. m 20
Chargeless Length m 10
Operation Ambient Temperature Heating °C -25 ~ 35
Cooling °C 10 ~ 46
DHW °C -25 ~ 43

* A+++ energy label is available according to EU No. 811/2013 label classification 2019, on a scale from D to A+++

  1. A2W Condition:(Heating) Water In/Out 30℃/35℃, Outdoor Air 7℃[DB]/6℃[WB]; (Cooling) Water In/Out 23℃/18℃, Outdoor Air 35℃[DB]
  2. A2W Condition : (Heating) Water In/Out 47℃/55℃, Outdoor Air 7℃[DB]/6℃[WB].
  3. Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ depending on operation conditions.
  4. ODU : Outdoor Unit, IDU : Indoor Unit
Manufacturer Samsung
Type Heat pumps
Technology Inverter
Series EHS TDM Plus
Outdoor Unit AE090MXTPGH/EU
Power supply (V/ø/Hz) 380-415 / 3 / 50
Cooling Capacity (kW) 8.0
Heating Capacity (kW) 9.0
Power Input Cooling/Heating (kW) 1.86 / 2.12
EER (Energy Efficiency in Cooling) 4.30
COP (Energy Efficiency in Heating) 4.25
Sound Pressure Outdoor Unit - Cooling/Heating dB(A) 50 / 51
Dimensions - Outdoor Unit WxHxD (mm) 940 x 998 x 330
Weight - Outdoor Unit (kg) 76
Piping Connections - Liquid/Gas (mm) 9.52 / 15.88
Operation Range - Cooling (°C) 10 ~ 46
Operation Range - Heating (°C) -25 ~ 35
Refrigerant R410A
