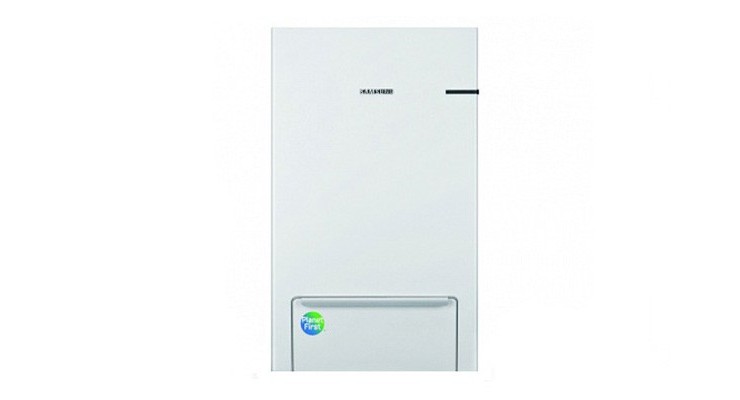

Three-phase Samsung EHS Split AE160AXEDGH/EU + AE160ANYDGH/EU Heat Pump
In stock
14,499 BGN
Tax included
- Cooling
15.00 kW - Heating
16.00 kW - EER
3.62 - COP
4.26 - Noise
54 dB
Вземи желания продукт сега, избери подходяща за теб схема на изплащане:
Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!
Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи
- Connectable with R410A Split Outdoor Unit in combination with a third party Tank.
- Compatible with room thermostats, solar pumps, 2- or 3-way valves and back-up boilers.
| Indoor Unit | AE160ANYDGH/EU | |||
|---|---|---|---|---|
| Outdoor Unit | AE160AXEDGH/EU | |||
| Operation | Nominal Capacity | Heating A7/W35¹/A7/W55² | kW | 16.00/ 14.60 |
| Cooling A35/W18¹ | kW | 15.00 | ||
| Power Input (Nominal) | Heating A7/W35 | kW | 3.76 | |
| Cooling A35/W18¹ | kW | 4.14 | ||
| COP (Nominal Heating) A7/W35¹ / A7/W55² | W/W | 4.26/ 2.74 | ||
| EER (Nominal Cooling) A35/W18¹ | W/W | 3.62 | ||
| SCOP LWT 35°C/ 55°C | W/W | 4.46/ 3.09 | ||
| Seasonal space heating enr.effi ciency ηs LWT 35°C/ 55°C | ETA% | 175/ 121 | ||
| Seasonal Space Heating Eff. Class LWT 35°C/ 55°C | - | A+++/A+ | ||
| Water flow rate | Low 35°C temp | l/min | 46.0 | |
| Current | MCA | A | 12 | |
| MFA | A | 16.1 | ||
| Leaving Water Temperature2 | Heating | °C | 15~55 | |
| Cooling | °C | 5~25 | ||
| Functions | Smart Grid Ready/PV Enabled | - | • | |
| 3-Step Quiet Mode | - | • | ||
| 2-zone Control | - | • | ||
| Wall-Mounted Hydro Unit | ||||
| Power Supply | Φ, #, V, Hz | 3Ф, 2, 380~415 V, 50 Hz | ||
| Heater | Capacity | kW | 6 | |
| Sound | Sound Pressure³ | Heating Std | dB(A) | 30 |
| Cooling Std | dB(A) | 30 | ||
| Sound Power | Heating Std | dB(A) | 44 | |
| Piping | Water pipe | Inlet/Outlet | Φ, inch | 1+1/4'' |
| Dimensions | Net Weight | kg | 46.5 | |
| Net Dimensions (WxHxD) | mm | 510 x 850 x 315 | ||
| Outdoor unit | ||||
| Compressor | Type | - | BLDC twin rotary | |
| Base Heater | Capacity | kW | 0.15 | |
| Sound | Sound Pressure³ | Heating Std | dB(A) | 52 |
| Cooling Std | dB(A) | 54 | ||
| Sound Power | Heating Std | dB(A) | 66 | |
| Dimensions | Net Weight | kg | 109.0 | |
| Net Dimensions (WxHxD) | mm | 940 x 1420 x 330 | ||
| Refrigerant | Type | R410A | ||
| Factory Charging | tCO₂e | 6.22 | ||
| kg | 2.98 | |||
| Piping | Piping Connections | Liquid Pipe | Φ, mm (inch) | 9.52 (3/8'') |
| Gas Pipe | Φ, mm (inch) | 15.88 (5/8'') | ||
| Piping length (ODU-IDU)⁴ | Max.[Equiv.] | m | 50 | |
| Level difference (IDU-IDU)⁴ | Max. | m | 30 | |
| Chargeless Length | m | 15 | ||
| Operation | Ambient Temperature | Heating | °C | -25~35 |
| Cooling | °C | 10~46 | ||
| DHW | °C | -25~43 | ||
- A2W Condition : (Heating) Water In/Out 30℃/35℃, Outdoor Air 7℃[DB]/6℃[WB]; (Cooling) Water In/Out 23℃/18℃, Outdoor Air 35℃[DB].
- A2W Condition : (Heating) Water In/Out 47℃/55℃, Outdoor Air 7℃[DB]/6℃[WB].
- Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ depending on operation conditions.
- ODU: Outdoor Unit, IDU: Indoor Unit
| Manufacturer | Samsung |
| Type | Heat pumps |
| Technology | Inverter |
| Series | EHS Split |
| Outdoor Unit | AE160AXEDGH/EU |
| Power supply (V/ø/Hz) | 380-415 / 3 / 50 |
| Cooling Capacity (kW) | 15.00 |
| Heating Capacity (kW) | 16.00 |
| EER (Energy Efficiency in Cooling) | 3.62 |
| COP (Energy Efficiency in Heating) | 4.26 |
| Dimensions - Outdoor Unit WxHxD (mm) | 940 x 1420 x 330 |
| Weight - Outdoor Unit (kg) | 109.0 |
| Operation Range - Cooling (°C) | 10 ~ 46 |
| Operation Range - Heating (°C) | -25 ~ 35 |
| Refrigerant | R410A |
