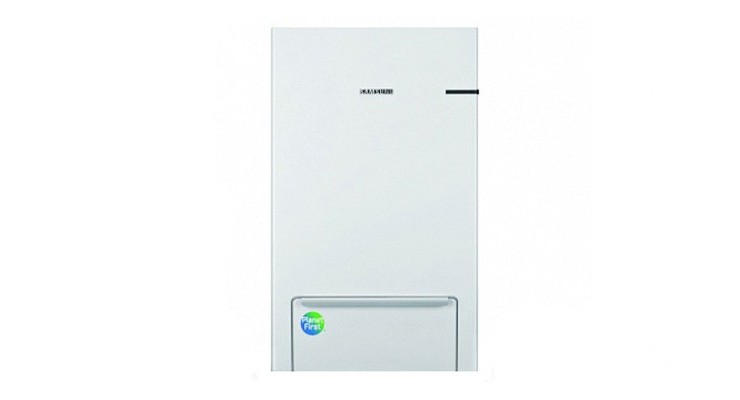

Three-phase Samsung EHS Split AE120AXEDGH/EU + AE160ANYDGH/EU Heat Pump
- Cooling
12.00 kW - Heating
12.00 kW - EER
3.87 - COP
4.63 - Noise
50dB
-
- Connectable with R410A Split Outdoor Unit in combination with a third party Tank.
- Compatible with room thermostats, solar pumps, 2- or 3-way valves and back-up boilers.
| Indoor Unit | AE160ANYDGH/EU | |||
|---|---|---|---|---|
| Outdoor Unit | AE120AXEDGH/EU | |||
| Operation | Nominal Capacity | Heating A7/W35¹/A7/W55² | kW | 12.00/11.00 |
| Cooling A35/W18¹ | kW | 12.00 | ||
| Power Input (Nominal) | Heating A7/W35 | kW | 2.59 | |
| Cooling A35/W18¹ | kW | 3.10 | ||
| COP (Nominal Heating) A7/W35¹ / A7/W55² | W/W | 4.63/2.89 | ||
| EER (Nominal Cooling) A35/W18¹ | W/W | 3.87 | ||
| SCOP LWT 35°C/ 55°C | W/W | 4.59/3.12 | ||
| Seasonal space heating enr.effi ciency ηs LWT 35°C/ 55°C | ETA% | 181/122 | ||
| Seasonal Space Heating Eff. Class LWT 35°C/ 55°C | - | A+++ / A+ | ||
| Water flow rate | Low 35°C temp | l/min | 35.0 | |
| Current | MCA | A | 10 | |
| MFA | A | 16,1 | ||
| Leaving Water Temperature2 | Heating | °C | 15~55 | |
| Cooling | °C | 5~25 | ||
| Functions | Smart Grid Ready/PV Enabled | - | • | |
| 3-Step Quiet Mode | - | • | ||
| 2-zone Control | - | • | ||
| Wall-Mounted Hydro Unit | ||||
| Power Supply | Φ, #, V, Hz | 3Ф, 2, 380~415 V, 50 Hz | ||
| Heater | Capacity | kW | 6 | |
| Sound | Sound Pressure³ | Heating Std | dB(A) | 30 |
| Cooling Std | dB(A) | 30 | ||
| Sound Power | Heating Std | dB(A) | 44 | |
| Piping | Water pipe | Inlet/Outlet | Φ, inch | 1+1/4" |
| Dimensions | Net Weight | kg | 45.0 | |
| Net Dimensions (WxHxD) | mm | 510 x 850 x 315 | ||
| Outdoor unit | ||||
| Compressor | Type | - | BLDC twin rotary | |
| Base Heater | Capacity | kW | - | |
| Sound | Sound Pressure³ | Heating Std | dB(A) | 50 |
| Cooling Std | dB(A) | 50 | ||
| Sound Power | Heating Std | dB(A) | 64 | |
| Dimensions | Net Weight | kg | 109,0 | |
| Net Dimensions (WxHxD) | mm | 940 x 1 420 x 330 | ||
| Refrigerant | Type | R410A | ||
| Factory Charging | tCO₂e | 6,22 | ||
| kg | 2.98 | |||
| Piping | Piping Connections | Liquid Pipe | Φ, mm (inch) | 9.52 (3/8") |
| Gas Pipe | Φ, mm (inch) | 15.88 (5/8") | ||
| Piping length (ODU-IDU)⁴ | Max.[Equiv.] | m | 50 | |
| Level difference (IDU-IDU)⁴ | Max. | m | 50 | |
| Chargeless Length | m | 15 | ||
| Operation | Ambient Temperature | Heating | °C | -25~35 |
| Cooling | °C | 10~46 | ||
| DHW | °C | -25~43 | ||
- A2W Condition : (Heating) Water In/Out 30℃/35℃, Outdoor Air 7℃[DB]/6℃[WB]; (Cooling) Water In/Out 23℃/18℃, Outdoor Air 35℃[DB].
- A2W Condition : (Heating) Water In/Out 47℃/55℃, Outdoor Air 7℃[DB]/6℃[WB].
- Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ depending on operation conditions.
- ODU: Outdoor Unit, IDU: Indoor Unit
| Manufacturer | Samsung |
| Type | Heat pumps |
| Technology | Inverter |
| Series | EHS Split |
| Outdoor Unit | AE120AXEDGH/EU |
| Power supply (V/ø/Hz) | 380-415 / 3 / 50 |
| Cooling Capacity (kW) | 12.00 |
| Heating Capacity (kW) | 12.00 |
| EER (Energy Efficiency in Cooling) | 3.87 |
| COP (Energy Efficiency in Heating) | 4.63 |
| Dimensions - Outdoor Unit WxHxD (mm) | 940 x 1420 x 330 |
| Weight - Outdoor Unit (kg) | 109 |
| Operation Range - Cooling (°C) | 10 ~ 46 |
| Operation Range - Heating (°C) | -25 ~ 35 |
| Built-in water tank (L) | No |
| Refrigerant (type) | R410A |
| Warranty | 3 years |
