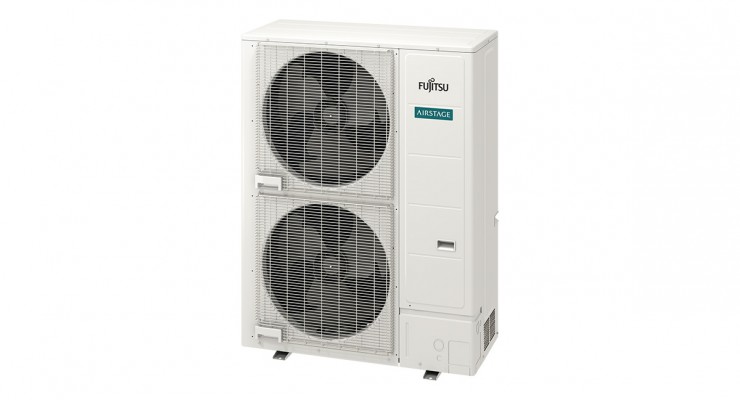

Three-phase outdoor unit AJY108LELDH for Fujitsu Airstage VRF system, J-IVL Series
- Cooling Capacity: 33.5 kW
- Heating Capacity: 33.5 kW
- Maximum connectable indoor units: 1-30
- Maximum pipe lenght: 400 m
- Maximum height difference (upper/lower): 50/40 m
- Operating Range:
- Cooling: -15 to 46°C
- Heating: -20 to 21°C
| Technical Specifications of three-phase outdoor unit AJY0108LELDH for Fujitsu Airstage VRF system, J-IVL Series | |||
|---|---|---|---|
| Rated capacity range | HP | 12 | |
| Model name | AJY108LELDH | ||
| Maximum connectable indoor units | 1-30 | ||
| Power source | 3-phase, 400V~, 50Hz | ||
| Capacity | Cooling | kW | 33.5 |
| Nominal Heating | 33.5 | ||
| Max. Heating | 37.5 | ||
| Input power | Cooling | kW | 10.42 |
| Nominal Heating | 8.18 | ||
| Max. Heating | 10.25 | ||
| EER | Cooling | W/W | 3.22 |
| COP | Nominal Heating | 4.10 | |
| Max. Heating | 3.66 | ||
| SEER | Cooling | 7.27 | |
| SCOP | Heating | 3.63 | |
| ηc | Cooling | % | 287.8 |
| ηh | Heating | 142.2 | |
| Air flow rate | High | m3/h | 11,000/12,100 |
| Sound pressure level/ Power level |
Cooling | % | 59 / 73 |
| Heating | 62 / 75 | ||
| Heat exchanger fin | Blue fin | ||
| Net Dimensions | Height | mm | 1,428 |
| Width | 1,080 | ||
| Depth | 480 | ||
| Weight | kg | 178 | |
| Refrigerant | Type (Global Warming Potential) | R410A (2,088) | |
| Charge | kg (CO2eq-T) | 7.5 (15.7) | |
| Connection pipe diameter | Liquid | mm | 12.70 |
| Gas | 28.58 | ||
| Total pipe length | m | 400 | |
| Max. height difference | 50/40 (Outdoor unit: Upper/Lower) | ||
| Operating Range | Cooling | °CDB | -15 to 46 |
| Heating | -20 to 21 | ||
Note: Specifications are based on the following conditions.
Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
Heating: Indoor temperature of 20°CDB/(15°CWB), and outdoor temperature of 7°CDB/6°CWB.
Pipe length: 7.5 m; Height difference between outdoor unit and indoor unit: 0 m.
The protective function may work when using it outside the operation range.
| Manufacturer | Fujitsu Airstage |
| Series | J-IVL |
| Outdoor Unit | AJY108LELDH |
| Power supply (V/ø/Hz) | 400 / 3 / 50 |
| Cooling Capacity (kW) | 33.5 |
| Heating Capacity (kW) | 33.5 |
| EER (Energy Efficiency in Cooling) | 3.22 |
| COP (Energy Efficiency in Heating) | 4.10 |
| SEER (Seasonal Cooling Efficiency) | 7.27 |
| SCOP (Seasonal Heating Efficiency) | 3.63 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 59 / 62 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 73 / 75 |
| Dimensions - Outdoor Unit WxHxD (mm) | 1,080 x 1,428 x 480 |
| Weight - Outdoor Unit (kg) | 178 |
| Maximum Pipe Lenght (m) | 400 |
| Maximum Height Difference (m) | 50 / 40 |
| Operation Range - Cooling (°C) | -15 ~ 46 |
| Operation Range - Heating (°C) | -20 ~ 21 |
| Refrigerant (type) | R410A |
| Warranty | 3 years |
