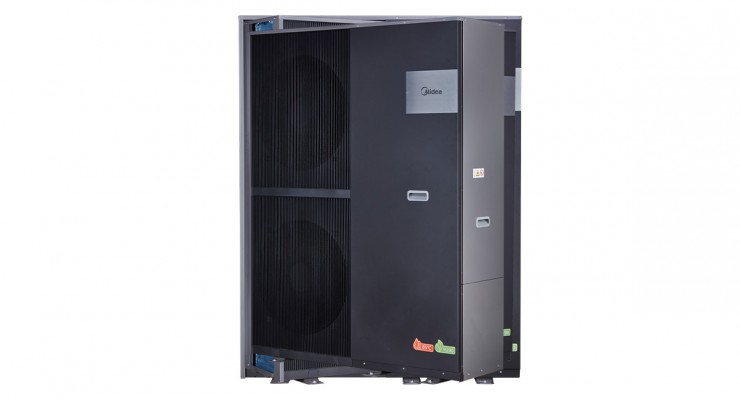

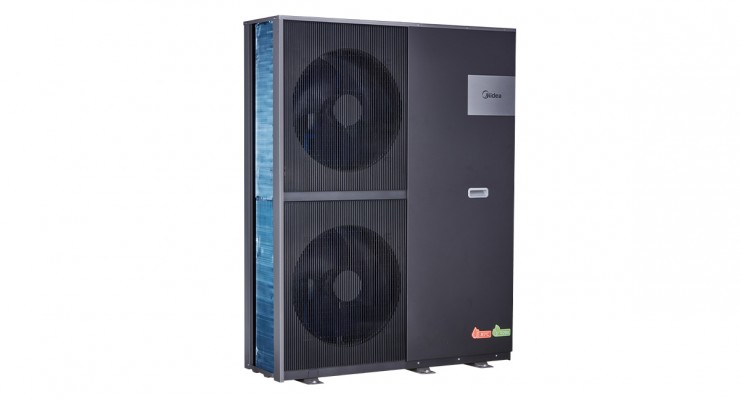

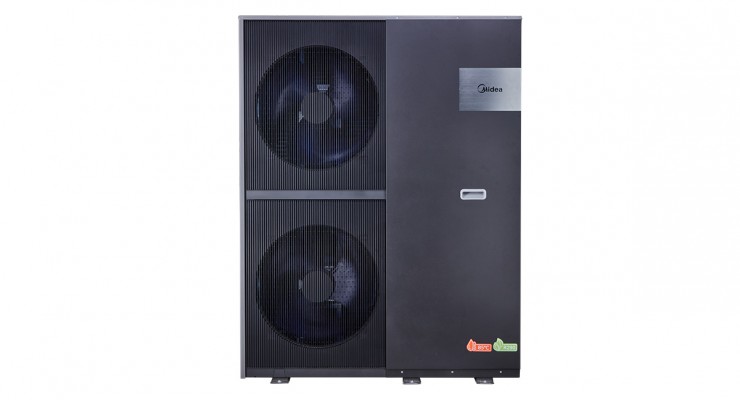

Three-phase Midea MARS Mono R290 MHC-V35WD2RN7 Heat Pump
- Cooling
35.00 kW - Heating
35.00 kW - EER
4.12 A - COP
4.17 A
| Technical specifications for Three-phase Midea Mars R290 Mono MHC-V30WD2RN7 Heat Pump | |||
|---|---|---|---|
| Model name | MHC-V30WD2RN7 | ||
| Heating (A7/W35) | Capacity | kW | 30.0 |
| Rated input | kW | 6.67 | |
| COP | 4.50 | ||
| Cooling (A35/W18) | Capacity | kW | 30.0 |
| Rated input | kW | 6.80 | |
| EER | 4.41 | ||
| Seasonal space heating energy efficiency class | Water outlet at 35°C | ηs | 193.8% |
| class | A+++ | ||
| Power supply | V/Ph/Hz | 380 ~ 415 / 3 / 50 | |
| Compressor | Type | Scroll Type | |
| Outdoor fan | Motor type | DC brushless motor | |
| Number of fans | 2 | ||
| Air flow | m3/h | 10500 | |
| Air side heat exchanger | Type | Finned tube | |
| Water side heat exchanger | Type | Plate heat exchanger | |
| Connection of water side | Dimension | mm | DN32 |
| Method | Threaded connection | ||
| Water pump | Type | Canned-motor pump | |
| Max. pump head | m | 12 | |
| Expansion vessel | Volume | L | 5 |
| Charge pressure | MPa | 0.8 | |
| Safety valve | MPa | 0.3 | |
| Water flow range | MPa | 1.2 - 6.2 | |
| Refrigerant | Type | R290 | |
| Charged volume | kg | 2.90 | |
| Throttle type | EEV | ||
| Unit dimension (W×H×D) | mm | 1384 x 1816 x 523 | |
| Packing dimension (W×H×D) | mm | 1480 x 2000 x 570 | |
| Net/Gross weight | kg | 260 / 285 | |
| Outdoor air temperature range | Cooling | °C | -15 ~ 48 |
| Heating | -25 ~ 43 | ||
| DHW | -25 ~ 43 | ||
| Water outlet temperature setting range | Cooling | °C | 0 ~ 25 |
| Heating | 25 ~ 85 | ||
| DHW | 20 ~ 75 | ||
Note:
- Parameters may change with product updates, based on the machine nameplate.
- Antifreeze liquid is needed when water outlet temperature reaches 5°C.
| Manufacturer | Midea |
| Type | Heat pumps |
| Technology | Inverter |
| Series | Mars |
| Outdoor Unit | MHC-V30WD2RN7 |
| Power supply (V/ø/Hz) | 400 / 3 / 50 |
| Cooling Capacity (kW) | 30.00 |
| Heating Capacity (kW) | 30.00 |
| Power Input Cooling/Heating (kW) | 6.80 / 6.67 |
| EER (Energy Efficiency in Cooling) | 4.41 |
| COP (Energy Efficiency in Heating) | 4.50 |
| SEER (Seasonal Cooling Efficiency) | - |
| SCOP (Seasonal Heating Efficiency) | - |
| Energy Efficiency Class (Cooling) | - |
| Energy Efficiency Class (Heating) | - |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | - |
| Dimensions - Outdoor Unit WxHxD (mm) | 1384 x 1816 x 523 |
| Weight - Outdoor Unit (kg) | 260 |
| Operation Range - Cooling (°C) | -15 ~ 48 |
| Operation Range - Heating (°C) | -25 ~ 43 |
| Built-in water tank (L) | No |
| Refrigerant (type) | R290 |
| Warranty | 3 years |
