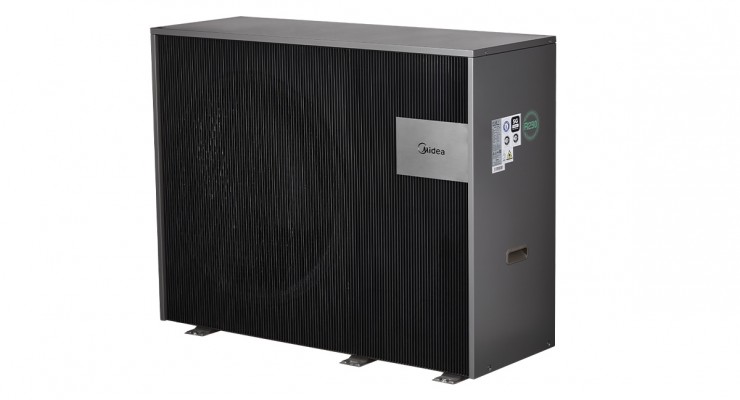

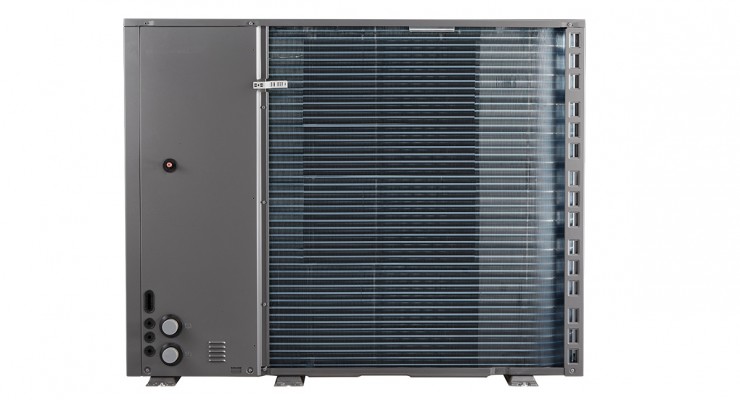

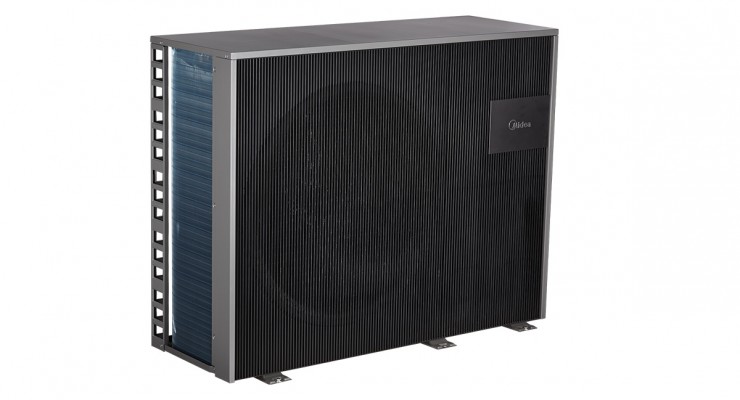

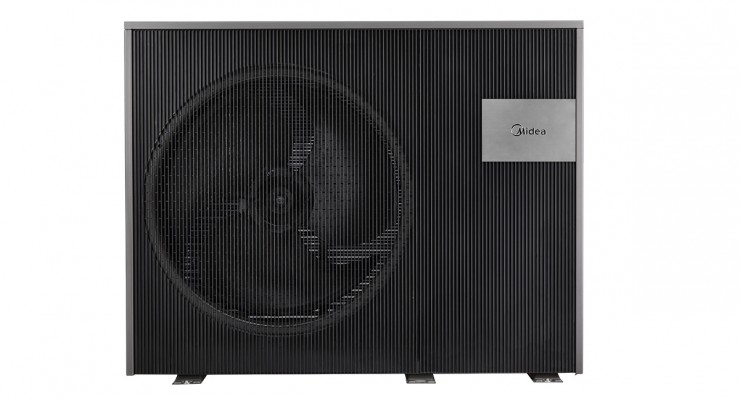

Three Phase Midea M-Thermal Nature R290 MHC-V16WD2RN7-B Heat Pump
Ask about availability
- Cooling
14.00 kW - Heating
15.50 kW - SEER 7°C
4.98 B - SCOP 35°C
4.72 A+++ - Noise
49 dB
| Technical Specifications for Midea M-Thermal Nature Mono R290 MHC-V16W/D2RN7-B Heat Pump | |||
|---|---|---|---|
| Model Name | MHC-V16W/D2RN7-B | ||
| Power Supply | V/Ph/Hz | 380-415/3/50 | |
| Heating A7W35 | Capacity | kW | 15.50 |
| Rated input | kW | 3.44 | |
| COP | 4.50 | ||
| Heating A7W45 | Capacity | kW | 15.50 |
| Rated input | kW | 4.25 | |
| COP | 3.65 | ||
| Heating A7W55 | Capacity | kW | 16.00 |
| Rated input | kW | 5.25 | |
| COP | 3.05 | ||
| Heating A-7W35 | Capacity | kW | 13.10 |
| Rated input | kW | 4.85 | |
| COP | 2.70 | ||
| Cooling A35W18 | Capacity | kW | 15.00 |
| Rated input | kW | 3.53 | |
| EER | 4.25 | ||
| Cooling A35W7 | Capacity | kW | 14.00 |
| Rated input | kW | 5.19 | |
| EER | 2.70 | ||
| SCOP | Average climate, W35°C | A+++ | |
| 4.72 | |||
| Average climate, W55°C | A+++ | ||
| 3.86 | |||
| SEER | Average climate, W7°C | 4.98 | |
| Average climate, W18°C | 6.87 | ||
| ErP sound power level | dB | 59 | |
| Sound pressure (1m) | Heating A7W35 | dB(A) | 49 |
| Cooling A35W18 | dB(A) | 44 | |
| Refrigerant | Type (GWP) | R290 (3) | |
| Charged volume | kg | 1.50 | |
| Unit net dimension (W x H x D) | mm | 1330 x 1051 x 475 | |
| Packing dimension (W x H x D) | mm | 1390 x 1235 x 570 | |
| Net / Gross weight | kg | 169/ 191 | |
| Water side connection | G1 1/4"BSP | ||
| Outdoor air temperature range | Cooling | °C | -5 ~ 46 |
| Heating | °C | -25 ~ 35 | |
| DHW | °C | -25 ~ 46 | |
| Water setting temperature range | Cooling | °C | 5 ~ 25 |
| Heating | °C | 25 ~ 80 | |
| DHW | °C | 20 ~ 70 | |
Note:
- data above based on test reference standard EN14511; EN14825; EN50564;EN 12102; (EU) No:811
| Manufacturer | Midea |
| Type | Heat pumps |
| Technology | Inverter |
| Series | M-Thermal Nature |
| Outdoor Unit | MHC-V16WD2RN7-B |
| Power supply (V/ø/Hz) | 400 / 3 / 50 |
| Cooling Capacity (kW) | 14.00 |
| Heating Capacity (kW) | 15.50 |
| Power Input Cooling/Heating (kW) | 5.19 / 3.44 |
| EER (Energy Efficiency in Cooling) | 2.70 |
| COP (Energy Efficiency in Heating) | 4.50 |
| SEER (Seasonal Cooling Efficiency) | 4.98 |
| SCOP (Seasonal Heating Efficiency) | 4.72 |
| Energy Efficiency Class (Cooling) | A |
| Energy Efficiency Class (Heating) | A+++ |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 59 / 59 |
| Dimensions - Outdoor Unit WxHxD (mm) | 1330 x 1051 x 475 |
| Weight - Outdoor Unit (kg) | 169 |
| Operation Range - Cooling (°C) | -5 ~ 46 |
| Operation Range - Heating (°C) | -25 ~ 35 |
| Built-in water tank (L) | No |
| Refrigerant (type) | R290 |
| Warranty | 3 years |
