The indoor and outdoor units are designed to be compact and light by reducing the basic chassis size and the overall material weight.
Air conditioners from this series can reach 250 Pa static pressure, making them a preferred choice for installations with long air ducts.
Slanted corners at the top help reduce turbulent airflow. Low noise is realized by adopting a plastic case and a plastic fan.
Centralized control including facilities and equipment in addition to air conditioning is possible by linking up with MODBUS, KNX interfaces.
| Series | KHT |

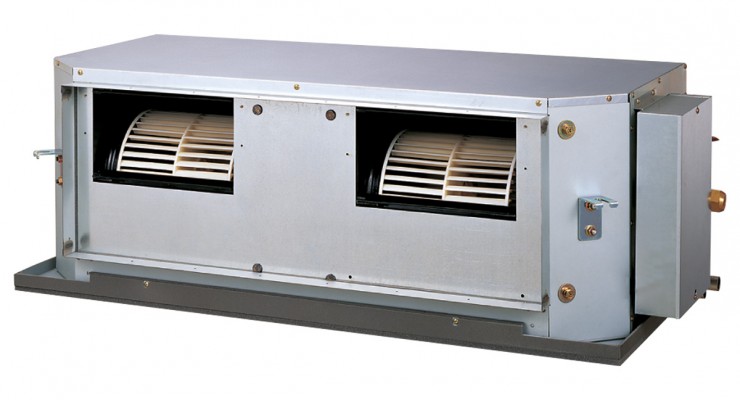

| Indoor Unit | ARXG45KHTB |
| Outdoor Unit | AOEG45KRTA |
| Power supply (V/ø/Hz) | 400 / 3 / 50 |
| Capacity (BTU) | 45 000 BTU |
| Cooling Capacity (kW) | 12.10 (4.00 - 14.00) |
| Heating Capacity (kW) | 13.50 (5.00 - 16.20) |
| Power Input Cooling/Heating (kW) | 4.16 / 3.61 |
| Pdesign Cooling/Heating (-10°C) (kW) | 12.10 / 9.20 |
| EER (Energy Efficiency in Cooling) | 2.91 |
| COP (Energy Efficiency in Heating) | 3.74 |
| SEER (Seasonal Cooling Efficiency) | 5.14 |
| SCOP (Seasonal Heating Efficiency) | 4.00 |
| Energy Efficiency Class (Cooling) | A |
| Energy Efficiency Class (Heating) | A+ |
| Maximum Current for Cooling / Heating (A) | 14.00 / 14.00 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 47 / 43 / 40 |
| Sound Pressure Indoor Unit - Heating dB(A) | 47 / 43 / 40 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 57 / 57 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 75 / 74 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 71 / 71 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 3350 / 4450 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 3350 / 4450 |
| Static Pressure (Standart) | 100 to 250 (100) |
| Dimensions - Indoor Unit WxHxD (mm) | 1050 × 400 × 500 |
| Dimensions - Outdoor Unit WxHxD (mm) | 940 × 998 × 320 |
| Weight - Indoor Unit (kg) | 46 |
| Weight - Outdoor Unit (kg) | 67 |
| Piping Connections - Liquid/Gas (mm) | 9.52 / 15.88 |
| Drain Pipe Diameter (mm) | 23.4 / 25.4 |
| Maximum Pipe Lenght (m) | 50 (30) |
| Maximum Height Difference (m) | |
| Operation Range - Cooling (°C) | -15 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
