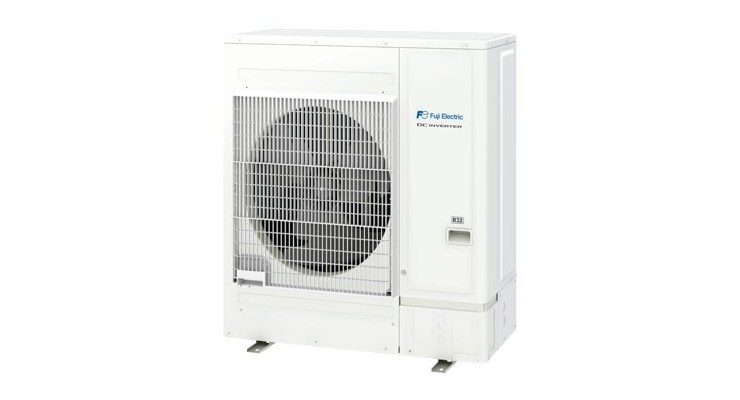

Three-phase inverter duct-type air conditioner Fuji Electric RDG54KHTAP
In stock
5,548.00 €
- Cooling
13.40 kW - Heating
15.50 kW - EER
3.03 - COP
3.98 - Noise
29 dB
High efficiency and quiet operation
A combination of a V-shaped heat exchanger, an air relaxer and a high-efficiency fan motor make the system efficient and the operation quiet despite its small size.
Compact, lightweight outdoor unit
The outdoor unit from this series is smaller and lighter than its predecessor and can be installed in tight spaces.
Automatic adjustment function of the air flow
This unique and innovative function automatically sets the necessary power of the air flow for the effective air conditioning of the room.
Connect to various central management systems (optional)
Centralized management including facilities and equipment in addition to air conditioning is possible by connecting to MODBUS, KNX interfaces.
| Manufacturer | Fuji Electric |
| Type | Duct type air conditioners |
| Technology | Inverter |
| Series | KHT |
| Indoor Unit | RDG54KHTAP |
| Outdoor Unit | ROG54KRTA |
| Power supply (V/ø/Hz) | 400 / 3 / 50 |
| Capacity (BTU) | 54 000 BTU |
| Cooling Capacity (kW) | 13.4 (4.5 - 14.5) |
| Heating Capacity (kW) | 15.5 (4.7 - 16.5) |
| Power Input Cooling/Heating (kW) | 4.42 / 3.89 |
| EER (Energy Efficiency in Cooling) | 3.03 |
| COP (Energy Efficiency in Heating) | 3.98 |
| Energy Efficiency Class (Cooling) | B |
| Energy Efficiency Class (Heating) | A |
| Maximum Current for Cooling / Heating (A) | 14.0 / 14.0 |
| Moisture Removal (l/h) | 3.7 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 39 / 35 / 31 / 29 |
| Sound Pressure Indoor Unit - Heating dB(A) | 39 / 35 / 31 / 29 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 57 / 59 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 67 / 69 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 73 / 73 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 2550 / 4450 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 2550 / 4450 |
| Static Pressure (Standart) | 30 to 200 (60) |
| Dimensions - Indoor Unit WxHxD (mm) | 1400 x 300 x 700 |
| Dimensions - Outdoor Unit WxHxD (mm) | 940 x 998 x 320 |
| Weight - Indoor Unit (kg) | 46 |
| Weight - Outdoor Unit (kg) | 67 |
| Piping Connections - Liquid/Gas (mm) | 9.52 / 15.88 |
| Drain Pipe Diameter (mm) | 25 / 32 |
| Maximum Pipe Lenght (m) | 50 |
| Maximum Height Difference (m) | 30 |
| Operation Range - Cooling (°C) | -15 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
