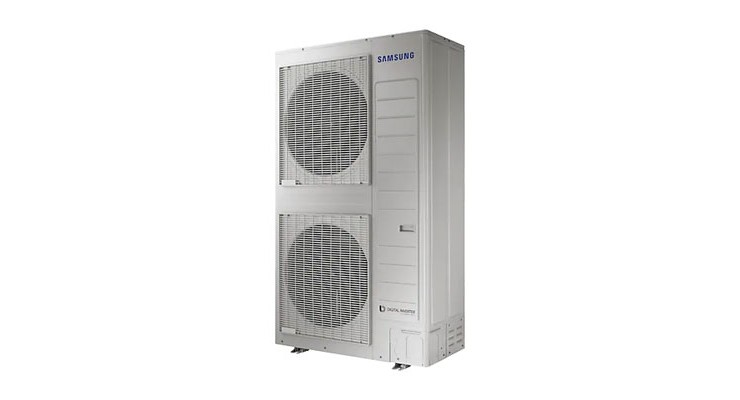

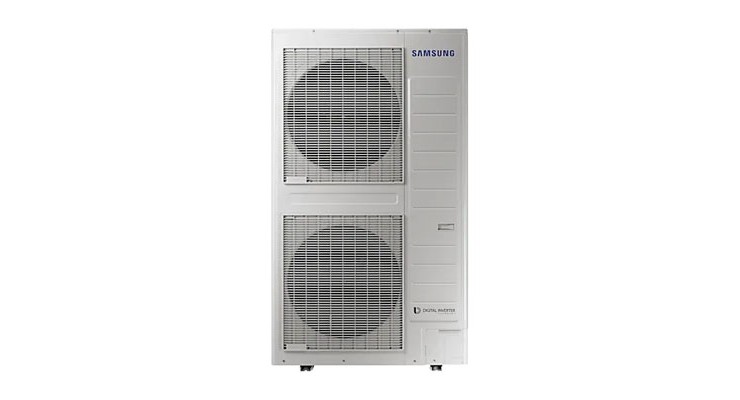

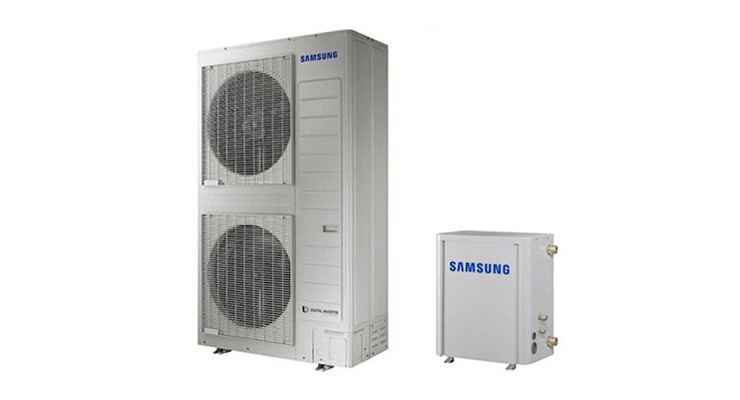

Three-phase DVM System Samsung AM140BXMDGH/EU + AM500FNBDEH/EU
In stock
14,265.05 €
- Cooling
40.00 kW - Heating
45.00 kW - EER
3.78 - COP
4.55 - Noise
62 dB
Buy with
| Technical Specifications for Three-phase DVM System Samsung AM140BXMDGH/EU | ||
|---|---|---|
| Model (Outdoor unit) | AM140BXMDGH/EU | |
| Power Supply | Φ/#/V/Hz | 3 / 4 / 380-415 / 50 |
| HP | 14.00 | |
| Capacity Cooling | kW | 40.00 |
| Capacity Heating | kW | 45.00 |
| Maximum number of connectable indoor units | ea | 26 |
| Total capacity of the connected indoor units (Min./Max.) | kW | 20.0 / 52.0 |
| Power Input Cooling | kW | 10.59 |
| Power Input Heating | kW | 9.88 |
| Current Input Cooling | A | 16.48 |
| Current Input Heating | A | 15.55 |
| Current (MCA) | A | 32.00 |
| Current (MFA) | A | 40.00 |
| EER1 Cooling | W/W | 3.78 |
| COP1 Heating | W/W | 4.55 |
| SEER1 | W/W | 6.83 |
| Compressor (Type) | Scroll Inverter | |
| Compressor (Output) | kW × n | 6.39 x 1 |
| Oil (Type) | PVE | |
| Oil (Initial Charge) | cc | 1,100 |
| Fan (Type) | Propeller / BLDC | |
| Air Flow | m3/min | 180 |
| External Static Pressure | Pa | 29.4 |
| Liquid Pipe | ø, mm | 12.70 |
| Gas Pipe | ø, mm | 28.58 |
| Piping length (ODU-IDU) (Max./Equiv.)3 | m | 160 (185) |
| Piping length (1st Branch-IDU) (Max.)3 | m | 40 |
| Total piping length (System) (Max.) | m | 300 |
| Level Difference (Outdoor in highest position) (Max.) | m | 50 |
| Level Difference (Indoor in highest position) (Max.) | m | 40 |
| Level difference (IDU-IDU) (Max.)3 | m | 50 |
| Wiring Connections (Communication) | Min. (mm2) | 0.75 |
| Remark (-) | F1, F2 | |
| Refrigerant | R410A | |
| Factory Charging | kg / tCO2e | 4.8 / 10.02 |
| Sound Pressure2 (Cooling / Heating) | dB(A) | 62 / 64 |
| Sound Power2 | dB(A) | 79 |
| Weight | kg | 162 |
| Dimensions (W x H x D) | mm | 940 x 1630 x 460 |
| Operating Temperature (Cooling) | °C | -5 ~ 52 |
| Operating Temperature (Heating) | °C | -25 ~ 24 |
Notes:
1Performances are based on the following test conditions:
- Cooling: Indoor temperature: 27°C DB, 19°C WB
Outdoor temperature: 35°C DB, 24°C WB - Heating: Indoor temperature: 20°C DB, 15°C WB
Outdoor temperature: 7°C DB, 6°C WB - Equivalent refrigerant piping: 7.5 m, Level differences:0 m
2Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ according to operating conditions. Sound power level is an absolute value that a sound source generates.
3ODU: Outdoor Unit,
IDU: Indoor Unit
| Technical Specifications for Hydro Module Samsung AM500FNBDEH/EU | ||
|---|---|---|
| Model (Indoor unit) | AM500FNBDEH/EU | |
| Power Supply | Φ/#/V/Hz | 1Φ/2/220–240/50 |
| Capacity Cooling | kW | 44.8 |
| Capacity Heating | kW | 50.4 |
| Power Input Cooling | kW | 0.01 |
| Power Input Heating | kW | 0.01 |
| Current Input Cooling | A | 0.05 |
| Current Input Heating | A | 0.05 |
| MCA (Including External Contact) | 2.2 | |
| MFA | A | 2.75 |
| Heat Exchanger Type | PHE | |
| Heat Exchanger Quantity | 1 | |
| Heat Exchanger Pipe Size | ø, inch | PT 1 1/4 (32A) |
| Heat Exchanger Water Flow Rate | l/min | 150 |
| Heat Exchanger Flow Switch | l/min | 50 |
| Piping Connections Liquid | ø, mm | 12.70 |
| ø, inch | 1/2 | |
| Piping Connections Gas | ø, mm | 28.58 |
| ø, inch | 11/8 | |
| Refrigerant Type | R410A | |
| Refrigerant Control Method | EEV | |
| Sound Pressure | dB(A) | 31 |
| Net Weight | kg | 40 |
| Net Dimensions (W × H × D) | mm | 518 x 627 x 330 |
| Operating Temperature (Cooling) | ˚C | -5 ~ 48 |
| Operating Temperature (Heating) | ˚C | -20 ~ 35 |
| Hot Water (Main Cooling, HR) | ˚C | -20 ~ 35 (43) |
| Leaving Water (Cooling) | ˚C | 5 ~ 30 |
| Leaving Water (Heating) | ˚C | 20 ~ 50 |
| Manufacturer | Samsung |
| Type | Central air conditioning |
| Technology | Inverter |
| Series | DVM S Eco |
| Outdoor Unit | AM140BXMDGH/EU |
| Power supply (V/ø/Hz) | 380-415 / 3 / 50 |
| Cooling Capacity (kW) | 40.00 |
| Heating Capacity (kW) | 45.00 |
| EER (Energy Efficiency in Cooling) | 3.78 |
| COP (Energy Efficiency in Heating) | 4.55 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 62 / 64 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 79 / 79 |
| Air Flow Outdoor Unit (m3/min) | 180 |
| Dimensions - Outdoor Unit WxHxD (mm) | 940 x 1630 x 460 |
| Weight - Outdoor Unit (kg) | 162 |
| Piping Connections - Liquid/Gas (mm) | 12.70 / 28.58 |
| Maximum Pipe Lenght (m) | 160 |
| Maximum Height Difference Between Indoor Units (m) | 50 |
| Operation Range - Cooling (°C) | -5 ~ 52 |
| Operation Range - Heating (°C) | -25 ~ 24 |
| Refrigerant (type) | R410A |
