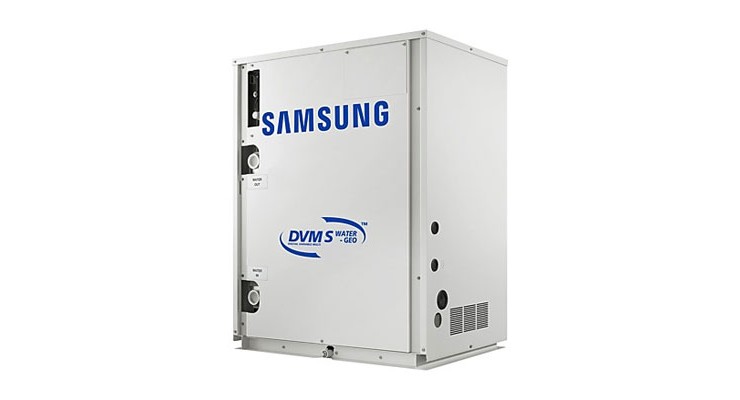

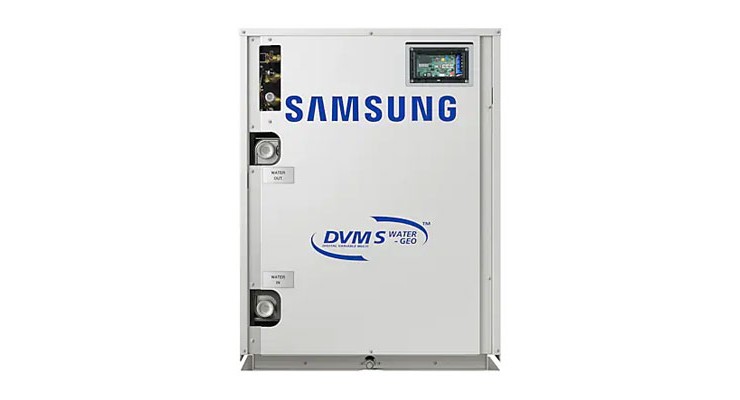

Three-phase DVM System Samsung AM080MXWANR/EU
- Cooling
22.40 kW - Heating
25.20 kW - EER
6.10 - COP
6.35 - Noise
48 dB
| Model | AM080MXWANR/EU | |
| Power Supply | Φ/#/V/Hz | 3 / 4 / 380-415 / 50 |
| HP | 8 | |
| Capacity Cooling | kW | 22.40 |
| Capacity Heating | kW | 25.20 |
| Maximum number of connectable indoor units | ea | 14 |
| Total capacity of the connected indoor units (Min./Max.) | kW | 11.20 / 29.10 |
| Power Input Cooling | kW | 3.67 |
| Power Input Heating | kW | 3.97 |
| Current Input Cooling | A | 5.9 |
| Current Input Heating | A | 6.4 |
| Current (MCA) | A | 16.1 |
| Current (MFA) | A | 20 |
| EER1 Cooling | W/W | 6.10 |
| COP1 Heating | W/W | 6.35 |
| Compressor (Type) | Inverter Scroll | |
| Oil (Type) | PVE | |
| Oil (Initial Charge) | cc | 3,900 |
| Condenser (Type) | Plate Heat Exchanger | |
| Pipe Size | ø/inch | PT11/4 |
| Pressure Drop | kPa | 22 |
| Water Flow Rate | l/min | 80 |
| Max. Pressure | MPa | 1.96 |
| Liquid Pipe | ø, mm | 9.52 |
| Gas Pipe | ø, mm | 19.05 |
| Piping length (ODU-IDU) (Max.) | m | 170 |
| Piping length (1st Branch-IDU) (Max.) | m | 90 |
| Total piping length (System) (Max.) | m | 500 |
| Level difference (IDU-IDU) (Max.) | m | 50 |
| Refrigerant | R410A | |
| Factory Charging | kg / tCO2e | 5.5 / 11.48 |
| Sound Pressure2 (Cooling / Heating) | dB(A) | 48 / 51 |
| Sound Power | dB(A) | 70 |
| Weight | kg | 160 |
| Dimensions (W x H x D) | mm | 770 x 1000 x 545 |
| Operating Temperature (Cooling) | °C | 10 ~ 45 |
| Operating Temperature (Heating) | °C | 10 ~ 45 |
Notes:
1Performances are based on the following test conditions:
- Cooling: Indoor temperature: 27°C DB, 19°C WB
Inlet water temperature: 30 °C - Heating: Indoor temperature: 20°C DB, 15°C WB
Inlet water temperature: 20 °C - Equivalent refrigerant piping: 7.5 m, Level differences:0 m
2Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ according to operating conditions. Sound power level is an absolute value that a sound source generates.
3ODU: Outdoor Unit,
IDU: Indoor Unit
| Manufacturer | Samsung |
| Type | Central air conditioning |
| Technology | Inverter |
| Series | DVM S Water |
| Outdoor Unit | AM080MXWANR/EU |
| Power supply (V/ø/Hz) | 380-415 / 3 / 50 |
| Cooling Capacity (kW) | 22.40 |
| Heating Capacity (kW) | 25.20 |
| EER (Energy Efficiency in Cooling) | 6.10 |
| COP (Energy Efficiency in Heating) | 6.35 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 48 / 51 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 70 |
| Dimensions - Outdoor Unit WxHxD (mm) | 770 x 1000 x 545 |
| Weight - Outdoor Unit (kg) | 160 |
| Piping Connections - Liquid/Gas (mm) | 9.52 / 19.05 |
| Maximum Pipe Lenght (m) | 170 |
| Maximum Height Difference Between Indoor Units (m) | 50 |
| Operation Range - Cooling (°C) | 10 ~ 45 |
| Operation Range - Heating (°C) | 10 ~ 45 |
| Refrigerant | R410A |
