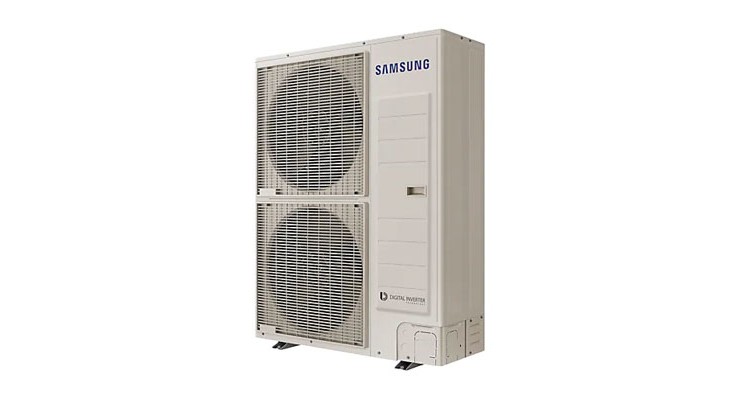

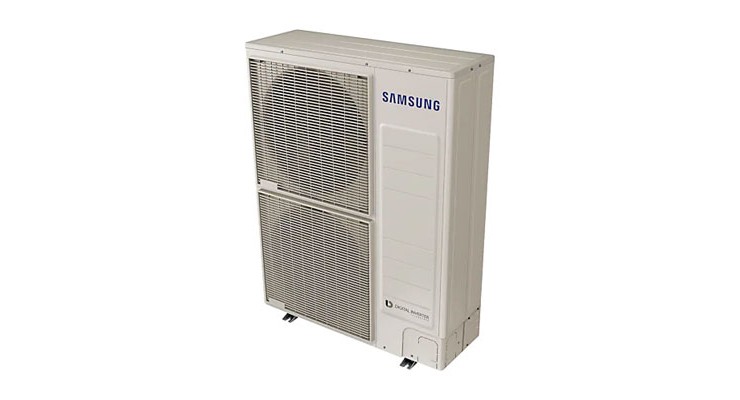

Three-phase DVM System Samsung AM080FXMDGH/EU
Three-phase DVM System Samsung AM080FXMDGH/EU
Three-phase DVM System Samsung AM080FXMDGH/EU
Three-phase DVM System Samsung AM080FXMDGH/EU
Three-phase DVM System Samsung AM080FXMDGH/EU
Three-phase DVM System Samsung AM080FXMDGH/EU

Three-phase DVM System Samsung AM080FXMDGH/EU

  • Cooling
    22.40 kW
  • Heating
    25.00 kW
  • EER
    3.92
  • COP
    5.12
  • Noise
    56 dB

Technical Specifications for Three-phase DVM System Samsung AM080FXMDGH/EU
Technical Specifications for Three-phase DVM System Samsung AM080FXMDGH/EU
Model (outdoor unit)AM080FXMDGH/EU
Model AM080FXMDGH/EU
Power Supply Φ/#/V/Hz 3 / 4 / 380-415 / 50
HP 8
Capacity Cooling kW 22.40
Capacity Heating kW 25.00
Maximum number of connectable indoor units ea 13.0
Total capacity of the connected indoor units (Min./Max.) kW 11.20 / 29.10
Power Input Cooling kW 5.72
Power Input Heating kW 4.88
Current Input Cooling A 9.66
Current Input Heating A 8.24
Current (MCA) A 18.0
Current (MFA) A 25
EER1 Cooling W/W 3.92
COP1 Heating W/W 5.12
SEER1 W/W 9.22
Compressor (Type) Inverter Scroll
Oil (Type) PVE
Oil (Initial Charge) cc 2,800
Fan (Type) Propeller / BLDC
Air Flow m3/min 135
External Static Pressure Pa 29.40
Liquid Pipe ø, mm 9.52
Gas Pipe ø, mm 19.05
Piping length (ODU-IDU) (Max.) m 100
Piping length (1st Branch-IDU) (Max.) m 40
Total piping length (System) (Max.) m 300
Level difference (IDU-IDU) (Max.) m 30
Refrigerant R410A
Factory Charging kg / tCO2e 3.7 / 7.73
Sound Pressure2 (Cooling / Heating) dB(A) 56 / 58
Sound Power dB(A) 74
Weight kg 135
Dimensions (W x H x D) mm 940 x 1420 x 330
Operating Temperature (Cooling) °C -5 ~ 48
Operating Temperature (Heating) °C -20 ~ 24

Notes:

1Performances are based on the following test conditions:

  • Cooling: Indoor temperature: 27°C DB, 19°C WB
    Outdoor temperature: 35°C DB, 24°C WB
  • Heating: Indoor temperature: 20°C DB, 15°C WB
    Outdoor temperature: 7°C DB, 6°C WB
  • Equivalent refrigerant piping: 7.5 m, Level differences:0 m

2Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ according to operating conditions. Sound power level is an absolute value that a sound source generates.

3ODU: Outdoor Unit,
IDU: Indoor Unit

Manufacturer Samsung
Type Central air conditioning
Technology Inverter
Series DVM S Eco
Outdoor Unit AM080FXMDGH/EU
Power supply (V/ø/Hz) 380-415 / 3 / 50
Cooling Capacity (kW) 22.40
Heating Capacity (kW) 25.00
EER (Energy Efficiency in Cooling) 3.92
COP (Energy Efficiency in Heating) 5.12
Sound Pressure Outdoor Unit - Cooling/Heating dB(A) 56 / 58
Sound Power Outdoor Unit - Cooling/Heating dB(A) 74
Air Flow Outdoor Unit (m3/min) 135
Dimensions - Outdoor Unit WxHxD (mm) 940 x 1420 x 330
Weight - Outdoor Unit (kg) 135
Piping Connections - Liquid/Gas (mm) 9.52 / 19.05
Maximum Pipe Lenght (m) 100
Maximum Height Difference Between Indoor Units (m) 30
Operation Range - Cooling (°C) -5 ~ 48
Operation Range - Heating (°C) -20 ~ 24
Refrigerant R410A
