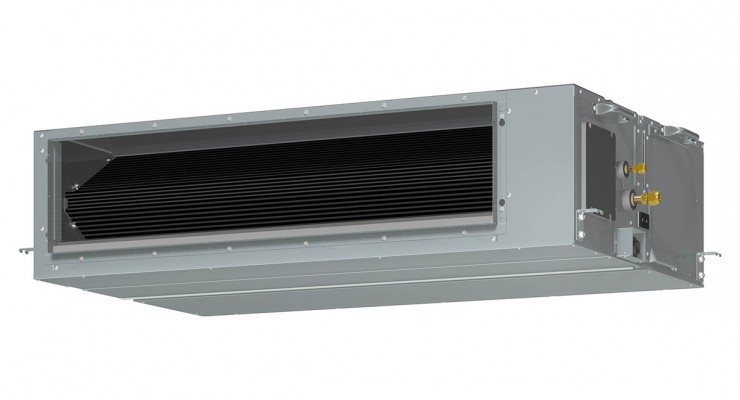

Three-phase duct-type inverter air conditioner Fujitsu Airstage ARXH90KHTA
- Cooling
22.00 kW - Heating
25.00 kW - EER
3.30 - COP
3.40 - Noise
37 dB
Lightweight and Compact Design
The indoor unit can be split into fan unit and heat exchanger unit. Split units can pass through a ventilation opening, helping to reduce installation time.
Easy To Transport
A handle has been added to the indoor unit to make it easier to carry.
Quiet Operation
The combination of a V-shaped heat exchanger, an air stabilizer, and a high-efficiency DC fan motor enables this compact unit to operate quietly.
Automatic Airflow Adjustment Function
The optimum airflow can be set automatically to facilitate faster installation.

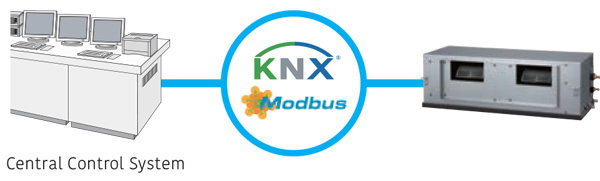

Link Up with a Variety of Central Control System (Option)
Centralized control including facilities and equipment in addition to air conditioning is possible by linking up with MODBUS, KNX interfaces.
| Manufacturer | Fujitsu Airstage |
| Type | Duct type air conditioners |
| Technology | Inverter |
| Series | KHTA |
| Indoor Unit | ARXH90KHTA |
| Outdoor Unit | AOEH90KRTA |
| Power supply (V/ø/Hz) | 400 / 3 / 50 |
| Capacity (BTU) | 90 000 BTU |
| Cooling Capacity (kW) | 22.0 (6.5 - 24.2) |
| Heating Capacity (kW) | 25.0 (6.5 - 26.0) |
| Power Input Cooling/Heating (kW) | 7.33 / 7.36 |
| EER (Energy Efficiency in Cooling) | 3.00 |
| COP (Energy Efficiency in Heating) | 3.40 |
| Maximum Current for Cooling / Heating (A) | 18.0 / 18.0 |
| Moisture Removal (l/h) | 6.1 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 44 / 42 / 40 / 37 |
| Sound Pressure Indoor Unit - Heating dB(A) | 44 / 42 / 40 / 37 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 61 / 64 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 4100 / 9600 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 4100 / 9600 |
| Static Pressure (Standart) | 60 to 200 (72) |
| Dimensions - Indoor Unit WxHxD (mm) | 1400 x 360 x 850 |
| Dimensions - Outdoor Unit WxHxD (mm) | 970 x 1418 x 370 |
| Weight - Indoor Unit (kg) | 69 |
| Weight - Outdoor Unit (kg) | 103 |
| Piping Connections - Liquid/Gas (mm) | 12.7 / 19.05 |
| Drain Pipe Diameter (mm) | 31 / 32 |
| Maximum Pipe Lenght (m) | 100 (40) |
| Maximum Height Difference (m) | 30 |
| Operation Range - Cooling (°C) | -15 ~ 50 |
| Operation Range - Heating (°C) | -20 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
