Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA

Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA

In stock
8,799.00 BGN
Tax included
  • Cooling
    14.00 kW
  • Heating
    16.00 kW
  • EER
    3.21 A
  • COP
    3.61 A
  • Noise
    37 dB


High efficiency turbo fan with 3-dimensional blade

Previous turbo fan: Air passing through the heat exchanger was
uneven and the air would only flow close to the ceiling.

Fuji Electric: New turbo fan: High efficiency airflow distribution has been achieved
by the introduction of a 3 dimensional blade which increases the air
passing over the heat exchanger.

Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA

Improvement of the airflow distribution

New louvre: The louvre design distributes air leaving a
space between the chassis and the ceiling allowing far
and wide airflow distribution.

Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA

Adjustment of hanger position is possible after installation

Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA

Low ambient operation

Three-phase cassette-type inverter air conditioner Fuji Electric RCG54LRLA
Manufacturer Fuji Electric
Type Cassette type air conditioners
Technology Inverter
Series LRL
Indoor Unit RCG54LRLA

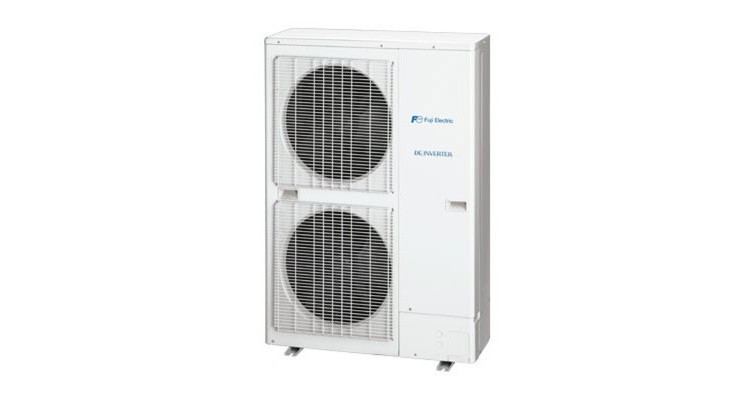

Outdoor Unit ROG54LATT
Power supply (V/ø/Hz) 400 / 3 / 50
Capacity (BTU) 54 000 BTU
Cooling Capacity (kW) 14.0 (5.4 - 16.0)
Heating Capacity (kW) 16.0 (5.8 - 18.0)
Power Input Cooling/Heating (kW) 4.36 / 4.43
EER (Energy Efficiency in Cooling) 3.21
COP (Energy Efficiency in Heating) 3.61
Energy Efficiency Class (Cooling) A
Energy Efficiency Class (Heating) A
Maximum Current for Cooling / Heating (A) 9.9 / 9.9
Moisture Removal (l/h) 5.0
Sound Pressure Indoor Unit - Cooling dB(A) 47 / 43 / 41 / 37
Sound Pressure Indoor Unit - Heating dB(A) 47 / 43 / 41 / 37
Sound Pressure Outdoor Unit - Cooling/Heating dB(A) 55 / 56
Air Flow Indoor / Outdoor Unit - Cooling (m3/h) 2000 / 6900
Air Flow Indoor / Outdoor Unit - Heating (m3/h) 2000 / 6900
Dimensions - Indoor Unit WxHxD (mm) 840 x 288 x 840
Dimensions - Outdoor Unit WxHxD (mm) 900 x 1290 x 330
Weight - Indoor Unit (kg) 26
Weight - Outdoor Unit (kg) 104
Piping Connections - Liquid/Gas (mm) 9.52 / 15.88
Drain Pipe Diameter (mm) 25 / 32
Maximum Pipe Lenght (m) 75
Maximum Height Difference (m) 30
Operation Range - Cooling (°C) -15 ~ 46
Operation Range - Heating (°C) -15 ~ 24
Refrigerant R410A
