Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA
Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA

Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA

In stock
6,929.00 BGN
Tax included
  • Cooling
    10.00 kW
  • Heating
    11.20 kW
  • SEER
    6.50 A++
  • SCOP
    4.30 A+
  • Noise
    33 dB


High efficiency turbo fan with 3-dimensional blade

Previous turbo fan: Air passing through the heat exchanger was
uneven and the air would only flow close to the ceiling.

Fuji Electric: New turbo fan: High efficiency airflow distribution has been achieved
by the introduction of a 3 dimensional blade which increases the air
passing over the heat exchanger.

Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA

Improvement of the airflow distribution

New louvre: The louvre design distributes air leaving a
space between the chassis and the ceiling allowing far
and wide airflow distribution.

Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA

Adjustment of hanger position is possible after installation

Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA

Low ambient operation

Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA
Manufacturer Fuji Electric
Type Cassette type air conditioners
Technology Inverter
Series LRL
Indoor Unit RCG36LRLA

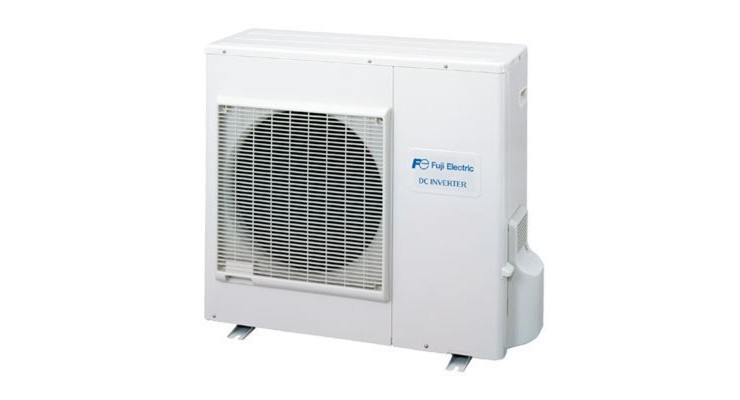

Outdoor Unit ROG36LATT
Power supply (V/ø/Hz) 400 / 3 / 50
Capacity (BTU) 36 000 BTU
Cooling Capacity (kW) 10.0 (4.7 - 11.4)
Heating Capacity (kW) 11.2 (5.0 - 14.0)
Power Input Cooling/Heating (kW) 2.44 / 2.56
Pdesign Cooling/Heating (-10°C) (kW) 10.0 / 10.0
EER (Energy Efficiency in Cooling) 4.10
COP (Energy Efficiency in Heating) 4.38
SEER (Seasonal Cooling Efficiency) 6.50
SCOP (Seasonal Heating Efficiency) 4.30
Energy Efficiency Class (Cooling) A++
Energy Efficiency Class (Heating) A+
Maximum Current for Cooling / Heating (A) 7.9 / 7.9
Moisture Removal (l/h) 3.0
Sound Pressure Indoor Unit - Cooling dB(A) 44 / 39 / 36 / 33
Sound Pressure Indoor Unit - Heating dB(A) 44 / 39 / 36 / 33
Sound Pressure Outdoor Unit - Cooling/Heating dB(A) 51 / 53
Sound Power Indoor Unit - Cooling/Heating dB(A) 58 / 58
Sound Power Outdoor Unit - Cooling/Heating dB(A) 67 / 69
Air Flow Indoor / Outdoor Unit - Cooling (m3/h) 1800 / 6200
Air Flow Indoor / Outdoor Unit - Heating (m3/h) 1800 / 6200
Dimensions - Indoor Unit WxHxD (mm) 840 x 288 x 840
Dimensions - Outdoor Unit WxHxD (mm) 900 x 1290 x 330
Weight - Indoor Unit (kg) 26
Weight - Outdoor Unit (kg) 104
Piping Connections - Liquid/Gas (mm) 9.52 / 15.88
Drain Pipe Diameter (mm) 25 / 32
Maximum Pipe Lenght (m) 75
Maximum Height Difference (m) 30
Operation Range - Cooling (°C) -15 ~ 46
Operation Range - Heating (°C) -15 ~ 24
Refrigerant R410A
