Samsung WindFree AC140RN4PKG/EU - AC140RXADKG/EU Cassette Type Inverter Air Conditioner with 360° Air Flow
In stock
4,105.16 €
- Cooling
13.40 kW - Heating
15.50 kW - SEER
6.40 A++ - SCOP
4.10 A+ - Noise
37 dB
Buy with
Circular air flow
Unlike traditional 4-Way Cassette units1, which create areas of uneven airflow2, the 360 Cassette reaches every single corner of a room or space. Its circular outlet blows cool air in every direction. The bladeless design keeps things comfortably cool without creating a cold draft3, and without blades blocking the airfl ow it sends 25 % more air even further1.
1 Samsung testing compares the 360° Cassette to a conventional 4-Way Cassette type air conditioner.
2 The temperature difference is less than 0.6°C within a 9.3 m radius.
3 No cold draft between 0–1.5 m in height (with a 14.0 kW indoor unit) within a 5 m radius.
Airflow Control
The air supply is easily adjusted without the use of flaps. Three booster fans work to alter the direction of airflow from within the cassette’s hollow space. A rain-like distribution of the air (known as the ‘coanda’effect) keeps the room cool and comfortable at all times. The innovative technology overcomes the usual limits of the conventional outlets that use blades, as they obstruct the air at low angles and cause asignificant low airflow1. The Motion Detector Sensor (MDS) is available for the 360 Cassette.
1 Based on internal testing compared to a general 4-Way Cassette air conditioner.
*Not all features are available for all models.
Circular LED display

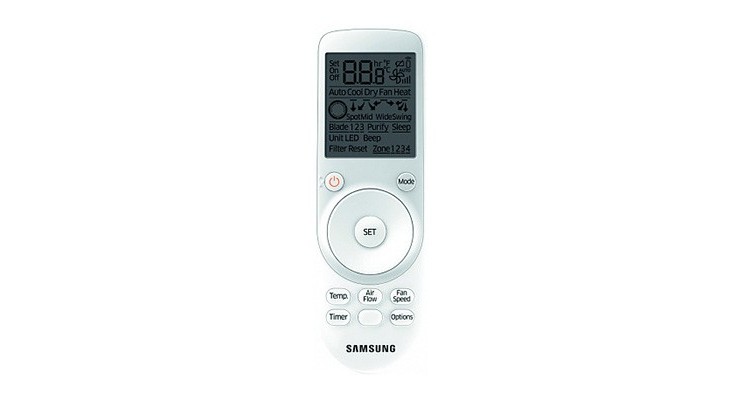

The unit features a stylish panel and an intuitive Circular LED display, which allows users to choose or adjust the direction of the airfl ow with an intuitive wireless (jog shuttle) wireless remote controller. Besides the LED Display also monitors other essential operating information, such as the filter the air flow direction, fi lter status and any errors. So, with just one glance, you can quickly tell where the air is going and how your 360 Cassette is performing.
Stylish design

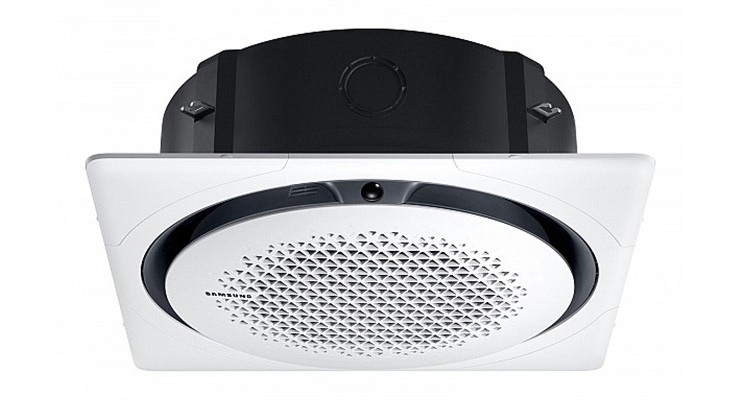

The 360 Cassette has an innovative circular design that enables it to match a multitude of interior designs, that adds a touch of style to any room. Its minimalist and elegant styling can help to create a sophisticated and distinctive look in many different sites. With a circular panel, it can fi t into a very tiny ceiling space of just 225 mm1, so it gives you much greater fl exibility as it can be installed in a wider choice of locations. The 360 Cassette is available in black or white, in a square or circular design, and can be fi tted within the ceiling or exposed on any material.
| Manufacturer | Samsung |
| Type | Cassette type air conditioners |
| Technology | Inverter |
| Indoor Unit | AC140RN4PKG/EU |

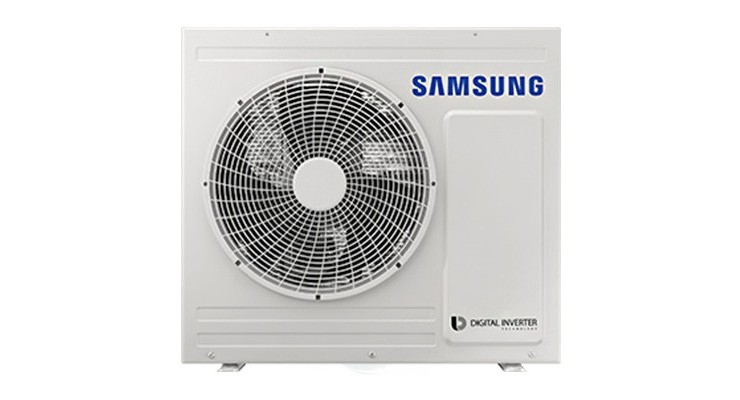

| Outdoor Unit | AC140RXADKG/EU |
| Power supply (V/ø/Hz) | 220-240 / 1 / 50 |
| Capacity (BTU) | 48 000 BTU |
| Cooling Capacity (kW) | 13.40 (3.50 ~ 15.50) |
| Heating Capacity (kW) | 15.50 (3.50 ~ 18.00) |
| Power Input Cooling/Heating (kW) | 4.76 / 4.62 |
| EER (Energy Efficiency in Cooling) | 2.81 |
| COP (Energy Efficiency in Heating) | 3.35 |
| SEER (Seasonal Cooling Efficiency) | 6.40 |
| SCOP (Seasonal Heating Efficiency) | 4.10 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ |
| Sound Pressure Indoor Unit - Heating dB(A) | 37 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 53 / 54 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 61 / 61 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 69 / 69 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | - |
| Dimensions - Indoor Unit WxHxD (mm) | 947 x 281 x 947 |
| Panel size WxHxD (mm) | Round panel: 1050 x 66 x 1050 Square panel: 1000 x 66 x 1000 |
| Dimensions - Outdoor Unit WxHxD (mm) | 940 x 1210 x 330 |
| Weight - Indoor Unit (kg) | 25.5 |
| Weight - Outdoor Unit (kg) | 91.5 |
| Piping Connections - Liquid/Gas (mm) | 9.52 / 15.88 |
| Maximum Pipe Lenght (m) | 75 |
| Maximum Height Difference (m) | 35 |
| Operation Range - Cooling (°C) | -15 ~ 50 |
| Operation Range - Heating (°C) | -20 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
