Samsung EHS Split AE090RNYDEG/EU / AE040RXEDEG/EU A2W Heat Pump
Samsung EHS Split AE040RXEDEG/EU + AE200RNWSEG/EU A2W Heat Pump
Samsung EHS Split AE040RXEDEG/EU + AE200RNWSEG/EU A2W Heat Pump
Samsung EHS Split AE090RNYDEG/EU / AE040RXEDEG/EU A2W Heat Pump
Samsung EHS Split AE040RXEDEG/EU + AE200RNWSEG/EU A2W Heat Pump
Samsung EHS Split AE040RXEDEG/EU + AE200RNWSEG/EU A2W Heat Pump

Samsung EHS Split AE040RXEDEG/EU + AE260RNWSEG/EU A2W Heat Pump

In stock
12,492.00 BGN
Tax included
  • Cooling
    5.00 kW
  • Heating
    4.40 kW
  • EER
    4.59
  • COP
    5.20
  • Noise
    44 dB

  • Integrated solution for heating and domestic hot water.
  • 4-step quiet operation mode (down to 35 db(A)*).
  • Compact unit size with large water tank (200 L & 260 L).
  • Backup heater is included to ensure a minimum water temperature.

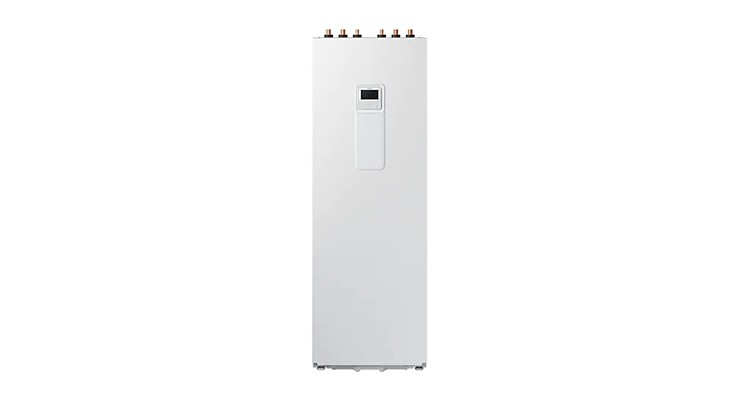

Indoor UnitAE260RNWSEG/EU
Outdoor UnitAE040RXEDEG/EU

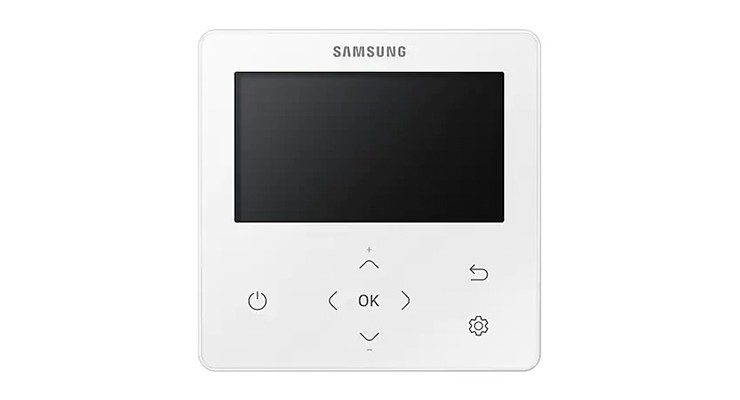

ControllerMWR-WW10N
Operation Nominal Capacity Heating A7/W35¹ / A7/W55² kW 4.4/3.9
Cooling A35/W18¹ kW 5,0
Power Input (Nominal) Heating A7/W35¹ / A7/W55² kW 0.85/1.32
Cooling A35/W18¹ kW 1,09
COP (Nominal Heating) A7/W35¹ / A7/W55² W/W 5.20/2.95
EER (Nominal Cooling) A35/W18¹ W/W 4,59
SCOP LWT 35°C/ 55°C W/W 4.58/3.25
Seasonal space heating enr.effi ciency ηs LWT 35°C/ 55°C ETA% 180/127
Average Seasonal space heating eff. class ** LWT 35°C/ 55°C - A+++ / A++
Current MCA A 16,00
MFA A 20,00
Leaving Water Temperature³ Heating °C 15~65
Cooling °C 5~25
Functions Smart Grid Ready / PV Enabled -
4-Step Quiet Mode -
2-zone Control -
Tank Integrated Hydro Unit
Power Supply Φ, #, V, Hz 1Ф, 2, 220~240 V, 50 Hz 1Ф
Water Tank Volume Liters 260
Declared Load Profile L/XL XL
Average water heating efficiency ŋwh ETA% 123
Average Energy Efficiency Class - A+
Heater Back-up heater Capacity Default (Option) kW 2 (4/6)
Sound Sound Pressure4 Heating Std dB(A) 26
Cooling Std dB(A) 26
Sound Power Heating Std dB(A) 40
Piping Water pipe (Space Heating) Inlet/Outlet Φ, mm 28/28
Water pipe (DHW) Inlet/Outlet Φ, mm 22/22
Dimensions Net Weight kg 146
Net Dimensions (WxHxD) mm 595 x 1 800 x 700
Outdoor Unit
Power Supply Φ, V, Hz 1Ф, 220~240 V, 50 Hz
Compressor Тип - BLDC twin rotary
Base Heater Капацитет kW -
Sound Sound Pressure4 Heating Std dB(A) 44
Cooling Std dB(A) 46
Night Mode dB(A) <35
Sound Power Heating Std dB(A) 58
Dimensions Net Weight kg 46,5
Net Dimensions (WxHxD) mm 880 x 638 x 310
Refrigerant Type R32
Factory Charging tCO₂e 0,81
kg 1,2
Piping Piping Connections Liquid Pipe Φ, mm (inch) 6,35 (1/4")
Gas Pipe Φ, mm (inch) 15,88 (5/8")
Piping length (ODU-IDU)5 Max.[Equiv.] m 30,00
Level difference (IDU-IDU)5 Max. m 20,00
Operation Ambient Temperature Heating °C -25~35
Cooling °C 10~46
DHW °C -25~43

* 35dB(A) is only applicable for 6kW and 9kW outdoor units down to +4°C stated in 3 m distance in an anechoic environment.

**A+++ energy label is available according to EU No. 811/2013 label classifi cation 2019, on a scale from D to A+++

  1. A2W Condition : (Heating) Water In/Out 30℃/35℃, Outdoor Air 7℃[DB]/6℃[WB]; (Cooling) Water In/Out 23℃/18℃, Outdoor Air 35℃[DB].
  2. A2W Condition : (Heating) Water In/Out 47℃/55℃, Outdoor Air 7℃[DB]/6℃[WB].
  3. 65°C down to +10°C (max. 60°C down to -5°C)
  4. Sound pressure level is obtained in an anechoic room. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ depending on operation conditions.
  5. ODU : Outdoor Unit, IDU : Indoor Unit
Manufacturer Samsung
Type Heat pumps
Technology Inverter
Series EHS Split
Outdoor Unit AE040RXEDEG/EU
Power supply (V/ø/Hz) 230 / 1 / 50
Cooling Capacity (kW) 5.00
Heating Capacity (kW) 4.40
Power Input Cooling/Heating (kW) 1.09 / 0.85
EER (Energy Efficiency in Cooling) 4.59
COP (Energy Efficiency in Heating) 5.20
Dimensions - Outdoor Unit WxHxD (mm) 880 x 638 x 310
Weight - Outdoor Unit (kg) 46.5
Operation Range - Cooling (°C) 10 ~ 46
Operation Range - Heating (°C) -25 ~ 35
Refrigerant R32
