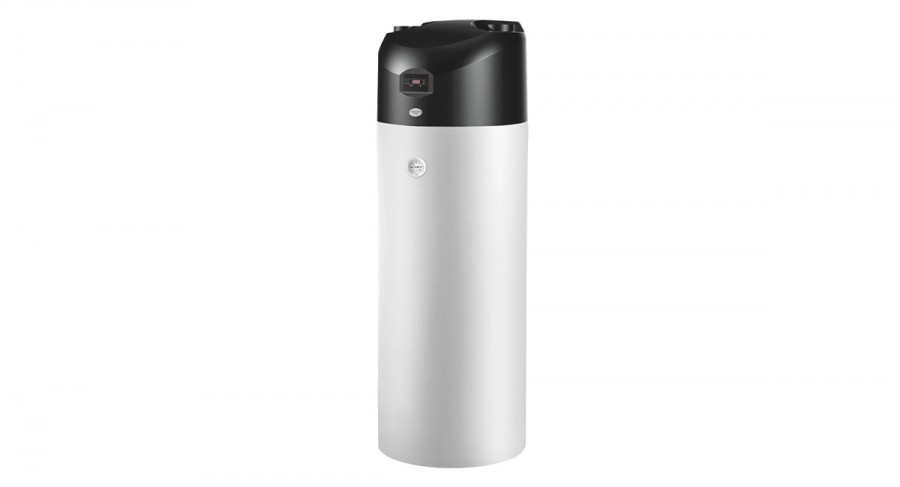

Panasonic Aquarea DHW PAW-DHWM200ZC Floor-standing Boiler
In stock
1,199.00 €
1,499.00 €
-300.00 €
Buy with
| Technical specifications for Panasonic Aquarea DHW PAW-DHWM200ZC Heat Pump | |||
|---|---|---|---|
| Model name | PAW-DHWM200ZC | ||
| Volume | L | 200 | |
| Dimensions of Connections | |||
| Height / with air ducts | mm | 1.540 / 1.680 | |
| Diameter | mm | 660 | |
| Connections to the water supply network | G 1 | ||
| Dimensions of air ducts | mm/m | Ø150/10 | |
| Net weight / with water | kg | 120 / 320 | |
| Heat Pump | |||
| Nominal electrical power | W | 620 | |
| Heating up period A7 / W10-551 | 7:22 h | ||
| Heating up period A15 / W10-552 | – | ||
| Energy consumption in heating up period A7 / W10-551 | kWh | 3,25 | |
| Energy consumption in heating up period A15 / W10-552 | kWh | – | |
| Reference tapping cycle | L | ||
| Energy consumption by chosen cycle A7 / W10-551 | kWh | 4,90 | |
| Energy consumption by chosen cycle A15 / W10-552 | kWh | – | |
| COP DHW (A7 / W10-55) EN 161471 | 2,60 | ||
| COP DHW (A15 / W10-55) EN 161472 | – | ||
| COP EN 255-3 | 4,20 | ||
| Maximum amount of usable water (minimum 40°C)1 | L | 252,08 | |
| Standby power input according to EN16147 | W | 47 | |
| Sound power / Sound Pressure on 1m | dB / dB(A) | 56,7 / 44,0 | |
| Refrigerant | R134a | ||
| Quantity of refrigerant | g | 780 | |
| Operating range - air temperature | °C | +7 / +35 | |
| Nominal air flow rate (Maximum) | m3/h | 480 | |
| Pressure drop by 150 m3/h (60%/80%)4 (Maximum) | Pa | 90 | |
| Maximum temperature / Anti legionella program | °C | 55 / 65 | |
| Voltage / Frequency | V / Hz | 230 / 50 | |
| Maximum power consumption | W | 620 | |
| Storage Tank | |||
| Enamelled steel tank / Protective magnesium anode | + / + | ||
| Average insulation thickness | mm | 57 | |
| Degree of protection | IP 21 | ||
| Heat Exchanger - Bottom / Top | |||
| Connection | G 1 / – | ||
| Exchanger area | m2 | 1,05 / – | |
| Volume | L | 6,6 / – | |
| Heating Power3 | kW | 25,8 / – | |
| Electrical Specifications | |||
| Working pressure (Storage tank / Heat Exchanger) | 1,0 (10) / 1,2 (12) | ||
| Maximum Temperature | |||
| Storage tank / Heat Exchanger | 85 / 85 | ||
| Option | |||
| Installation of an electrical heater to the connecting bushing G 6/4 | + | ||
| Transport Data | |||
| Packaging dimensions | 750 x 750 x 1.700 mm | ||
Notes:
- Heating of sanitary water up to 55°C with inlet air temperature at 7°C, humidity at 89% and inlet water temperature at 10°C. According to EN16147.
- Heating of sanitary water up to 55°C with inlet air temperature at 15°C, humidity at 74% and inlet water temperature at 10°C. According to EN16147.
- Heating of sanitary water from 10°C up to 45°C with the inlet temperature of heating medium at 80°C and with flow rate 3000 l/h.
- Normal fan speed 60%, higher fan speed - special setting on 80%.
- When connected as pressurised, use of safety valve is mandatory.
| Manufacturer | Panasonic |
| Type | Heat pumps |
| Series | Aquarea |
| Indoor Unit | PAW-DHWM200ZC |
| Power supply (V/ø/Hz) | 220-240 / 1 / 50 |
| Power Input Cooling/Heating (kW) | - / 0.62 |
| COP (Energy Efficiency in Heating) | 4.20 |
| Sound Pressure Indoor Unit dB(A) | 44 |
| Sound Power Indoor Unit dB(A) | 56,7 |
| Dimensions - Indoor Unit WxHxD (mm) | 750 x 1700 x 750 |
| Weight - Indoor Unit (kg) | 120 |
| Capacity water tank (L) | 200 |
| Refrigerant (type) | R134A |
| Refrigerant - factory charge (kg) | 0.78 |
