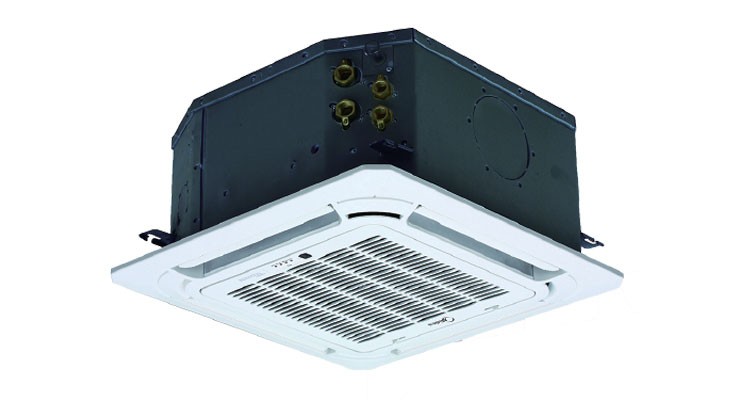

Midea MKD-400 Тwo Pipe Compact Four Way Cassette

Midea MKD-400 Тwo Pipe Compact Four Way Cassette

  • Cooling
    3.70 kW
  • Heating
    5.10 kW
  • Noise
    32 dB

+35932 390 107
or
SEND INQUIRY


The Midea MKD-400 Тwo Pipe Compact Four Way Cassette delivers high heating and cooling power, offering a modern and stylish design. The cartridge achieves low noise levels and high efficiency thanks to the DC inverter motor. The built-in condensate pump raises the condensation up to 500mm. The fan coil also has a vent for fresh air outside the room.

Features

  • 360° air supply panel is standard.
  • Fresh air intake, also supply to side room.
  • BuiltS-in PCB and drain pump with pump head-500mm.
  • Remote controller with LED display is standard, wired controller is optional.
  • Safety grill for safety maintenance.
  • Optional extended drainage pan for protecting your ceiling better.
  • Compatible with 0-10V control function.
  • Available for 2/4 pipe system.
  • EAH is optional (for 2-Pipe Compact 4-Way Cassette).
Technical Specifications for Midea MKD-400 Two Pipe Cassette Type Fan Coil
ModelMKD-400
Power supply V/Ph/Hz 220-240 / 1 / 50
Air flow (H/M/L) m3/h 680 / 580 / 480
CFM 400 / 340 / 280
Cooling Capacity (H/M/L) kW 3.7 / 3.18 / 2.66
Water flow rate L/h 642
Water pressure drop kPa 15
Heating Capacity (H/M/L) kW 5.1 / 4.3 / 3.83
Water pressure drop kPa 13
Power input (H/M/L) W 70 / 50 / 40
Auxiliary electric heater (AEH) W 1000
Sound pressure level (H/M/L) dB(A) 42 / 39 / 32
Fan motor Type Low noise 3-speed fan motor
Quantity 1
Fan Type Centrifugal, forward-curved blades
Quantity 1
Coil Row 2
Max. working pressure MPa 1.6
Diameter mm φ7
Panel Net dimensions (W х H х D) mm 647 x 50 x 647
Packing size (W х H х D) mm 715 x 123 x 715
Net weight kg 2.5
Gross weight kg 4.5
Body Net dimensions (W х H х D) mm 575 x 261 x 575
Packing size (W х H х D) mm 670 x 290 x 670
Net weight kg 16.5
Gross weight kg 20
Pipe connections Water inlet / outlet pipe inch G3/4
Drain pipe mm ODφ25
Manufacturer Midea
Type Fan Coil
Indoor Unit MKD-400
Power supply (V/ø/Hz) 230 / 1 / 50
Cooling Capacity (kW) 3.70
Heating Capacity (kW) 5.10
Power Input Cooling/Heating (kW) 0.07 / 0.07
Dimensions - Indoor Unit WxHxD (mm) 575 x 261 x 575
Weight - Indoor Unit (kg) 16.5
