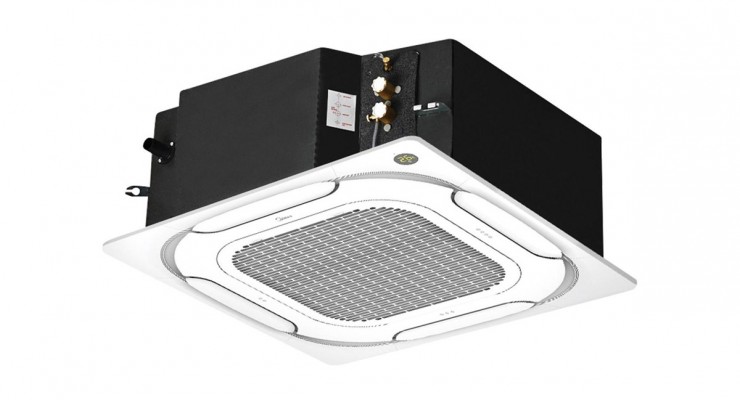

Midea MKA-1200RA Two Pipe Cassette Type Fan Coil
- Cooling
7.07 kW - Heating
8.02 kW - Noise
40 dB
Midea MKA-1200RA Two Pipe Cassette Type Fan Coil delivers high heating and cooling power while delivering a modern and stylish design. The cartridge achieves low noise levels and high efficiency thanks to the DC inverter motor. The built-in condensate pump is powerful enough to lift the condensate up to 750mm. The fan coil also has a vent for fresh air outside the room.
Features:
- 4-way air supply panel as standard, new 360°air supply panel is optional.
- Fresh air intake, also supply to side room.
- Built-in PCB and drain pump with pump head-750mm.

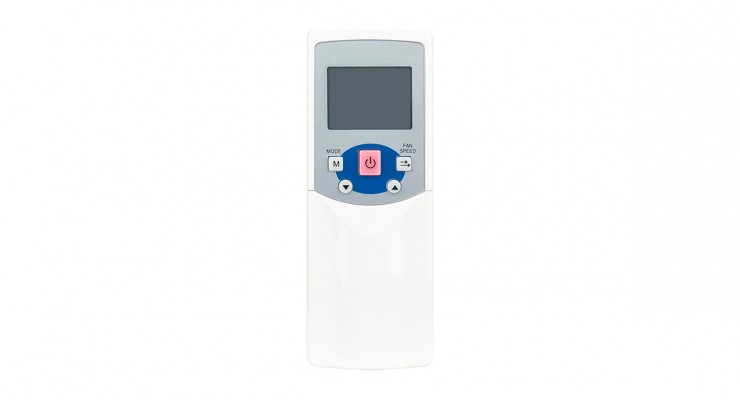

- Remote controller with LED display is standard, wired controller is optional.
- Safety grill for safety maintenance.
- Optional extended drainage pan for protecting your ceiling better.
- Compatible with 0-10V control function.
- Available for 2/4 pipe system.
- EAH is optional (for 2-Pipe 4-Way Cassette).
| Technical Specifications for Midea MKA-1200RA Two Pipe Cassette Type Fan Coil | |||
|---|---|---|---|
| Model | MKA-1200RA | ||
| Power supply | V/Ph/Hz | 220-240 / 1 / 50 | |
| Air flow (H/M/L) | m3/h | 1606 / 1276 / 1059 | |
| CFM | 945 / 751 / 623 | ||
| Cooling1 | Capacity (H/M/L) | kW | 7.07 / 6.38 / 6.02 |
| Water flow rate | m³/h | 1.27 / 1.15 / 1.08 | |
| Water pressure drop | kPa | 38.00 / 35.00 / 33.00 | |
| Heating2 | Capacity (H/M/L) | kW | 8.02 / 7.55 / 6.76 |
| Water flow rate | m³/h | 1.46 / 1.37 / 1.23 | |
| Water pressure drop | kPa | 47.00 / 43.00 / 40.00 | |
| Power input (H/M/L) | W | 183 / 159/ 146 | |
| Auxiliary electric heater (AEH) | W | 2850 | |
| Sound pressure level (H/M/L) | dB(A) | 49 / 45 / 40 | |
| Fan motor | Type | Low noise 3-speed fan motor | |
| Quantity | 1 | ||
| Fan | Type | Centrifugal, forward-curved blades | |
| Quantity | 1 | ||
| Coil | Row | 2 | |
| Max. working pressure | MPa | 1.6 | |
| Diameter | mm | φ7 | |
| Panel | Net dimensions (W х H х D) | mm | 950 x 45 x 950 |
| Packing size (W х H х D) | mm | 1035 х 90 х 1035 | |
| Net weight | kg | 6 | |
| Gross weight | kg | 9 | |
| Body | Net dimensions (W х H х D) | mm | 840 x 300 x 840 |
| Packing size (W х H х D) | mm | 900 x 330 x 900 | |
| Net weight (non-AEH/with-AEH) | kg | 28.8 / 33 | |
| Gross weight (non-AEH/with-AEH) | kg | 34.3 / 39 | |
| Pipe connections | Water inlet / outlet pipe | inch | RC3/4 |
| Drain pipe | mm | ODφ32 | |
Based on Eurovent conditions:
H: High fan speed; M: Medium fan speed; L: Low fan speed.
- Cooling mode (2-pipe coil): entering air temperature 27°C DB/19°C WB, entering/leaving water temperature 7°C /12°C, high fan speed.
- Heating mode (1): (2-pipe coil): entering air temperature 20°C DB, entering/leaving water temperature 45/40°C, high fan speed.
- Heating mode (2): (2-pipe coil): entering air temperature 20°C DB, enter water teperaure/water flow 50°C
| Manufacturer | Midea |
| Type | Fan Coil |
| Indoor Unit | MKA-1200RA |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Cooling Capacity (kW) | 7.07 |
| Heating Capacity (kW) | 8.02 |
| Power Input Cooling/Heating (kW) | 0.183 / 0.183 |
| Dimensions - Indoor Unit WxHxD (mm) | 840 x 300 x 840 |
| Weight - Indoor Unit (kg) | 28.8 / 33 ( With AEH ) |
