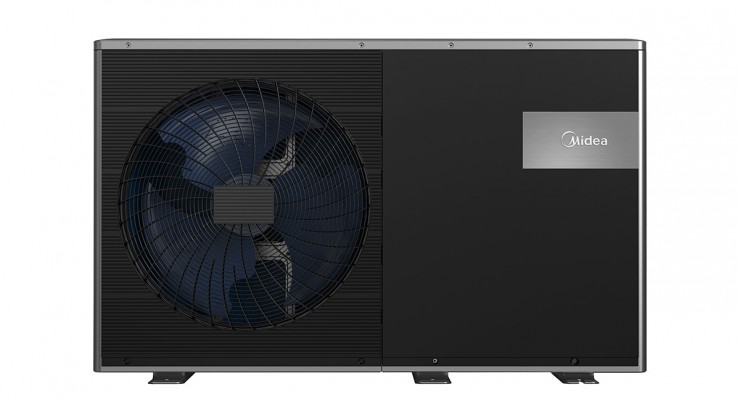

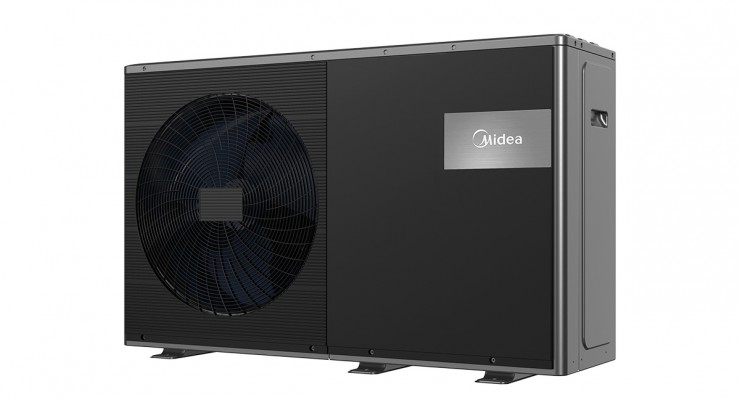

Midea M-Thermal Arctic Mono R290 MHC-V8WD2N7 Heat Pump
Midea M-Thermal Arctic Mono R290 MHC-V8WD2N7 Heat Pump
Midea M-Thermal Arctic Mono R290 MHC-V8WD2N7 Heat Pump
Midea M-Thermal Arctic Mono R290 MHC-V8WD2N7 Heat Pump

Midea M-Thermal Arctic Mono R290 MHC-V8WD2N7 Heat Pump

In stock
4,250.00 €
  • Cooling
    7.50 kW
  • Heating
    8.40 kW
  • SEER 7°C
    5.86 A+
  • SCOP 35°C
    5.19 A+++
  • Noise
    48 dB

+35932 390 107
or
SEND INQUIRY

Technical specifications for Midea M-Thermal Arctic R290 Mono MHC-V8WD2N7 Heat Pump
Model nameMHC-V8WD2N7
Power Supply V/Ph/Hz 220-240/1/50
Heating A7W35 Capacity kW 8.40
Rated input kW 1.68
COP 5.00
Heating A7W45 Capacity kW 8.20
Rated input kW 2.13
COP 3.85
Heating A7W55 Capacity kW 7.80
Rated input kW 2.44
COP 3.20
Heating A2W35 Capacity kW 7.10
Rated input kW 1.84
COP 3.85
Heating A2W45 Capacity kW 7.40
Rated input kW 2.57
COP 3.00
Heating A2W55 Capacity kW 7.80
Rated input kW 3.06
COP 2.55
Heating A-7W35 Capacity kW 7.00
Rated input kW 2.33
COP 3.00
Heating A-7W45 Capacity kW 7.10
Rated input kW 3.09
COP 2.30
Heating A-7W55 Capacity kW 6.90
Rated input kW 3.21
COP 2.15
Cooling A35W18 Capacity kW 8.30
Rated input kW 1.61
EER 5.15
Cooling A35W7 Capacity kW 7.50
Rated input kW 2.17
EER 3.45
Seasonal space heating energy efficiency class Water outlet at 35⁰C A+++
Water outlet at 55⁰C A++
SCOP Warmer climate 35⁰C 6.56
55⁰C 4.68
Average climate 35⁰C 5.19
55⁰C 3.82
Colder climate 35⁰C 4.44
55⁰C 3.46
SEER Water outlet W7°C 5.86
W18°C 8.14
ErP sound power level dB 60
Sound Power Level Heating (A7W35) dB 60
Heating (max) dB 62
Heating (silence mode 1) dB 58
Heating (silence mode 2) dB 55
Cooling (A35W18) dB 60
Cooling (max) dB 62
Cooling (silence mode 1) dB 57
Cooling (silence mode 2) dB 54
Sound pressure level (1m) Heating (A7W35) dB(A) 48
Heating (max) dB(A) 50
Heating (silence mode 1) dB(A) 45
Heating (silence mode 2) dB(A) 42
Cooling (A35W18) dB(A) 48
Cooling (max) dB(A) 50
Cooling (silence mode 1) dB(A) 45
Cooling (silence mode 2) dB(A) 42
Sound pressure level (2m) Heating (A7W35) dB(A) 44
Heating (max) dB(A) 46
Heating (silence mode 1) dB(A) 41
Heating (silence mode 2) dB(A) 39
Cooling (A35W18) dB(A) 44
Cooling (max) dB(A) 46
Cooling (silence mode 1) dB(A) 41
Cooling (silence mode 2) dB(A) 39
Water flow range m3/h mm 0.40 - 1.65
Compressor Type Twin rotary
Outdoor fan Motor type DC fan
Number of fans 1
Air side heat exchanger Finned tube heat exchanger
Refrigerant R290 (1100g)
Unit dimension (W×H×D) mm 1385 × 865 × 523
Packing dimension (W×H×D) mm 1465 × 1035 × 560
Net weight kg 117
Gross weight kg 139
Water side heat exchanger Plate heat exchanger
Water side Connection dimension G1 1/4"BSP
Water pump Max. pump head m 9
Expansion vessel (Primary circuit) Nominal volume L 8
Max. working pressure Bar 8
Safety valve MPa 0.3
Flow switch m3/h 0.36
Outdoor air temperature range Cooling °C -5 ~ 46
Heating °C -25 ~ 35
DHW °C -25 ~ 46
Water setting temperature range Cooling °C 5 ~ 30
Heating °C 12 ~ 75
DHW °C 10 ~ 70


Note:

  1. The above data test reference standard EN14511; EN14825; EN50564;EN 12102; (EU) No:811
Manufacturer Midea
Type Heat pumps
Technology Inverter
Series M-Thermal Arctic
Outdoor Unit MHC-V8WD2N7
Power supply (V/ø/Hz) 230 / 1 / 50
Cooling Capacity (kW) 7.50
Heating Capacity (kW) 8.40
Power Input Cooling/Heating (kW) 2.17 / 1.68
EER (Energy Efficiency in Cooling) 3.45
COP (Energy Efficiency in Heating) 5.00
SEER (Seasonal Cooling Efficiency) 5.86
SCOP (Seasonal Heating Efficiency) 5.19
Energy Efficiency Class (Cooling) A+
Energy Efficiency Class (Heating) A+++
Sound Power Outdoor Unit - Cooling/Heating dB(A) 60 / 60
Dimensions - Outdoor Unit WxHxD (mm) 1375 × 885 × 475
Weight - Outdoor Unit (kg) 117
Operation Range - Cooling (°C) -5 ~ 46
Operation Range - Heating (°C) -25 ~ 35
Built-in water tank (L) No
Refrigerant (type) R290
Warranty 3 years
