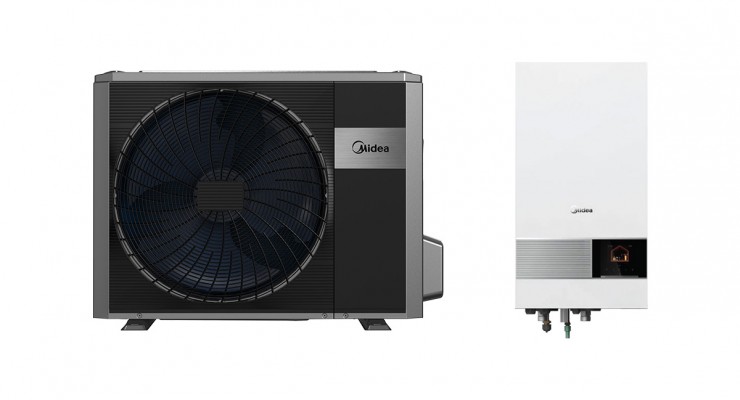

Midea Air-water M-Thermal Arctic S4 MHA-V6WD2N12 + HB-A60CGN12 Heat Pump
- Cooling
6.00 kW - Heating
5.80 kW - SEER 7°C
4.01 D - SCOP 35°C
4.73 A+++ - Noise
37.6 dB

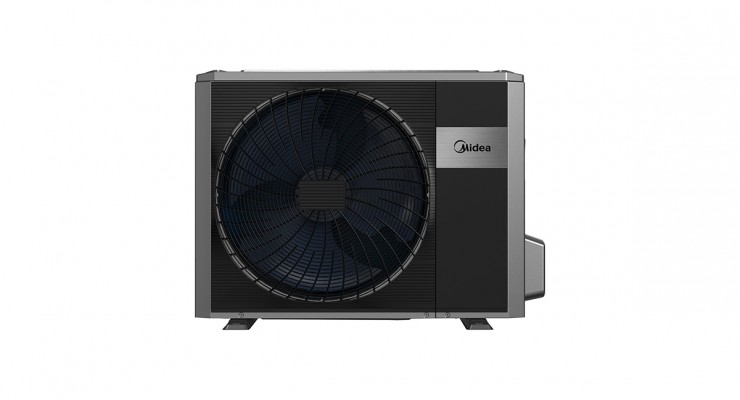

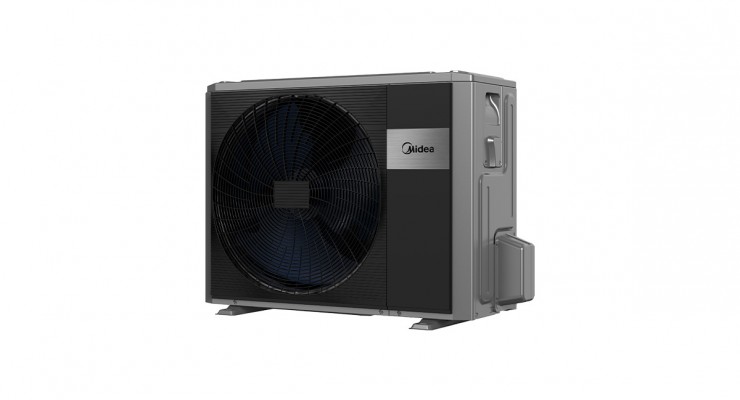

| Model name | MHA-V6WD2N12 | ||
|---|---|---|---|
| Compatible hydronic box (indoor unit) | HB-A60CGN12 | ||
| Power supply | V/Ph/Hz | 220-240/1/50 | |
| Heating(A7W35) | Capacity | kW | 5.8 |
| Rated input | kW | 1.28 | |
| COP | 4.55 | ||
| Heating(A7W45) | Capacity | kW | 6 |
| Rated input | kW | 1.71 | |
| COP | 3.5 | ||
| Heating(A7W55) | Capacity | kW | 6 |
| Rated input | kW | 2.07 | |
| COP | 2.9 | ||
| Heating(A2W35) | Capacity | kW | 6 |
| Rated input | kW | 1.77 | |
| COP | 3.4 | ||
| Heating(A2W45) | Capacity | kW | 5.8 |
| Rated input | kW | 2.11 | |
| COP | 2.75 | ||
| Heating(A2W55) | Capacity | kW | 5.6 |
| Rated input | kW | 2.29 | |
| COP | 2.45 | ||
| Heating(A-7W35) | Capacity | kW | 5.6 |
| Rated input | kW | 2.07 | |
| COP | 2.7 | ||
| Heating(A-7W45) | Capacity | kW | 5.4 |
| Rated input | kW | 2.4 | |
| COP | 2.25 | ||
| Heating(A-7W55) | Capacity | kW | 5.2 |
| Rated input | kW | 2.54 | |
| COP | 2.05 | ||
| Cooling(A35W18) | Capacity | kW | 5.6 |
| Rated input | kW | 1.55 | |
| EER | 3.61 | ||
| Cooling(A35W7) | Capacity | kW | 6.0 |
| Rated input | kW | 2.55 | |
| EER | 2.2 | ||
| Space heating energy efficiency class1 | LWT 35⁰C | SCOP | 4.73 |
| ηs | 186.3 | ||
| Class | A+++ | ||
| LWT 55⁰C | SCOP | 3.63 | |
| ηs | 142.1 | ||
| Class | A++с | ||
| Colder climate | LWT 35⁰C | SCOP | 4.17 |
| nsh% | 163.9 | ||
| LWT 55⁰C | SCOP | 3.03 | |
| nsh% | 118.3 | ||
| Warmer climate | LWT 35⁰C | SCOP | 6.1 |
| nsh% | 241.1 | ||
| LWT 55⁰C | SCOP | 4.43 | |
| nsh% | 174.2 | ||
| Cooling | LWT 7⁰C | SEER | 4.01 |
| nsh% | 157.3 | ||
| LWT 18⁰C | SEER | 5.49 | |
| nsh% | 216.6 | ||
| Piping connections | Type | Screw | |
| Liquid Dia. (OD) / Gas Dia. (OD) | mm | φ 9.52 / φ 15.9 | |
| Max. chargeless piping length | m | 15 | |
| Min. pipe length | m | 5 | |
| Max. pipe length | m | 30 | |
| Refrigerant to be added | g/m | 50 | |
| Max. height difference | m | 20 | |
| Rated water flow | m3/h | 1.03 | |
| Water flow range | m3/h | 0.4-2.5 | |
| Water side piping connections | Type | Screw | |
| Inlet dimension | Inch | R1" | |
| Outlet dimension | R1" | ||
| Drainage pipe | mm | DN25 | |
| Internal water volume | Without E- heater | L | 2.9 |
| With E- heater | 4 | ||
| Ambient temperature range | Cooling | ⁰C | -5 ~ 46 |
| Heating | ⁰C | -25 ~ 35 | |
| DHW | ⁰C | -25 ~ 46 | |
| Water setting temperature setting range | Cooling | ⁰C | 5 ~ 25 |
| Heating | ⁰C | 25 ~ 70 | |
| DHW | ⁰C | 20 ~ 65 | |
| Erp sound power level | dB | 59 | |
| Sound Power Level | Heating A7W35 | dB | 59 |
| Heating max. | dB | 62 | |
| Heating silence mode 1 | dB | 56 | |
| Heating silence mode 2 | dB | 54 | |
| Cooling A35W18 | dB | 59 | |
| Cooling max. | dB | 60 | |
| Cooling silence mode 1 | dB | 57 | |
| Cooling silence mode 2 | dB | 54 | |
| Sound Pressure Level(1/2m) | Heating A7W35 | dB | 46.8 / 40.8 / 37.3 |
| Heating max. | dB | 50.9 / 44.9 / 41.4 | |
| Heating silence mode 1 | dB | 45.2 / 39.2 / 35.7 | |
| Heating silence mode 2 | dB | 45.5 / 39.5 / 36 | |
| Cooling A35W18 | dB | 47.1 / 41.1 / 37.6 | |
| Cooling max. | dB | 49.7 / 43.7 / 40.2 | |
| Cooling silence mode 1 | dB | 44.5 / 38.5 / 35 | |
| Cooling silence mode 2 | dB | 40.9 / 34.9 / 31.4 | |
| Compressor | Type | DC inverter twin rotary | |
| Fan | Motor type | DC inverter | |
| Number | 1 | ||
| Air flow | m3/h | 3520 | |
| Air side heat exchanger | Type | Fin Coil | |
| Refrigerant | Type (GWP) | R454C (146) | |
| Factory charge | g | 1400 | |
| Throttle type | Electronic expansion valve | ||
| Pipe size O.D. | Liquid | mm(inch) | Φ 9.52 (3/8") |
| Gas | mm(inch) | Φ 15.9 (5/8") | |
| Max. piping length | m | 30 | |
| Max. difference in height | m | 20 | |
| Unit dimension (W×H×D) | mm | 1008 x 712 x 426 | |
| Packing dimension (W×H×D) | mm | 1065 x 870 x 460 | |
| Net/Gross weight | kg | 55.5 / 69 | |

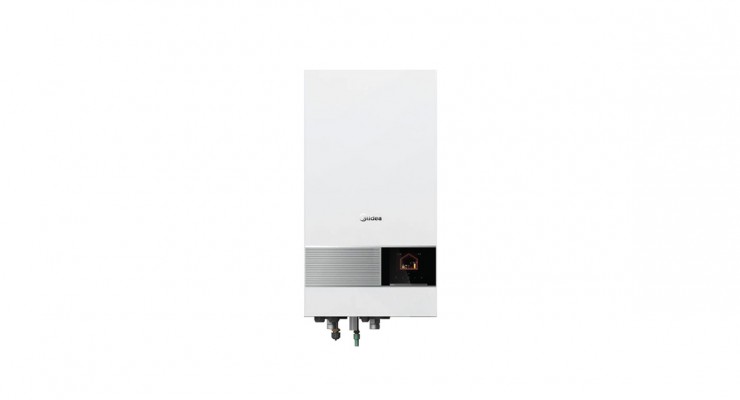

| Model name | HB-A60CGN12 | |||
|---|---|---|---|---|
| Compatible heat pump (outdoor unit) | MHA-V6WD2N12 | |||
| Power supply | V/Ph/Hz | 220-240/1/50 | ||
| Erp sound power level | dB | 38 | ||
| Sound Power Level | Heating A7W35 | dB | 34 | |
| Heating max. | dB | 36 | ||
| Heating silence mode1 | dB | 32 | ||
| Heating silence mode2 | dB | 28 | ||
| Cooling A35W18 | dB | 35 | ||
| Cooling max. | dB | 37 | ||
| Cooling silence mode1 | dB | 35 | ||
| Cooling silence mode2 | dB | 33 | ||
| Sound Pressure Level(1/2m) | Heating A7W35 | dB | 30 / 28 | |
| Heating max. | dB | 30 / 28 | ||
| Heating silence mode1 | dB | 27 / 25 | ||
| Heating silence mode2 | dB | 27 / 25 | ||
| Cooling A35W18 | dB | 31 / 29 | ||
| Cooling max. | dB | 32 / 29 | ||
| Cooling silence mode1 | dB | 29 / 27 | ||
| Cooling silence mode2 | dB | 29 / 27 | ||
| Water side heat exchanger | Plate type | |||
| Water pump | Type | DC inverter | ||
| Max. pump head | m | 9 | ||
| Expansion vessel | Nominal Volume | L | 8 | |
| Actual Volume | L | 5 | ||
| Maximum working pressure | bar | 3 | ||
| Precharge pressure | MPa | 0.15 | ||
| Safety valve | MPa | 0.3 | ||
| Flow switch | m3/h | 0.36 | ||
| Backup E-heater | Standard mounted | kW | / | |
| Capacity steps | / | |||
| Power supply | V/Ph/Hz | / | ||
| Unit dimension (W×H×D) | mm | 420 x 790 x 270 | ||
| Packing dimension (W×H×D) | mm | 525 x 1050 x 360 | ||
| Net/Gross weight | kg | 31.5 / 35.5 | ||
| Manufacturer | Midea |
| Type | Heat pumps |
| Technology | Inverter |
| Series | M-Thermal Arctic S4 |
| Outdoor Unit | MHA-V6WD2N12 |
| Hydro Module | HB-A60CGN12 |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Cooling Capacity (kW) | 6.00 |
| Heating Capacity (kW) | 5.80 |
| Power Input Cooling/Heating (kW) | 2.55 / 1.28 |
| EER (Energy Efficiency in Cooling) | 2.20 |
| COP (Energy Efficiency in Heating) | 4.55 |
| SEER (Seasonal Cooling Efficiency) | 4.01 |
| SCOP (Seasonal Heating Efficiency) | 4.73 |
| Energy Efficiency Class (Cooling) | D |
| Energy Efficiency Class (Heating) | A+++ |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 59 / 59 |
| Dimensions - Outdoor Unit WxHxD (mm) | 1008 x 712 x 426 |
| Weight - Outdoor Unit (kg) | 55.5 |
| Operation Range - Cooling (°C) | -5 ~ 46 |
| Operation Range - Heating (°C) | -25 ~ 35 |
| Built-in water tank (L) | No |
| Refrigerant (type) | R454C |
| Refrigerant - factory charge (kg) | 1.4 |
| Warranty | 3 years |
