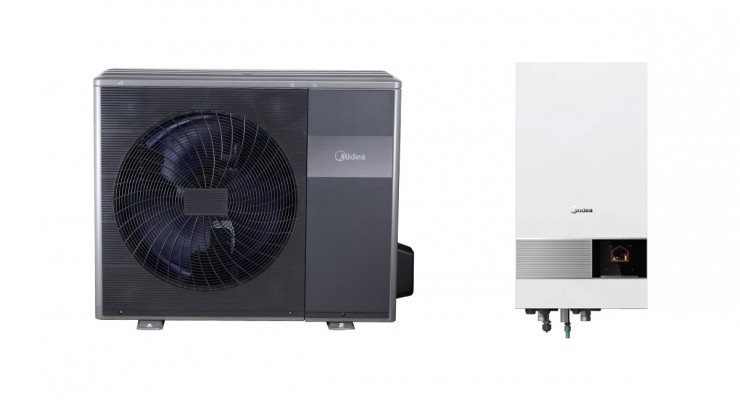

Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump
Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump
Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump
Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump
Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump
Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump
Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump
Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump
Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump
Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump

Midea Air-water M-Thermal Arctic S4 MHA-V10WD2N12 + HB-A100CGN12 Heat Pump

  • Cooling
    7.00 kW
  • Heating
    9.50 kW
  • SEER 7°C
    4.36 C
  • SCOP 35°C
    4.66 A+++
  • Noise
    39.5 dB

+35932 390 107
or
SEND INQUIRY

Model nameMHA-V10WD2N12
Compatible hydronic box (indoor unit)HB-A100CGN12
Power supplyV/Ph/Hz220-240/1/50
Heating(A7W35)CapacitykW9.5
Rated inputkW2.29
COP4.15
Heating(A7W45)CapacitykW9.5
Rated inputkW2.88
COP3.3
Heating(A7W55)CapacitykW9.5
Rated inputkW3.39
COP2.8
Heating(A2W35)CapacitykW8.2
Rated inputkW2.41
COP3.4
Heating(A2W45)CapacitykW8.1
Rated inputkW2.97
COP2.73
Heating(A2W55)CapacitykW8
Rated inputkW3.29
COP2.43
Heating(A-7W35)CapacitykW7.8
Rated inputkW2.89
COP2.7
Heating(A-7W45)CapacitykW7.5
Rated inputkW3.22
COP2.33
Heating(A-7W55)CapacitykW7
Rated inputkW3.23
COP2.17
Cooling(A35W18)CapacitykW8.4
Rated inputkW2.33
EER3.61
Cooling(A35W7)CapacitykW7.0
Rated inputkW3.02
EER2.25
Space heating energy efficiency class1LWT 35⁰CSCOP4.66
ηs183.5
ClassA+++
LWT 55⁰CSCOP3.65
ηs142.9
ClassA++
Colder climateLWT 35⁰CSCOP4.21
nsh%165.6
LWT 55⁰CSCOP3.34
nsh%130.7
Warmer climateLWT 35⁰CSCOP6.41
nsh%253.4
LWT 55⁰CSCOP4.57
nsh%180
CoolingLWT 7⁰CSEER4.36
nsh%171.4
LWT 18⁰CSEER6.16
nsh%243.3
Piping connectionsTypeScrew
Liquid Dia. (OD) / Gas Dia. (OD)mm9.52 / 15.9
Max. chargeless piping lengthm15
Min. pipe lengthm5
Max. pipe lengthm30
Refrigerant to be addedg/m50
Max. height differencem20
Rated water flowm3/h1.71
Water flow rangem3/h0.4 - 2.5
Water side piping connectionsTypeScrew
Inlet dimensionInchR1"
Outlet dimensionR1"
Drainage pipemmDN25
Internal water volumeWithout E- heaterL2.9
With E- heater4
Ambient temperature rangeCooling⁰C-5 ~ 46
Heating⁰C-25 ~ 35
DHW⁰C-25 ~ 46
Water setting temperature setting rangeCooling⁰C5 ~ 25
Heating⁰C25 ~ 70
DHW⁰C20 ~ 65
Erp sound power leveldB61
Sound Power LevelHeating A7W35dB61
Heating max.dB64
Heating silence mode 1dB59
Heating silence mode 2dB57
Cooling A35W18dB62
Cooling max.dB64
Cooling silence mode 1dB60
Cooling silence mode 2dB57
Sound Pressure Level(1/2m)Heating A7W35dB49 / 43 / 39.5
Heating max.dB53.7 / 49.7 / 46.1
Heating silence mode 1dB46.9 / 40.9 / 37.4
Heating silence mode 2dB44.6 / 38.6 / 35.1
Cooling A35W18dB51 / 45 / 41.5
Cooling max.dB51.1 / 45.1 / 42
Cooling silence mode 1dB48.4 / 42.4 / 38.9
Cooling silence mode 2dB45.4 / 39.3 / 35.8
CompressorTypeDC inverter twin rotary
FanMotor typeDC inverter
Number1
Air flowm3/h5180
Air side heat exchangerTypeFin Coil
RefrigerantType (GWP)R454C (146)
Factory chargeg1700
Throttle typeElectronic expansion valve
Pipe size O.D.Liquidmm(inch)Φ 9.52 (3/8")
Gasmm(inch)Φ 15.9 (5/8")
Max. piping lengthm30
Max. difference in heightm20
Unit dimension (W×H×D)mm1118 x 865 x 523
Packing dimension (W×H×D)mm1190 x 1000 x 560
Net/Gross weightkg76 / 94
Model nameHB-A100CGN12
Compatible heat pump (outdoor unit)MHA-V10WD2N12
Power supplyV/Ph/Hz220-240/1/50
Erp sound power leveldB40
Sound Power LevelHeating A7W35dB40
Heating max.dB41
Heating silence mode1dB36
Heating silence mode2dB33
Cooling A35W18dB40
Cooling max.dB41
Cooling silence mode1dB39
Cooling silence mode2dB37
Sound Pressure Level(1/2m)Heating A7W35dB32 / 30
Heating max.dB32 / 30
Heating silence mode1dB29 / 27
Heating silence mode2dB29 / 27
Cooling A35W18dB33 / 31
Cooling max.dB34 / 31
Cooling silence mode1dB31 / 29
Cooling silence mode2dB31 / 29
Water side heat exchangerPlate type
Water pumpTypeDC inverter
Max. pump headm9
Expansion vesselNominal VolumeL8
Actual VolumeL5
Maximum working pressurebar3
Precharge pressureMPa0.15
Safety valveMPa0.3
Flow switchm3/h0.6
Backup E-heaterStandard mountedkW/
Capacity steps/
Power supplyV/Ph/Hz/
Unit dimension (W×H×D)mm420 x 790 x 270
Packing dimension (W×H×D)mm525 x 1050 x 360
Net/Gross weightkg33 / 37
Manufacturer Midea
Type Heat pumps
Technology Inverter
Series M-Thermal Arctic S4

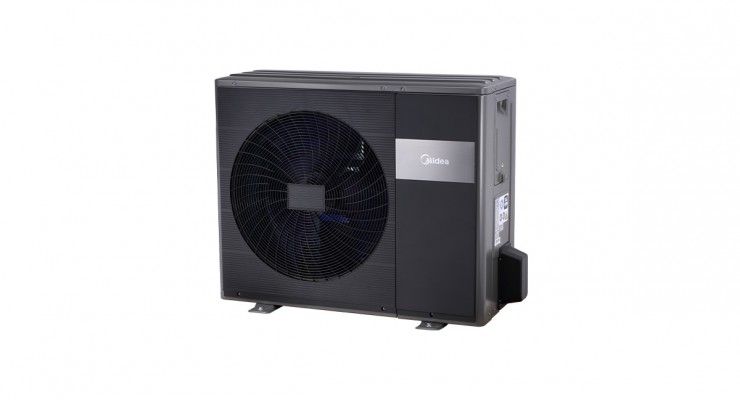

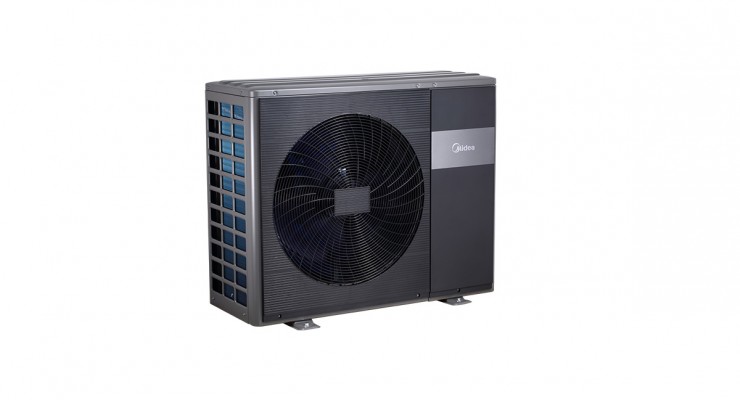

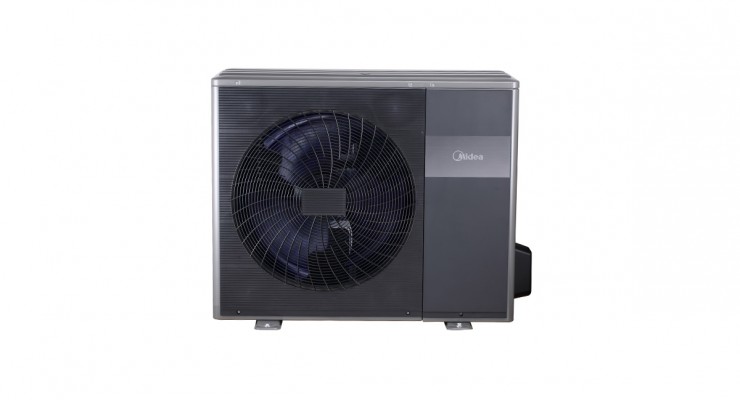

Outdoor Unit MHA-V10WD2N12

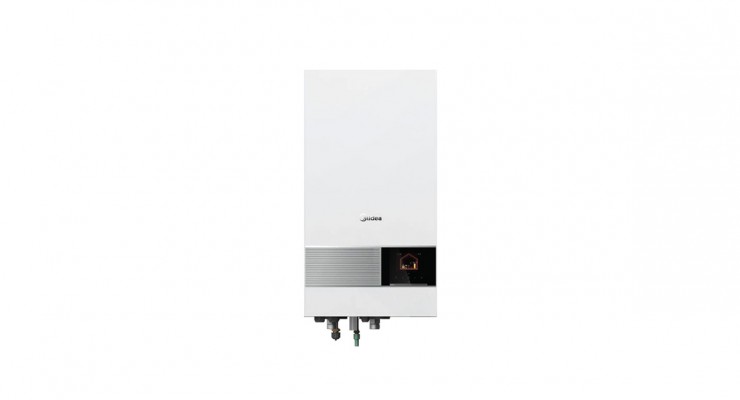

Hydro Module HB-A100CGN12
Power supply (V/ø/Hz) 230 / 1 / 50
Cooling Capacity (kW) 7.00
Heating Capacity (kW) 9.50
Power Input Cooling/Heating (kW) 3.02 / 2.29
EER (Energy Efficiency in Cooling) 2.25
COP (Energy Efficiency in Heating) 4.15
SEER (Seasonal Cooling Efficiency) 4.36
SCOP (Seasonal Heating Efficiency) 4.66
Energy Efficiency Class (Cooling) C
Energy Efficiency Class (Heating) A+++
Sound Power Outdoor Unit - Cooling/Heating dB(A) 59 / 59
Dimensions - Outdoor Unit WxHxD (mm) 1118 x 865 x 523
Weight - Outdoor Unit (kg) 76
Operation Range - Cooling (°C) -5 ~ 46
Operation Range - Heating (°C) -25 ~ 35
Built-in water tank (L) No
Refrigerant (type) R454C
Refrigerant - factory charge (kg)
Warranty 3 years
