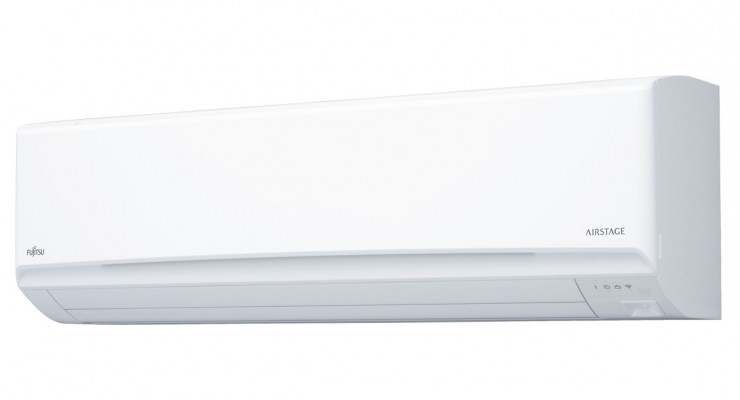

Inverter wall-type air conditioner Fujitsu Airstage ASEH36KMTB
Inverter wall-type air conditioner Fujitsu Airstage ASEH36KMTB
Inverter wall-type air conditioner Fujitsu Airstage ASEH36KMTB
Inverter wall-type air conditioner Fujitsu Airstage ASEH36KMTB
Inverter wall-type air conditioner Fujitsu Airstage ASEH36KMTB
Inverter wall-type air conditioner Fujitsu Airstage ASEH36KMTB
Inverter wall-type air conditioner Fujitsu Airstage ASEH36KMTB
Inverter wall-type air conditioner Fujitsu Airstage ASEH36KMTB

Inverter wall-type air conditioner Fujitsu Airstage ASEH36KMTB

In stock
2,749.00 €
  • Cooling
    9.40 kW
  • Heating
    10.10 kW
  • SEER
    6.10 A++
  • SCOP
    4.50 A+
  • Noise
    33 dB
Choose Installation

Buy with tbi bank
13 x €234.22


Special Cooling

When it is necessary to be constantly cooled such as rooms with a high heat load, it is possible to operate the cooling with keeping performance even when the outside temperature is low.

* Wired remote controller (UTY-RNRYZ6) is required.

<p* Please note that we will not provide compensation for any damages suffered to your appliances or data as a result of using this function.

* Please use it in low-humidity environments. Condensation and other problems may be caused when used in high-humidity environments.

Inverter wall-type air conditioner Fujitsu Airstage ASEH-KMTB
Inverter wall-type air conditioner Fujitsu Airstage ASEH-KMTB

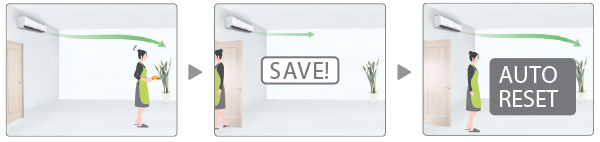

Occupancy Sensor

The Occupancy sensor monitors the movements of people in a room and operates the air conditioner at a lower capacity when people leave the room. When people come back to the room, it automatically returns to the previous operating mode.

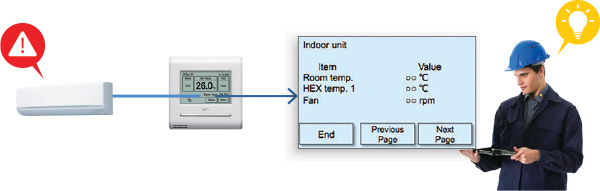

Refrigerant Cycle Monitor

Wired Remote Controller (Touch Panel) will support to display some sensor values for maintenance and service support.

*Wired remote controller (UTY-RNRYZ6 or UTY-RVRY) is required.

Inverter wall-type air conditioner Fujitsu Airstage ASEH-KMTB
Inverter wall-type air conditioner Fujitsu Airstage ASEH-KMTB

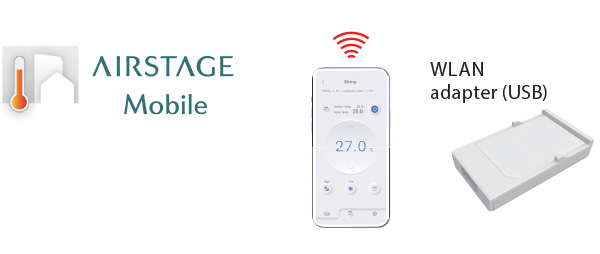

Smart Device Control (Option)

With the optional WLAN adapter installed in the air conditioner, you can control it from anywhere with your smart device.

You need to install the AIRSTAGE Mobile app on your smart device in order to control the air conditioner.

Series KM
Indoor Unit ASEH36KMTB
Outdoor Unit AOEH36KMTB
Power supply (V/ø/Hz) 230 / 1 / 50
Capacity (BTU) 36 000 BTU
Cooling Capacity (kW) 9.4 (2.9 - 10.0)
Heating Capacity (kW) 10.1 (2.7 - 12.6)
Power Input Cooling/Heating (kW) 3.160 / 2.730
Pdesign Cooling/Heating (-10°C) (kW) 9.4 / 7.1
EER (Energy Efficiency in Cooling) 2.97
COP (Energy Efficiency in Heating) 3.70
SEER (Seasonal Cooling Efficiency) 6.10
SCOP (Seasonal Heating Efficiency) 4.50
Energy Efficiency Class (Cooling) A++
Energy Efficiency Class (Heating) A+
Current for Cooling / Heating (A) 21.5/21.5
Moisture Removal (l/h) 3.8
Sound Pressure Indoor Unit - Cooling dB(A) 50 / 44 / 40 / 33
Sound Pressure Indoor Unit - Heating dB(A) 49 / 44 / 39 / 33
Sound Pressure Outdoor Unit - Cooling/Heating dB(A) 55 / 55
Sound Power Indoor Unit - Cooling/Heating dB(A) 65 / 65
Sound Power Outdoor Unit - Cooling/Heating dB(A) 70 / 70
Air Flow Indoor / Outdoor Unit - Cooling (m3/h) 1330 / 3750
Air Flow Indoor / Outdoor Unit - Heating (m3/h) 1330 / 3750
Dimensions - Indoor Unit WxHxD (mm) 1150 × 340 × 280
Dimensions - Outdoor Unit WxHxD (mm) 940 × 788 × 320
Weight - Indoor Unit (kg) 18.5
Weight - Outdoor Unit (kg) 52
Piping Connections - Liquid/Gas (mm) 9.52 / 15.88
Drain Pipe Diameter (mm) 13.8 / 15.8 - 16.7
Maximum Pipe Lenght (m) 50
Maximum Height Difference (m) 30
Operation Range - Cooling (°C) -15 ~ 46
Operation Range - Heating (°C) -15 ~ 24
Refrigerant (type) R32
Warranty 3 years
