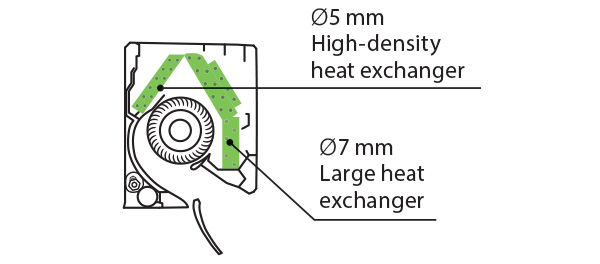

High-efficiency has been achieved by the lambda-shaped heat exchanger, large cross-flow fan, and the R32 refrigerant.
The large hybrid heat ex-changer has greatly improved the heat exchange efficiency to achieve top-level SEER and SCOP.
The large-diameter fan generates air volume efficiently even at reduced power.

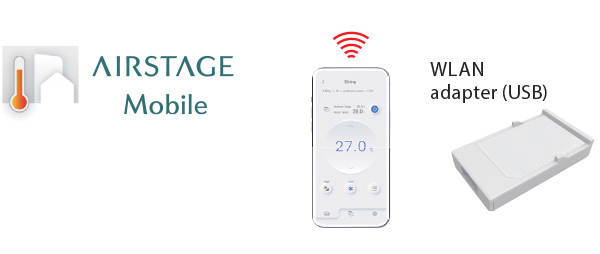

A WLAN adapter is included as standard equipment. By installing the AIRSTAGE mobile app on your smart device, you can check and control the operating status of the air conditioner from anywhere indoors or outdoors.
You need to install the AIRSTAGE Mobile app on your smart device in order to control the air conditioner.

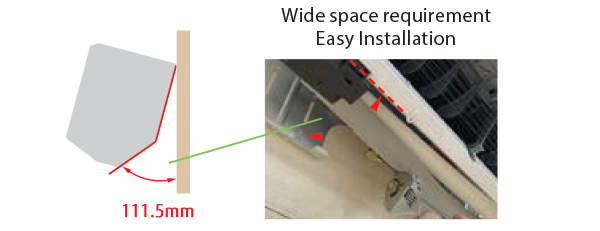

Installation when left outlet piping is easier by removable under cover of the indoor unit chassis. Installation when center outlet piping is easier by design change of wall hook bracket.
| Series | KM |
| Indoor Unit | ASEH24KMTGL |
| Outdoor Unit | AOEH24KMTG |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 24 000 BTU |
| Cooling Capacity (kW) | 7.1 (0.9 - 8.3) |
| Heating Capacity (kW) | 8.0 (0.9 - 10.1) |
| Power Input Cooling/Heating (kW) | 2.200 / 1.990 |
| Pdesign Cooling/Heating (-10°C) (kW) | 7.1 / 7.1 |
| EER (Energy Efficiency in Cooling) | 3.23 |
| COP (Energy Efficiency in Heating) | 4.02 |
| SEER (Seasonal Cooling Efficiency) | 7.30 |
| SCOP (Seasonal Heating Efficiency) | 4.30 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ |
| Current for Cooling / Heating (A) | 13.5/16.0 |
| Moisture Removal (l/h) | 2.7 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 49 / 40 / 35 / 29 |
| Sound Pressure Indoor Unit - Heating dB(A) | 49 / 40 / 35 / 29 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 54 / 54 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 65 / 65 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 67 / 68 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 1170 / 3240 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 1170 / 2970 |
| Dimensions - Indoor Unit WxHxD (mm) | 980 × 280 × 240 |
| Dimensions - Outdoor Unit WxHxD (mm) | 820 × 716 × 315 |
| Weight - Indoor Unit (kg) | 12.5 |
| Weight - Outdoor Unit (kg) | 42 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 12.70 |
| Drain Pipe Diameter (mm) | 13.8 / 15.8 - 16.7 |
| Maximum Pipe Lenght (m) | 30 |
| Maximum Height Difference (m) | 25 |
| Operation Range - Cooling (°C) | -10 ~ 50 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
