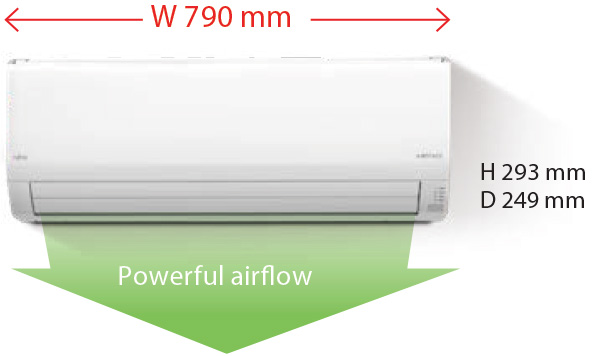

Compact and versatile. Powerful airflow is realized despite the 790-mm width compact design for small spaces such as bedrooms or home offices.

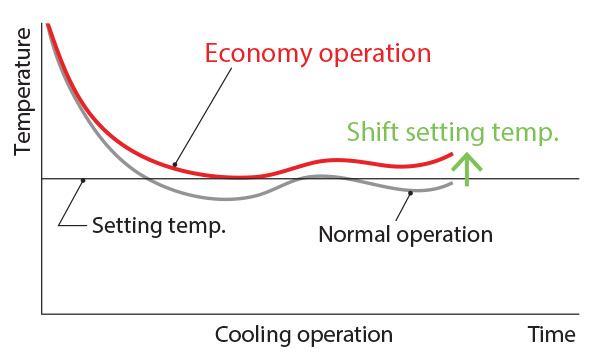

Set temperature automatically increases or decreases by 1°C. The thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating.

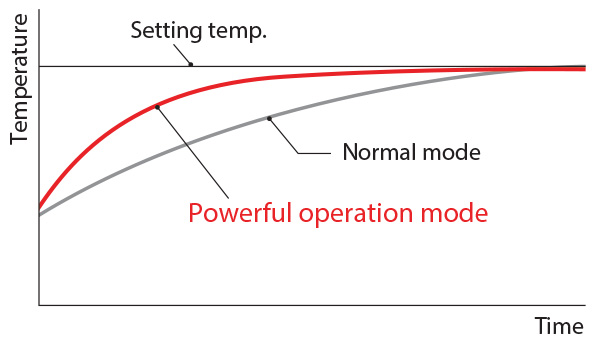

In powerful operation mode, the compressor operates at maximum speed for 20 minutes to provide a powerful airflow. Rapid cooling and heating makes the room comfortable quickly.

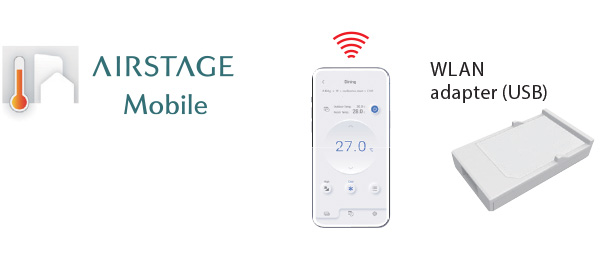

A WLAN adapter is included as standard equipment. By installing the AIRSTAGE mobile app on your smart device, you can check and control the operating status of the air conditioner from anywhere indoors or outdoors.
* For more information about smart device control, please refer to the page C-022.
You need to install the AIRSTAGE Mobile app on your smart device in order to control the air conditioner
| Series | KL |
| Indoor Unit | ASEH24KLCBL |
| Outdoor Unit | AOEH24KLCB |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 24 000 BTU |
| Cooling Capacity (kW) | 7.1 (0.9 - 7.7) |
| Heating Capacity (kW) | 8.0 (0.9 - 9.0) |
| Power Input Cooling/Heating (kW) | 2.420 / 2.230 |
| Pdesign Cooling/Heating (-10°C) (kW) | 7.1 / 7.1 |
| EER (Energy Efficiency in Cooling) | 2.93 |
| COP (Energy Efficiency in Heating) | 3.59 |
| SEER (Seasonal Cooling Efficiency) | 7.00 |
| SCOP (Seasonal Heating Efficiency) | 4.00 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ |
| Current for Cooling / Heating (A) | 13.5/17.5 |
| Moisture Removal (l/h) | 3.1 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 51 / 45 / 38 / 33 |
| Sound Pressure Indoor Unit - Heating dB(A) | 52 / 45 / 41 / 37 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 55 / 57 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 64 / 65 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 65 / 67 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 1040 / 2885 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 1040 / 3030 |
| Dimensions - Indoor Unit WxHxD (mm) | 790 × 293 × 249 |
| Dimensions - Outdoor Unit WxHxD (mm) | 799 × 632 × 290 |
| Weight - Indoor Unit (kg) | 10 |
| Weight - Outdoor Unit (kg) | 38 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 12.70 |
| Drain Pipe Diameter (mm) | 13.8 / 15.8 - 16.7 |
| Maximum Pipe Lenght (m) | 30 |
| Maximum Height Difference (m) | 25 |
| Operation Range - Cooling (°C) | -10 ~ 50 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
