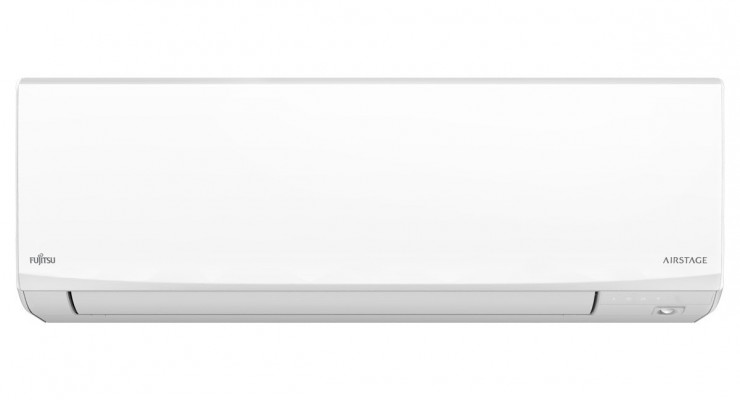

The clean lines and strong, elegant curves give it an elegant look. Its compact width allows it to be installed in narrow spaces such as above doors.

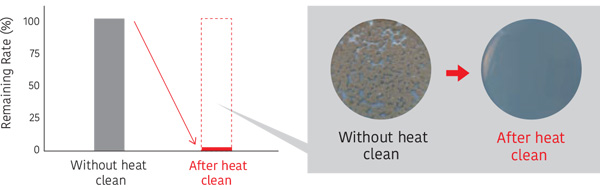

Heats the heat exchanger (aluminum fins) inside the air conditioner to over 55°C along with any accumulated water to quickly and effectively clean it. It is also effective against mold that has adhered to the unit.
Test organization name: Kitasato Research Center for Environmental Science Report No.: KRCES - Bio. Test Report No. 2025_1003. Test Report No. 2025_1003
Mold control rate: 99% or higher after heat clean operation.
*Tested on actual equipment. (12 model) Results may vary based on usage, seasonal, and environmental variables.

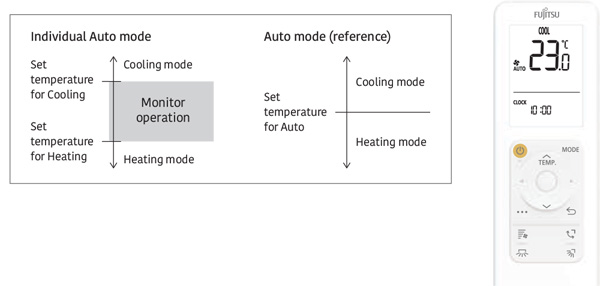

To accommodate Europe’s temperature differences between day and night, the system has a function that allows users to set separate temperatures for cooling and heating and automatically switches between them.
The Occupancy sensor monitors the movements of people in a room and operates the air conditioner at a lower capacity when people leave the room. When people come back to the room, it automatically returns to the previous operating mode.
| Series | KJ |
| Indoor Unit | ASEH09KJCAL |
| Outdoor Unit | AOEH09KJCA |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 9 000 BTU |
| Cooling Capacity (kW) | 2.5 (0.9 - 3.2) |
| Heating Capacity (kW) | 2.8 (0.9 - 4.5) |
| Power Input Cooling/Heating (kW) | 0.550 / 0.600 |
| Pdesign Cooling/Heating (-10°C) (kW) | 2.5 / 2.4 |
| EER (Energy Efficiency in Cooling) | 4.55 |
| COP (Energy Efficiency in Heating) | 4.67 |
| SEER (Seasonal Cooling Efficiency) | 9.20 |
| SCOP (Seasonal Heating Efficiency) | 5.10 |
| Energy Efficiency Class (Cooling) | A+++ |
| Energy Efficiency Class (Heating) | A+++ |
| Current for Cooling / Heating (A) | 6.5 / 9.0 |
| Moisture Removal (l/h) | 1.0 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 38 / 31 / 24 / 19 |
| Sound Pressure Indoor Unit - Heating dB(A) | 38 / 31 / 24 / 20 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 44 / 44 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 52 / 52 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 56 / 55 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 580 / 1480 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 580 / 1350 |
| Dimensions - Indoor Unit WxHxD (mm) | 798 × 270 × 240 |
| Dimensions - Outdoor Unit WxHxD (mm) | 799 × 542 × 290 |
| Weight - Indoor Unit (kg) | 10 |
| Weight - Outdoor Unit (kg) | 30 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 9.52 |
| Drain Pipe Diameter (mm) | 13.8 / 15 - 16.8 |
| Maximum Pipe Lenght (m) | 20 |
| Maximum Height Difference (m) | 15 |
| Operation Range - Cooling (°C) | -10 ~ 50 |
| Operation Range - Heating (°C) | -20 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
