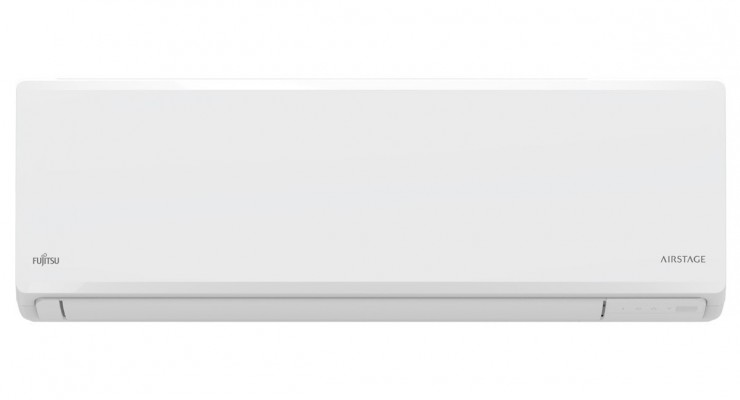

An elegant and smart type in the eco range. The delicate shading of the ridge line makes the unit an accessory for the room.
The size of the heat exchanger has increased to improve performance, making it more powerful despite its compact size.
The large louver and the air-blowing structure create a comfortable air flow that spreads all the way down to the user’s feet with quiet operation.
A WLAN adapter is included as standard equipment.By installing the AIRSTAGE mobile app on your smart device, you can check and control the operating status of the air conditioner from anywhere indoors or outdoors.
Even when installed in the region with high outdoor air temperatures (Max. 50°C*), it is comfortable because it can cool the interior well.
| Series | KNC |
| Indoor Unit | ASEH07KNCA |
| Outdoor Unit | AOEH07KNCA |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 7 000 BTU |
| Cooling Capacity (kW) | 2.0 (0.9 - 2.9) |
| Heating Capacity (kW) | 2.5 (0.9 - 3.4) |
| Power Input Cooling/Heating (kW) | 0.500 / 0.580 |
| Pdesign Cooling/Heating (-10°C) (kW) | 2.0 / 2.3 |
| EER (Energy Efficiency in Cooling) | 4.00 |
| COP (Energy Efficiency in Heating) | 4.31 |
| SEER (Seasonal Cooling Efficiency) | 7.80 |
| SCOP (Seasonal Heating Efficiency) | 4.40 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ |
| Current for Cooling / Heating (A) | 6.5 / 9.0 |
| Moisture Removal (l/h) | 1.0 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 36 / 33 / 29 / 20 |
| Sound Pressure Indoor Unit - Heating dB(A) | 38 / 33 / 30 / 22 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 43 / 44 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 51 / 52 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 53 / 54 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 530 / 1430 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 580 / 1390 |
| Dimensions - Indoor Unit WxHxD (mm) | 784 × 270 × 222 |
| Dimensions - Outdoor Unit WxHxD (mm) | 663 × 541 × 290 |
| Weight - Indoor Unit (kg) | 9 |
| Weight - Outdoor Unit (kg) | 22 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 9.52 |
| Drain Pipe Diameter (mm) | 13.8 / 15 - 16.8 |
| Maximum Pipe Lenght (m) | 20 |
| Maximum Height Difference (m) | 15 |
| Operation Range - Cooling (°C) | -10 ~ 50 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
