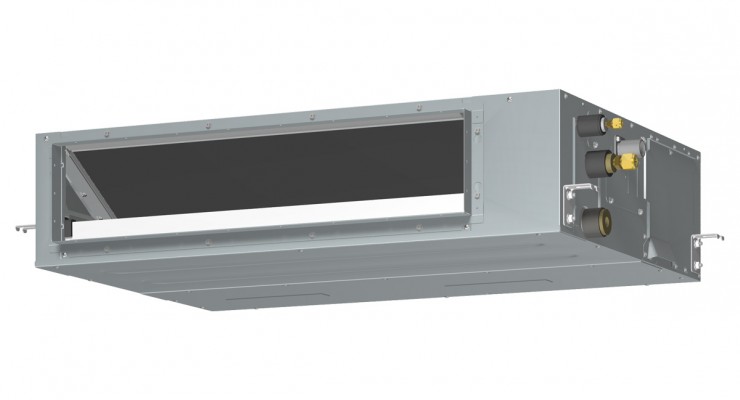

The product has reduced the height to 240 mm, making it more compact. The slim design fits nicely into narrow spaces under the ceiling.
The model has achieved high energy efficiency class with a compact design.
The indoor unit have large panels on both sides providing easy maintenance in narrow spaces.
The grille with automatic louvers ensures perfect distribution of the air flow in the room.
Centralized control including facilities and equipment in addition to air conditioning is possible by linking up with MODBUS, KNX interfaces.
| Series | KM |
| Indoor Unit | ARXH24KMTAP |
| Outdoor Unit | AOEG24KBTB |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 24 000 BTU |
| Cooling Capacity (kW) | 6.8 (0.9 - 8.0) |
| Heating Capacity (kW) | 7.5 (0.9 - 9.1) |
| Power Input Cooling/Heating (kW) | 1.89 / 1.87 |
| Pdesign Cooling/Heating (-10°C) (kW) | 6.8 / 6.0 |
| EER (Energy Efficiency in Cooling) | 3.60 |
| COP (Energy Efficiency in Heating) | 4.01 |
| SEER (Seasonal Cooling Efficiency) | 6.40 |
| SCOP (Seasonal Heating Efficiency) | 4.20 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ |
| Maximum Current for Cooling / Heating (A) | 13.6 / 13.6 |
| Moisture Removal (l/h) | 2.2 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 34 / 30 / 28 / 26 |
| Sound Pressure Indoor Unit - Heating dB(A) | 34 / 30 / 28 / 26 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 53 / 54 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 60 / 60 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 65 / 66 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 1230 / 2700 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 1230 / 2700 |
| Static Pressure (Standart) | 30 до 150 (50) |
| Dimensions - Indoor Unit WxHxD (mm) | 1,000 × 240 × 700 |
| Dimensions - Outdoor Unit WxHxD (mm) | 820 × 716 × 315 |
| Weight - Indoor Unit (kg) | 31 |
| Weight - Outdoor Unit (kg) | 42 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 12.70 |
| Drain Pipe Diameter (mm) | 25 / 32 |
| Maximum Pipe Lenght (m) | 30 |
| Maximum Height Difference (m) | 25 |
| Operation Range - Cooling (°C) | -15 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
