Structural improvement is attained by making the bottom panel in two pieces—front and rear. The internal fan casing is also manufactured in two pieces—upper and lower. As a result, the motor and fan can be easily accessed and maintained by removing the rear panel and the lower casing while leaving the main chassis in place.

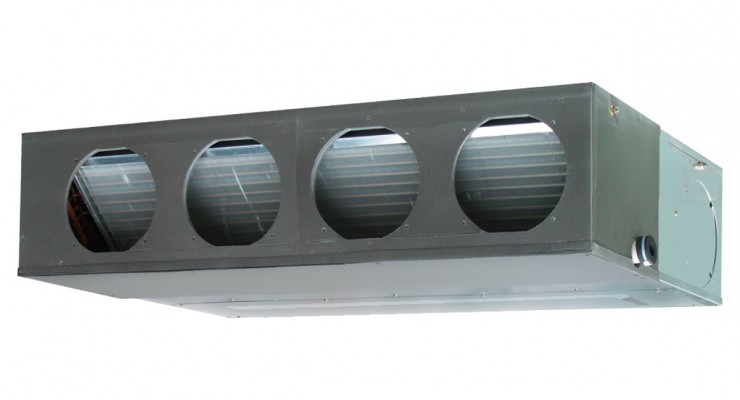

The slim and compact design of the indoor unit, with the control box mounted on the side, allows installation in narrow spaces.
The outdoor units for the 45,000 BTU and 54,000 BTU models have been completely redesigned. Easier installation is achieved for this compact and lightweight outdoor unit.
Centralized control including facilities and equipment in addition to air conditioning is possible by linking up with MODBUS, KNX interfaces.
| Series | KML |
| Indoor Unit | ARXG45KMLA |
| Outdoor Unit | AOEG45KATA |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 45 000 BTU |
| Cooling Capacity (kW) | 12.10 (4.00 - 12.60) |
| Heating Capacity (kW) | 13.50 (4.20 - 15.00) |
| Power Input Cooling/Heating (kW) | 4.84 / 4.18 |
| Pdesign Cooling/Heating (-10°C) (kW) | 12.10 / 9.20 |
| EER (Energy Efficiency in Cooling) | 2.50 |
| COP (Energy Efficiency in Heating) | 3.23 |
| SEER (Seasonal Cooling Efficiency) | 4.85 |
| SCOP (Seasonal Heating Efficiency) | 3.55 |
| Energy Efficiency Class (Cooling) | A |
| Energy Efficiency Class (Heating) | A |
| Maximum Current for Cooling / Heating (A) | 28.10 / 28.10 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 42 / 38 / 32 / 28 |
| Sound Pressure Indoor Unit - Heating dB(A) | 42 / 38 / 32 / 28 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 58 / 59 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 68 / 70 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 72 / 73 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 2100 / 4450 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 2100 / 4450 |
| Static Pressure (Standart) | 30 до 150 (60) |
| Dimensions - Indoor Unit WxHxD (mm) | 1135 × 270 × 700 |
| Dimensions - Outdoor Unit WxHxD (mm) | 940 × 998 × 320 |
| Weight - Indoor Unit (kg) | 39 |
| Weight - Outdoor Unit (kg) | 61 |
| Piping Connections - Liquid/Gas (mm) | 9.52 / 15.88 |
| Maximum Pipe Lenght (m) | 30 (30) |
| Operation Range - Cooling (°C) | -10 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
