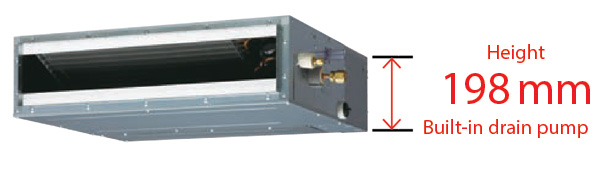

Slim Design
The slim design fits nicely into narrow spaces under the ceiling. Drain hose as accessory.

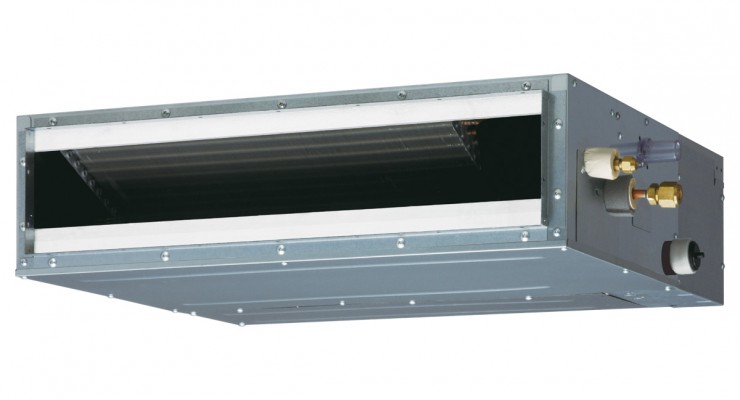

Inverter duct-type air conditioner Fujitsu Airstage ARXG09KLLAP
- Cooling2.50 kW
- Heating3.20 kW
- SEER6.20 A++
- SCOP4.30 A+
- Noise24 dB

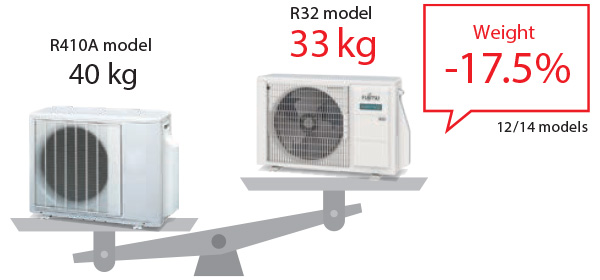

Compact and Lightweight Outdoor Unit
The compact and lightweight outdoor unit offers greater flexibility in the choice of installation location. This makes it easier to use this outdoor unit.

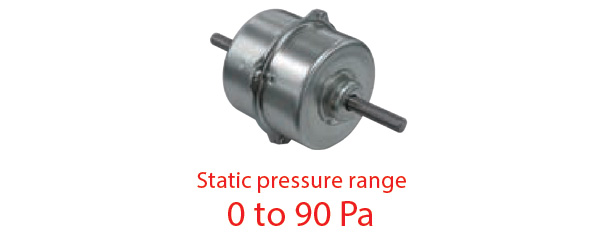

Wide Range of Static Pressures
The use of a DC fan motor makes it possible to adjust the static pressure between 0 and 90 Pa. The static pressure range can be changed by a remote controller.
Auto Louver Grille Kit (Option)
The optional clean-looking flat Auto louver blends into any interior and provides a comfortable airflow.
Link Up with a Variety of Central Control System (Option)
Centralized control including facilities and equipment in addition to air conditioning is possible by linking up with MODBUS, KNX interfaces.
| Series | KLL |
| Indoor Unit | ARXG09KLLAP |
| Outdoor Unit | AOEG09KBTB |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 9 000 BTU |
| Cooling Capacity (kW) | 2.5 ( 0.9 - 3.2) |
| Heating Capacity (kW) | 3.2 (0.9 - 4.7) |
| Power Input Cooling/Heating (kW) | 0.600 / 0.790 |
| Pdesign Cooling/Heating (-10°C) (kW) | 2.5 / 2.6 |
| EER (Energy Efficiency in Cooling) | 4.17 |
| COP (Energy Efficiency in Heating) | 4.05 |
| SEER (Seasonal Cooling Efficiency) | 6.20 |
| SCOP (Seasonal Heating Efficiency) | 4.30 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ |
| Maximum Current for Cooling / Heating (A) | 7.9 / 7.9 |
| Moisture Removal (l/h) | 0.7 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 28 / 27 / 26 / 25 |
| Sound Pressure Indoor Unit - Heating dB(A) | 28 / 26 / 25 / 24 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 46 / 46 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 57 / 57 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 59 / 59 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 600 / 1480 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 600 / 1410 |
| Static Pressure (Standart) | 0 до 90 (25) |
| Dimensions - Indoor Unit WxHxD (mm) | 700 × 198 × 620 |
| Dimensions - Outdoor Unit WxHxD (mm) | 799 × 542 × 290 |
| Weight - Indoor Unit (kg) | 17 |
| Weight - Outdoor Unit (kg) | 32 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 9.52 |
| Drain Pipe Diameter (mm) | 25 / 32 |
| Maximum Pipe Lenght (m) | 25 |
| Maximum Height Difference (m) | 15 |
| Operation Range - Cooling (°C) | -15 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
