Structural improvement has been achieved by dividing the lower panel into two modules: front and rear. The inner housing of the fan also consists of two parts - lower and upper. Maintenance of the motor can be easily done by removing the rear panel and the lower part of the housing.
Slim and compact design
In addition to reducing the height to (270 mm) greater compactness is achieved by installing the control box (electronic module) in the housing of the indoor unit

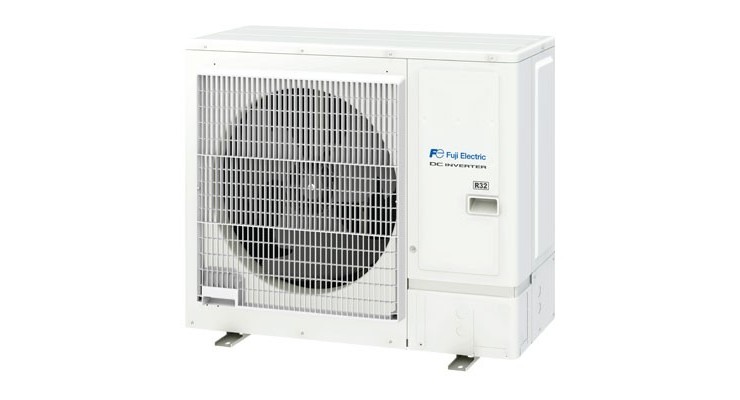

The outdoor units for the 45,000 BTU and 54,000 BTU models have been completely refurbished. These compact and lightweight outdoor units make installation easier.
Bilateral condensate drain
Connect to various central control systems (optional)
Centralized control, including facilities and equipment in addition to air conditioning is possible by connecting to MODBUS, KNX interfaces.
|Type||Duct type air conditioners|
|Power supply (V/ø/Hz)||230 / 1 / 50|
|Capacity (BTU)||30 000 BTU|
|Cooling Capacity (kW)||8.5 (2.8 - 10.0)|
|Heating Capacity (kW)||10.0 (2.7 - 11.2)|
|Power Input Cooling/Heating (kW)||2.65 / 2.63|
|Pdesign Cooling/Heating (-10°C) (kW)||8.5 / 8.0|
|EER (Energy Efficiency in Cooling)||3.21|
|COP (Energy Efficiency in Heating)||3.80|
|SEER (Seasonal Cooling Efficiency)||6.23|
|SCOP (Seasonal Heating Efficiency)||4.10|
|Energy Efficiency Class (Cooling)||A++|
|Energy Efficiency Class (Heating)||A+|
|Maximum Current for Cooling / Heating (A)||22.6 / 22.6|
|Moisture Removal (l/h)||2.5|
|Sound Pressure Indoor Unit - Cooling dB(A)||39 / 35 / 30 / 26|
|Sound Pressure Indoor Unit - Heating dB(A)||42 / 35 / 30 / 26|
|Sound Pressure Outdoor Unit - Cooling/Heating dB(A)||53 / 55|
|Sound Power Indoor Unit - Cooling/Heating dB(A)||65 / 69|
|Sound Power Outdoor Unit - Cooling/Heating dB(A)||68 / 69|
|Air Flow Indoor / Outdoor Unit - Cooling (m3/h)||1900 / 3750|
|Air Flow Indoor / Outdoor Unit - Heating (m3/h)||2100 / 3750|
|Static Pressure (Standart)||30 to 150 (47)|
|Dimensions - Indoor Unit WxHxD (mm)||1135 x 270 x 700|
|Dimensions - Outdoor Unit WxHxD (mm)||940 x 788 x 320|
|Weight - Indoor Unit (kg)||38|
|Weight - Outdoor Unit (kg)||52|
|Piping Connections - Liquid/Gas (mm)||9.52 / 15.88|
|Drain Pipe Diameter (mm)||35.7 / 38.1|
|Maximum Pipe Lenght (m)||50|
|Maximum Height Difference (m)||30|
|Operation Range - Cooling (°C)||-15 ~ 46|
|Operation Range - Heating (°C)||-15 ~ 24|
