Inverter duct-type air conditioner Fuji Electric RDG14LLTB
Inverter duct-type air conditioner Fuji Electric RDG14LLTB
Inverter duct-type air conditioner Fuji Electric RDG14LLTB
Inverter duct-type air conditioner Fuji Electric RDG14LLTB
Inverter duct-type air conditioner Fuji Electric RDG14LLTB
Inverter duct-type air conditioner Fuji Electric RDG14LLTB

Inverter duct-type air conditioner Fuji Electric RDG14LLTB

In stock
3,149.00 BGN
Tax included
  • Cooling
    4.30 kW
  • Heating
    5.00 kW
  • SEER
    5.80 A+
  • SCOP
    3.90 A
  • Noise
    26 dB


Slim design

The slim design allows installations where ceilings are narrow.
Drain hose as standard accessory
Drain port.

Inverter duct-type air conditioner Fuji Electric RDG14LLTB

Flexible installation

2-type installation methods of ceiling concealed and floor concealed
can be selected. Can also be installed in a Bulk

Ceiling concealed

Inverter duct-type air conditioner Fuji Electric RDG14LLTB\

Floor concealed

Inverter duct-type air conditioner Fuji Electric RDG14LLTB

Selectable with a wide range of static pressure

By using the DC fan motor, it is possible to change the static pressure range from
0 to 90 Pa.

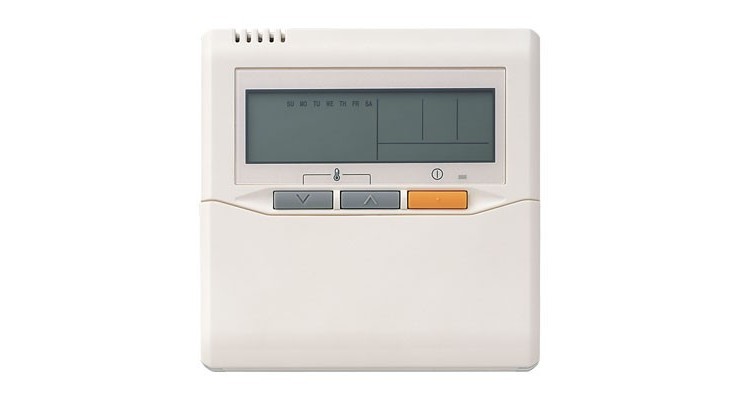

The change of static pressure range is possible by using the remote controller.

Inverter duct-type air conditioner Fuji Electric RDG14LLTB

Static pressure range
0 to 90 Pa

Auto Louvre Grille Kit (Option)

Simple flat Auto Louvre will provide
comfortable airflow and harmonise
with the interior.

Inverter duct-type air conditioner Fuji Electric RDG14LLTB
Inverter duct-type air conditioner Fuji Electric RDG14LLTB
Manufacturer Fuji Electric
Type Duct type air conditioners
Technology Inverter
Series LLT
Indoor Unit RDG14LLTB

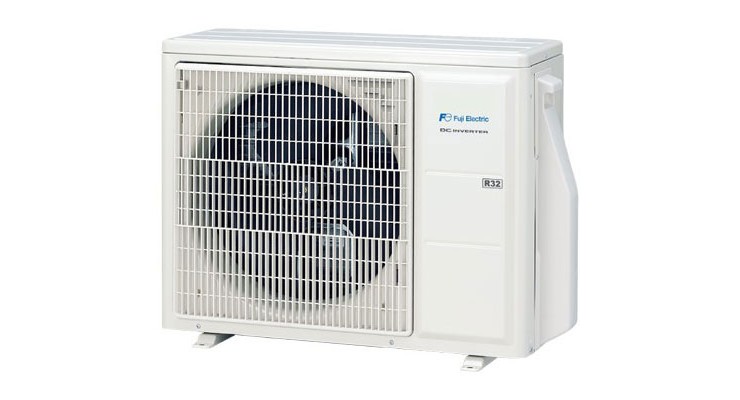

Outdoor Unit ROG14LALL
Power supply (V/ø/Hz) 230 / 1 / 50
Capacity (BTU) 14 000 BTU
Cooling Capacity (kW) 4.3 (0.9 - 5.4)
Heating Capacity (kW) 5.0 (0.9 - 6.5)
Power Input Cooling/Heating (kW) 1.33 / 1.34
Pdesign Cooling/Heating (-10°C) (kW) 4.3 / 4.5
EER (Energy Efficiency in Cooling) 3.21
COP (Energy Efficiency in Heating) 3.71
SEER (Seasonal Cooling Efficiency) 5.80
SCOP (Seasonal Heating Efficiency) 3.90
Energy Efficiency Class (Cooling) A+
Energy Efficiency Class (Heating) A
Maximum Current for Cooling / Heating (A) 9.0 / 12.5
Moisture Removal (l/h) 1.5
Sound Pressure Indoor Unit - Cooling dB(A) 32 / 30 / 28 / 26
Sound Pressure Indoor Unit - Heating dB(A) 32 / 30 / 28 / 25
Sound Pressure Outdoor Unit - Cooling/Heating dB(A) 49 / 49
Sound Power Indoor Unit - Cooling/Heating dB(A) 60 / 60
Sound Power Outdoor Unit - Cooling/Heating dB(A) 62 / 64
Air Flow Indoor / Outdoor Unit - Cooling (m3/h) 800 / 1910
Air Flow Indoor / Outdoor Unit - Heating (m3/h) 800 / 1740
Static Pressure (Standart) 0 to 90 (25)
Dimensions - Indoor Unit WxHxD (mm) 700 x 198 x 620
Dimensions - Outdoor Unit WxHxD (mm) 790 x 578 x 300
Weight - Indoor Unit (kg) 19
Weight - Outdoor Unit (kg) 40
Piping Connections - Liquid/Gas (mm) 6.35 / 12.70
Drain Pipe Diameter (mm) 25 / 32
Maximum Pipe Lenght (m) 25
Maximum Height Difference (m) 15
Operation Range - Cooling (°C) -10 ~ 46
Operation Range - Heating (°C) -15 ~ 24
Refrigerant R410A
