Inverter duct-type air conditioner Fuji Electric RDG09KLLAP ECO Series
In stock
1,599.00 €
- Cooling
2.50 kW - Heating
3.20 kW - SEER
5.90 A+ - SCOP
3.80 A - Noise
25 dB
Slim design
The slim design of the indoor unit allows installation in narrow ceilings. The drain hose is a standard accessory.

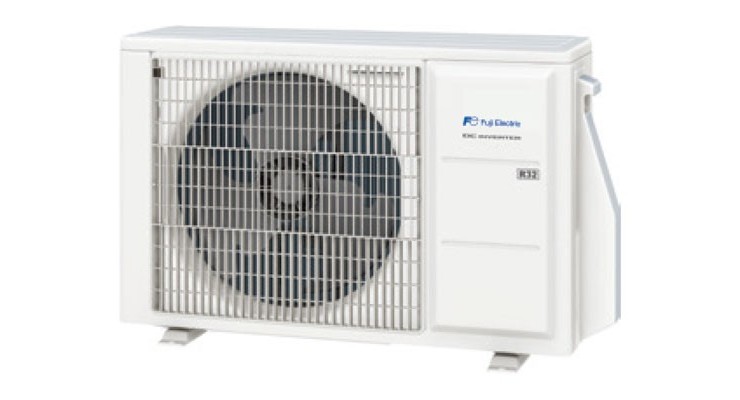

Compact and lightweight outdoor unit
Easier installation thanks to the more compact outdoor unit.
Variable static pressure
Using a DC inverter motor, the system allows setting the static pressure from 0 to 90 Pa.
Static pressure is changed by the remote control.
Static pressure range
0 to 90 Pa
Grille with automatic blinds (optional)
The grille with automatic blinds ensures perfect distribution of air flow in the room.
Operating range
| Manufacturer | Fuji Electric |
| Type | Duct type air conditioners |
| Technology | Inverter |
| Series | KLL |
| Indoor Unit | RDG09KLLAP |
| Outdoor Unit | ROG09KATA |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 9 000 BTU |
| Cooling Capacity (kW) | 2.5 (0.9 - 2.7) |
| Heating Capacity (kW) | 3.2 (0.9 - 3.9) |
| Power Input Cooling/Heating (kW) | 0.69 / 0.88 |
| Pdesign Cooling/Heating (-10°C) (kW) | 2.5 / 2.3 |
| EER (Energy Efficiency in Cooling) | 3.62 |
| COP (Energy Efficiency in Heating) | 3.64 |
| SEER (Seasonal Cooling Efficiency) | 5.90 |
| SCOP (Seasonal Heating Efficiency) | 3.80 |
| Energy Efficiency Class (Cooling) | A+ |
| Energy Efficiency Class (Heating) | A |
| Maximum Current for Cooling / Heating (A) | 6.9 / 6.9 |
| Moisture Removal (l/h) | 0.7 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 28 / 27 / 26 / 25 |
| Sound Pressure Indoor Unit - Heating dB(A) | 28 / 26 / 25 / 24 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 47 / 48 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 57 / 57 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 60 / 60 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 600 / 1610 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 600 / 1550 |
| Static Pressure (Standart) | 0 to 90 (25) |
| Dimensions - Indoor Unit WxHxD (mm) | 700 x 198 x 620 |
| Dimensions - Outdoor Unit WxHxD (mm) | 663 x 541 x 290 |
| Weight - Indoor Unit (kg) | 17 |
| Weight - Outdoor Unit (kg) | 23 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 9.52 |
| Drain Pipe Diameter (mm) | 25 / 32 |
| Maximum Pipe Lenght (m) | 15 |
| Maximum Height Difference (m) | 15 |
| Operation Range - Cooling (°C) | -10 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
