The Floor 09 class achieves a top-class SEER of 8.50 and an A+++ seasonal efficiency class for cooling. The Floor 09 class achieves an improved SCOP of 4.30 and an A+ seasonal efficiency class for heating.

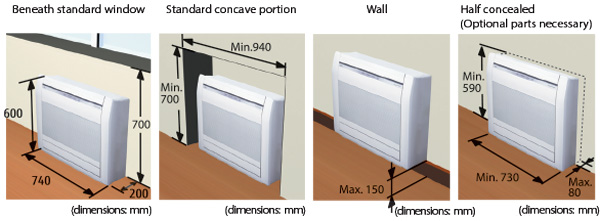

The compact and whole-surface suction design provides flexible installation options, including floorstanding, embedded, half concealed, and wall mount installation to match the room layout.

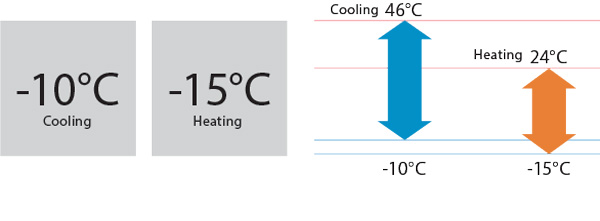

Factory-guaranteed cooling operation down to -10°C ambient temperature.
With the optional WLAN adapter installed in the air conditioner, you can control it from anywhere with your smart device.

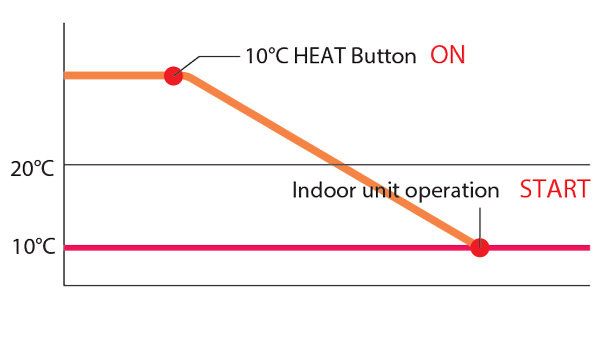

The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
| Series | KVC |
| Indoor Unit | AGEG12KVCA |
| Outdoor Unit | AOEG12KVCA |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 12 000 BTU |
| Cooling Capacity (kW) | 3.5 (0.9 - 4.0) |
| Heating Capacity (kW) | 4.5 (0.9 - 5.3) |
| Power Input Cooling/Heating (kW) | 0.880 / 1.220 |
| Pdesign Cooling/Heating (-10°C) (kW) | 3.5 / 3.5 |
| EER (Energy Efficiency in Cooling) | 4.00 |
| COP (Energy Efficiency in Heating) | 3.70 |
| SEER (Seasonal Cooling Efficiency) | 8.20 |
| SCOP (Seasonal Heating Efficiency) | 4.10 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ |
| Current for Cooling / Heating (A) | 7.0 / 8.5 |
| Moisture Removal (l/h) | 1.8 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 40 / 35 / 29 / 22 |
| Sound Pressure Indoor Unit - Heating dB(A) | 41 / 35 / 29 / 22 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 45 / 51 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 53 / 54 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 61 / 64 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 570 / 1530 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 600 / 1510 |
| Dimensions - Indoor Unit WxHxD (mm) | 740 × 600 × 200 |
| Dimensions - Outdoor Unit WxHxD (mm) | 799 × 542 × 290 |
| Weight - Indoor Unit (kg) | 14 |
| Weight - Outdoor Unit (kg) | 31 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 9.52 |
| Drain Pipe Diameter (mm) | 13.8 / 15.8 - 16.7 |
| Maximum Pipe Lenght (m) | 20 |
| Maximum Height Difference (m) | 15 |
| Operation Range - Cooling (°C) | -10 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
