Light Elegant Design
The light-elegant, gently curved surface gives a sense of comfort and well-being.

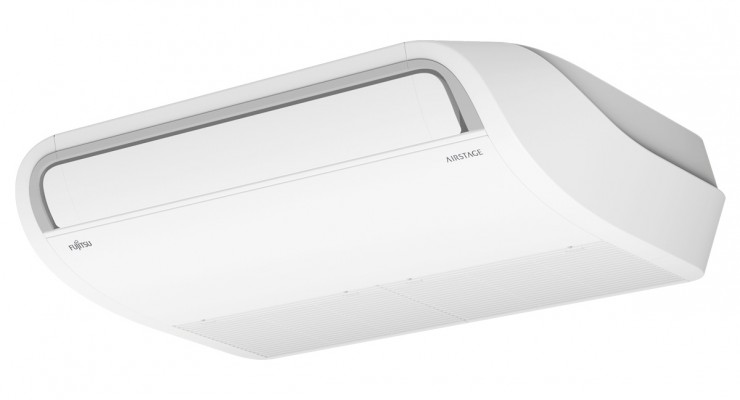

Inverter ceiling-type air conditioner Fujitsu Airstage ABEG22KRTA ECO
- Cooling
6.00 kW - Heating
7.00 kW - SEER
5.60 A+ - SCOP
3.80 A - Noise
31 dB
Easy Installation
The indoor unit can be easily installed under the ceiling thanks to the uniquely designed mounting kit.
- Set mounting brackets
- Hold up the ceiling unit and fit to the mounting brackets
- Attach with screws
Easy Maintenance
The front panel can be opened without removing it for safe & speedy maintenance.
The drain pan can be removed for cleaning.
Components in the control box can be easily accessed from the wide side opening.
Flexible Installation
The drain hose and pipe can be contained in the casing and connected in the right, left, angled, or downward direction.
Link Up with a Variety of Central Control System (Option)
Centralized control including facilities and equipment in addition to air conditioning is possible by linking up with MODBUS, KNX interfaces.
| Series | KRT |
| Indoor Unit | ABEG22KRTA |
| Outdoor Unit | AOEG22KATA |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 22 000 BTU |
| Cooling Capacity (kW) | 6.0 (0.9 - 6.3) |
| Heating Capacity (kW) | 7.0 (0.9 - 7.4) |
| Power Input Cooling/Heating (kW) | 1.95 / 2.09 |
| Pdesign Cooling/Heating (-10°C) (kW) | 6.0 / 4.4 |
| EER (Energy Efficiency in Cooling) | 3.08 |
| COP (Energy Efficiency in Heating) | 3.35 |
| SEER (Seasonal Cooling Efficiency) | 5.60 |
| SCOP (Seasonal Heating Efficiency) | 3.80 |
| Energy Efficiency Class (Cooling) | A+ |
| Energy Efficiency Class (Heating) | A |
| Maximum Current for Cooling / Heating (A) | 11.6 / 11.6 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 42 / 37 / 34 / 31 |
| Sound Pressure Indoor Unit - Heating dB(A) | 42 / 37 / 34 / 31 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 52 / 53 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 57 / 57 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 64 / 65 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 900 / 2240 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 900 / 2240 |
| Dimensions - Indoor Unit WxHxD (mm) | 1080 × 235 × 705 |
| Dimensions - Outdoor Unit WxHxD (mm) | 799 × 632 × 290 |
| Weight - Indoor Unit (kg) | 24 |
| Weight - Outdoor Unit (kg) | 36 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 12.7 |
| Maximum Pipe Lenght (m) | 25 (15) |
| Operation Range - Cooling (°C) | -10 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
