Light Elegant Design
Light-elegant and three-dimensional expression composed of curved surface gives comfort and wellbeing.
Drain hose and piping can be set in the casing and drawn out flexibly in the right, left, side and down directions.
The indoor unit can be easily installed under the ceiling due to the new designed mounting.
1. Set mounting brackets
2. Hold up the ceiling and fit the ceiling to the mounting brackets
3. Attach with screws
The front panel can be opened without removing for safe & speedy maintainance.
Drain pan can be taken off for cleaning.
Components in the control box can be easily accessed from the widely open side.
|Type||Ceil type air conditioners|
|Power supply (V/ø/Hz)||230 / 1 / 50|
|Capacity (BTU)||18 000 BTU|
|Cooling Capacity (kW)||5.2 (0.9 - 5.9)|
|Heating Capacity (kW)||6.0 (0.9 - 7.5)|
|Power Input Cooling/Heating (kW)||1.55 / 1.62|
|Pdesign Cooling/Heating (-10°C) (kW)||5.2 / 4.4|
|EER (Energy Efficiency in Cooling)||3.35|
|COP (Energy Efficiency in Heating)||3.70|
|SEER (Seasonal Cooling Efficiency)||6.20|
|SCOP (Seasonal Heating Efficiency)||4.10|
|Energy Efficiency Class (Cooling)||A++|
|Energy Efficiency Class (Heating)||A+|
|Maximum Current for Cooling / Heating (A)||12.1 / 12.1|
|Moisture Removal (l/h)||2.0|
|Sound Pressure Indoor Unit - Cooling dB(A)||38 / 36 / 33 / 31|
|Sound Pressure Indoor Unit - Heating dB(A)||38 / 36 / 33 / 31|
|Sound Pressure Outdoor Unit - Cooling/Heating dB(A)||50 / 50|
|Sound Power Indoor Unit - Cooling/Heating dB(A)||53 / 53|
|Sound Power Outdoor Unit - Cooling/Heating dB(A)||62 / 62|
|Air Flow Indoor / Outdoor Unit - Cooling (m3/h)||840 / 2160|
|Air Flow Indoor / Outdoor Unit - Heating (m3/h)||840 / 1830|
|Dimensions - Indoor Unit WxHxD (mm)||1080 x 235 x 705|

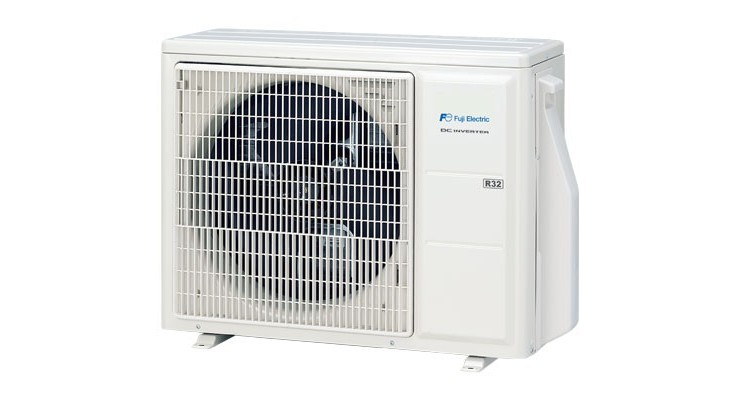

|Dimensions - Outdoor Unit WxHxD (mm)||799 x 632 x 290|
|Weight - Indoor Unit (kg)||24|
|Weight - Outdoor Unit (kg)||36|
|Piping Connections - Liquid/Gas (mm)||6.35 / 12.7|
|Drain Pipe Diameter (mm)||25 / 32|
|Maximum Pipe Lenght (m)||30|
|Maximum Height Difference (m)||30|
|Operation Range - Cooling (°C)||-15 ~ 46|
|Operation Range - Heating (°C)||-15 ~ 24|
