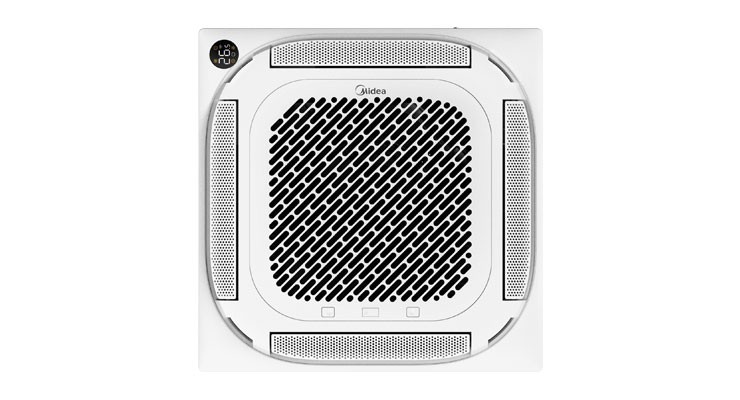

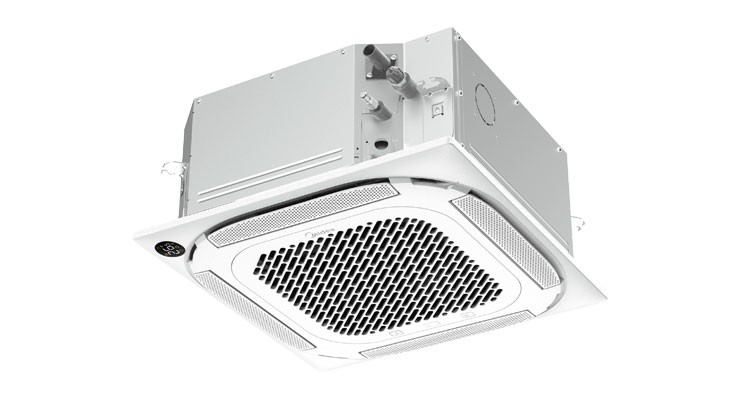

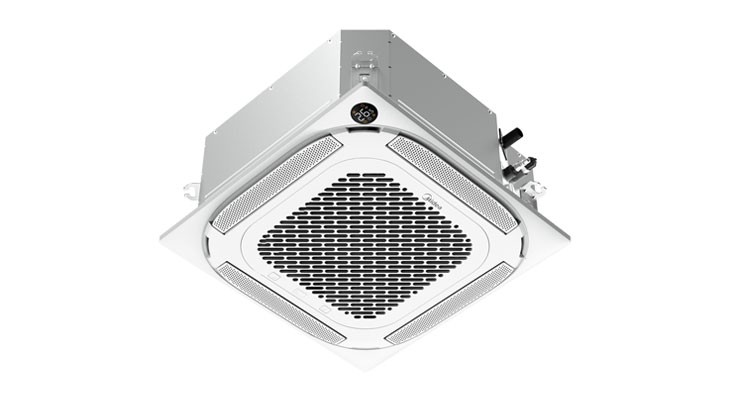

Inverter cassette-type air conditioner Midea MCA4U-12HRFNX-QRD1W(GA)
In stock
1,029.00 €
- Cooling
3.52 kW - Heating
3.81 kW - SEER
6.80 A++ - SCOP
4.10 A+ - Noise
25.5 dB
Individual Vane Control
The individual vane control system enables the unit to supply multi-directional airflow and customize everyone's comfort with a multitude of cooling configurations.
360° Round Flow
Unique seamless airflow louver design allows cool air todi use and sink in 360°, offering uniform cooling experience throughout the space.
Real Health Without Concerns
Outdoor air can be led into the room via a connection pipe, which keeps the indoor air fresh and healthy.
Intelligent Dusting Switch
After turning off the AC, the fan blade of the outdoor unit will automatically rotate in reverse to get rid of the sand and dust for keeping the AC clean.
LED Display
Larger LED display design, easier to check temperature at any time.
| Manufacturer | Midea |
| Type | Cassette type air conditioners |
| Technology | Inverter |
| Series | Compact |
| Indoor Unit | MCA4U-12HRFNX-QRD1W(GA) |

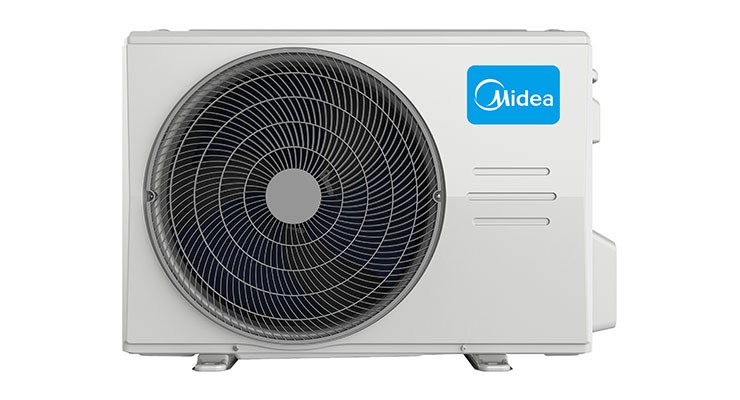

| Outdoor Unit | MOX230-12HFN8-QRD0W(GA) |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 12 000 BTU |
| Cooling Capacity (kW) | 3.52 (0.85 ~ 4.16) |
| Heating Capacity (kW) | 3.81 (0.47 ~ 4.34) |
| Power Input Cooling/Heating (kW) | 1.01 (0.16 ~ 1.45) / 1.02 (0.12 ~ 1.39) |
| SEER (Seasonal Cooling Efficiency) | 6.80 |
| SCOP (Seasonal Heating Efficiency) | 4.10 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ |
| Current for Cooling / Heating (A) | 4.50 (1.30 ~ 6.40) / 4.50 (1.10 ~ 6.20) |
| Sound Pressure Indoor Unit - Cooling dB(A) | 42 / 38.5 / 31.5 / 25.5 |
| Sound Pressure Indoor Unit - Heating dB(A) | 42 / 38.5 / 31.5 / 25.5 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 57 / 57 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 55 / 55 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 62 / 62 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 620 / 520 / 330 / 2200 |
| Dimensions - Indoor Unit WxHxD (mm) | 570 x 245 x 570 |
| Dimensions - Outdoor Unit WxHxD (mm) | 765 x 555 x 303 |
| Weight - Indoor Unit (kg) | 16.1 |
| Weight - Outdoor Unit (kg) | 26.6 |
| Piping Connections - Liquid/Gas (mm) | φ 6.35 / φ 9.52 |
| Maximum Pipe Lenght (m) | 25 |
| Maximum Height Difference (m) | 10 |
| Operation Range - Cooling (°C) | -15 ~ 50 |
| Operation Range - Heating (°C) | -20 ~ 24 |
| Refrigerant (type) | R32 |
| Refrigerant - factory charge (kg) | 0.71 |
| Warranty | 3 years |
