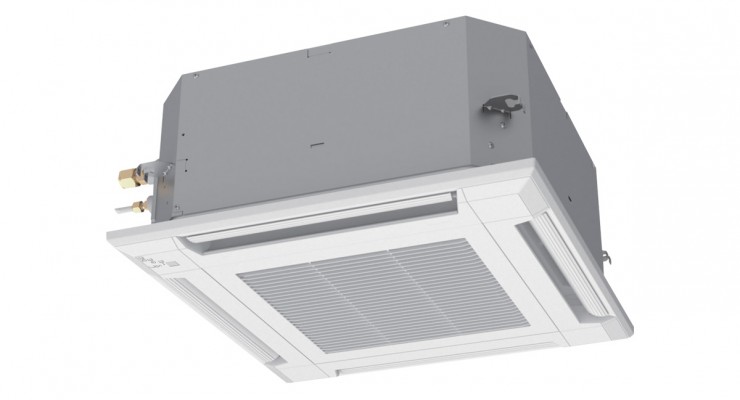

The compact and stylish panel fits nicely into a grid-type ceiling. Its linear design is a perfect fit into a grid of 620 mm × 620 mm in the ceiling.
You can access the unit for maintenance simply by removing a ceiling panel next to the grille. As no inspection hole needs to be cut through the ceiling, no additional construction cost is incurred.
The air inlet grille can be installed to open in any direction for easy maintenance.
The unit fits nicely into the decor of a grid-type ceiling and can be installed near the lighting or a ventilation opening.
Centralized control including facilities and equipment in addition to air conditioning is possible by linking up with MODBUS, KNX interfaces.
| Series | KVL |
| Indoor Unit | AUXG24KVLA |
| Outdoor Unit | AOEG24KATA |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 24 000 BTU |
| Cooling Capacity (kW) | 6.8 (0.9 - 7.4) |
| Heating Capacity (kW) | 7.5 (0.9 - 8.6) |
| Power Input Cooling/Heating (kW) | 2.26 / 2.08 |
| Pdesign Cooling/Heating (-10°C) (kW) | 6.8 / 5.4 |
| EER (Energy Efficiency in Cooling) | 3.01 |
| COP (Energy Efficiency in Heating) | 3.61 |
| SEER (Seasonal Cooling Efficiency) | 5.90 |
| SCOP (Seasonal Heating Efficiency) | 3.80 |
| Energy Efficiency Class (Cooling) | A+ |
| Energy Efficiency Class (Heating) | A |
| Maximum Current for Cooling / Heating (A) | 12.6 / 12.6 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 49 / 44 / 36 / 30 |
| Sound Pressure Indoor Unit - Heating dB(A) | 49 / 45 / 40 / 33 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 54 / 55 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 59 / 61 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 66 / 67 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 930 / 2350 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 930 / 2885 |
| Dimensions - Indoor Unit WxHxD (mm) | 570 × 245 × 570 |
| Dimensions - Outdoor Unit WxHxD (mm) | 799 × 632 × 290 |
| Weight - Indoor Unit (kg) | 16 |
| Weight - Outdoor Unit (kg) | 38 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 12.70 |
| Maximum Pipe Lenght (m) | 25 (20) |
| Operation Range - Cooling (°C) | -10 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
