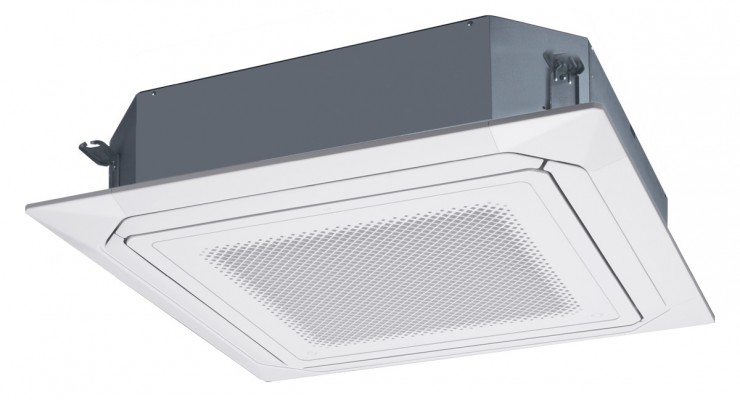

Inverter cassette-type air conditioner Fujitsu Airstage AUXG22KRLB ECO
Inverter cassette-type air conditioner Fujitsu Airstage AUXG22KRLB ECO
Inverter cassette-type air conditioner Fujitsu Airstage AUXG22KRLB ECO
Inverter cassette-type air conditioner Fujitsu Airstage AUXG22KRLB ECO

Inverter cassette-type air conditioner Fujitsu Airstage AUXG22KRLB ECO

  • Cooling
    6.00 kW
  • Heating
    7.00 kW
  • SEER
    6.20 A++
  • SCOP
    4.10 A+
  • Noise
    28 dB

+35932 390 107
or
SEND INQUIRY


Unique Circular Flow Design

The Cassette model realizes a Circular Flow to blow a large airflow in a 360° direction by using a high-performance DC fan motor, turbo fan, and a unique seamless airflow louver design.

Individual Louver Control*

Each louver can be controlled individually with a wired remote controller equipped with a touch panel to provide different directional airflows according to the room layout.

*Wired remote controller (touch panel) (UTY-RNRYZ6) only

The Occupancy sensor yields more energy savings. Energy saving operation starts automatically by detecting the motion of a person. Two modes of save operation mode and stop mode can be selected.

Inverter cassette-type air conditioner Fujitsu Airstage AUXG-KRLB
Inverter cassette-type air conditioner Fujitsu Airstage AUXG-KRLB

Compact and Lightweight Outdoor Unit

The outdoor units for the 45,000 BTU and 54,000 BTU models have been completely redesigned. Easier installation is achieved for this compact and lightweight outdoor unit.

Link Up with a Variety of Central Control System (Option)

Centralized control including facilities and equipment in addition to air conditioning is possible by linking up with MODBUS, KNX interfaces.

Inverter cassette-type air conditioner Fujitsu Airstage AUXG-KRLB
Inverter cassette-type air conditioner Fujitsu Airstage AUXG-KRLB

Various Cassette Grilles

Both black and white grilles are available. Three types of grilles are available: a white grille with a remote controller; a white grille without a remote controller; and a black grille without a remote controller. Select to match the atmosphere and/or usage of the room.

Series KRL
Indoor Unit AUXG22KRLB
Outdoor Unit AOEG22KATA
Power supply (V/ø/Hz) 230 / 1 / 50
Capacity (BTU) 22 000 BTU
Cooling Capacity (kW) 6.0 (0.9 - 6.3)
Heating Capacity (kW) 7.0 (0.9 - 7.4)
Power Input Cooling/Heating (kW) 1.85 / 1.93
Pdesign Cooling/Heating (-10°C) (kW) 6.0 / 4.4
EER (Energy Efficiency in Cooling) 3.24
COP (Energy Efficiency in Heating) 3.63
SEER (Seasonal Cooling Efficiency) 6.20
SCOP (Seasonal Heating Efficiency) 4.10
Energy Efficiency Class (Cooling) A++
Energy Efficiency Class (Heating) A+
Maximum Current for Cooling / Heating (A) 11.6 / 11.6
Sound Pressure Indoor Unit - Cooling dB(A) 33 / 32 / 31 / 28
Sound Pressure Indoor Unit - Heating dB(A) 33 / 32 / 31 / 28
Sound Pressure Outdoor Unit - Cooling/Heating dB(A) 52 / 53
Sound Power Indoor Unit - Cooling/Heating dB(A) 49 / 49
Sound Power Outdoor Unit - Cooling/Heating dB(A) 64 / 65
Air Flow Indoor / Outdoor Unit - Cooling (m3/h) 1050 / 2240
Air Flow Indoor / Outdoor Unit - Heating (m3/h) 1050 / 2240
Dimensions - Indoor Unit WxHxD (mm) 840 × 246 × 840
Dimensions - Outdoor Unit WxHxD (mm) 799 × 632 × 290
Weight - Indoor Unit (kg) 23
Weight - Outdoor Unit (kg) 36
Piping Connections - Liquid/Gas (mm) 6.35 / 12.70
Maximum Pipe Lenght (m) 25 (15)
Operation Range - Cooling (°C) -10 ~ 46
Operation Range - Heating (°C) -15 ~ 24
Refrigerant (type) R32
Warranty 3 years
