Unique Circular Flow design
Cassette type realizes Circular Flow to blow large airflow in 360º direction by mounting high performance DC fan motor, turbo fan and unique seamless airflow louver design.
Individual louver control

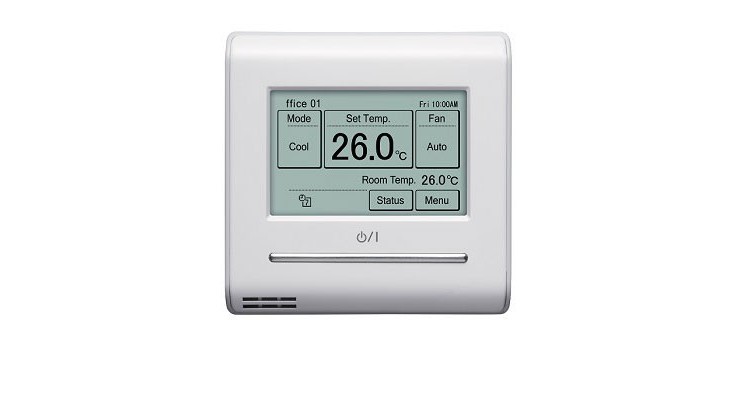

Each louver can be set individually by Touch Panel Wired Remote Controller to enjoy the comfort of different directional airflows according to various room layouts.
*Touch Panel Wired RC (UTY-RNRYZ3) only
Human sensor increases more energy saving
Energy saving operation starts automatically by detecting the motion of a person. 2 modes of save operation mode and stop mode can be selected.

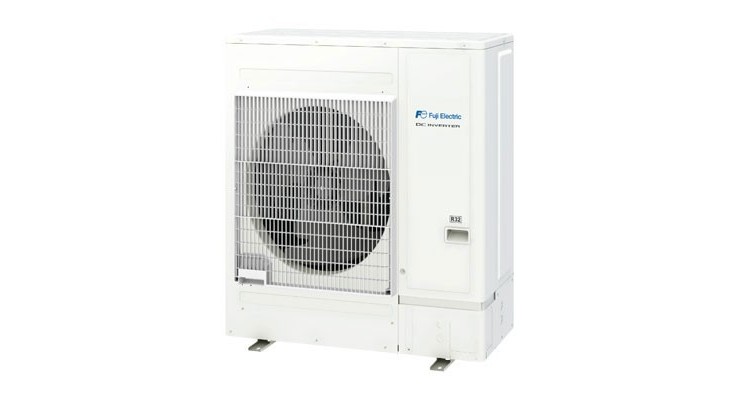

Compact and lightweight outdoor unit
45/54 models outdoor unit was changed completely. Easier installation was realized by compact and lightweight outdoor unit.
Low ambient operation
Various Cassette Grille
Both, black and white color grilles are available. There are three types: white color grille with Remote Controller, only white color grille and only black color grille.
Selectable according to the atmosphere and/or usage of the room.
|Type||Cassette type air conditioners|
|Power supply (V/ø/Hz)||230 / 1 / 50|
|Capacity (BTU)||45 000 BTU|
|Cooling Capacity (kW)||12.1 (4.0 - 14.0)|
|Heating Capacity (kW)||13.5 (4.2 - 16.2)|
|Power Input Cooling/Heating (kW)||3.61 / 3.21|
|EER (Energy Efficiency in Cooling)||3.35|
|COP (Energy Efficiency in Heating)||4.20|
|Energy Efficiency Class (Cooling)||A|
|Energy Efficiency Class (Heating)||A|
|Maximum Current for Cooling / Heating (A)||28.5 / 28.5|
|Moisture Removal (l/h)||4.5|
|Sound Pressure Indoor Unit - Cooling dB(A)||46 / 42 / 39 / 35|
|Sound Pressure Indoor Unit - Heating dB(A)||46 / 42 / 39 / 35|
|Sound Pressure Outdoor Unit - Cooling/Heating dB(A)||57 / 57|
|Sound Power Indoor Unit - Cooling/Heating dB(A)||60 / 60|
|Sound Power Outdoor Unit - Cooling/Heating dB(A)||71 / 71|
|Air Flow Indoor / Outdoor Unit - Cooling (m3/h)||2000 / 4450|
|Air Flow Indoor / Outdoor Unit - Heating (m3/h)||2000 / 4450|
|Dimensions - Indoor Unit WxHxD (mm)||840 x 288 x 840|
|Dimensions - Outdoor Unit WxHxD (mm)||940 x 998 x 320|
|Weight - Indoor Unit (kg)||29|
|Weight - Outdoor Unit (kg)||67|
|Piping Connections - Liquid/Gas (mm)||9.52 / 15.88|
|Drain Pipe Diameter (mm)||25 / 32|
|Maximum Pipe Lenght (m)||50|
|Maximum Height Difference (m)||30|
|Operation Range - Cooling (°C)||-15 ~ 46|
|Operation Range - Heating (°C)||-15 ~ 24|
