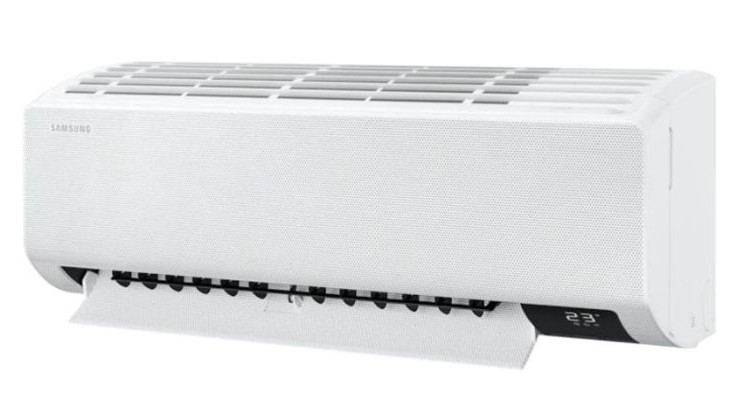

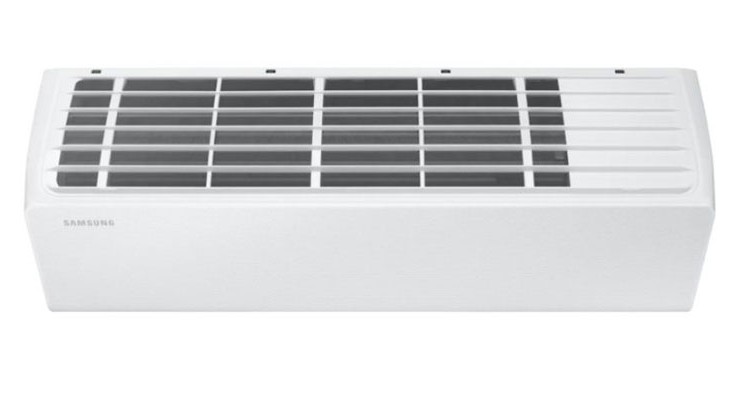

Indoor unit for multi-split system Samsung Luzon AR12TXHZAWKN/EU
- Cooling
3.50 kW - Heating1
3.50 kW - Noise
19 dB
- Easy Filter Plus with filter cleaning indicator.
- Eco Mode and Quiet Mode.
- Compatible with wired remote controller and with a centralized controller.
| Indoor Unit | AR12TXHZAWKN/EU | ||
|---|---|---|---|
| Capacity | |||
| Capacity | Cooling | kW | 3.5 |
| Heating @ +7 °C | kW | 3.5 | |
| Performance | |||
| Airflow Rate | m3/min | 10.9 | |
| Sound Power | Cooling | dB(A) | 56 |
| Sound Pressure | H/L | dB(A) | 38/19 |
| Electrical Data | |||
| Power Source | Φ, V, Hz | 1Φ, 220~240 V, 50 Hz | |
| Power Consumption | Cooling | W | 30 |
| Heating | W | 30 | |
| Current Input | Cooling | A | 0.3 |
| Heating | A | 0.3 | |
| Dimensions | |||
| Net Dimensions (W x H x D) | mm | 820 x 299 x 215 | |
| Net Weight | kg | 8.9 | |
| Refrigerant | |||
| Piping Connections | Liquid Pipe | ø, inch | 1/4 |
| Gas Pipe | ø, inch | 3/8 | |
| Piping Connections | Drain Pipe | ø, mm | ID 16 |
| Functions | |||
| Airflow | WindFree™ Cooling | ||
| Air Direction Control (Up/Down) | Auto | ||
| Air Direction Control (Left/Right) | Manual | ||
| Auto Fan Speed | • | ||
| Air Purification | Tri-Care Filter | ||
| Easy Filter Plus | • | ||
| Auto Clean (Self-Cleaning) | • | ||
| Operating Mode | AI Auto Comfort with Wi-Fi & MDS (direct/indirect) | ||
| AI Auto Comfort with Wi-Fi | |||
| Auto Mode (without Wi-Fi) | • | ||
| Fast Cooling | • | ||
| Good Sleep | • | ||
| Eco | • | ||
| Dehumidification | • | ||
| Fan | • | ||
| Quiet | • | ||
| Other Functions | Samsung SmartThings | ||
| MDS (Motion Detect Sensor) | |||
| Indoor Temperature Display | 88 Display | • | |
| Display On/Off | • | ||
| Beep On/Off | • | ||
| Auto Changeover | • | ||
| Auto Restart | • | ||
- Heating power at +7°C
| Series | Luzon |
| Indoor Unit | AR12TXHZAWKN/EU |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Cooling Capacity (kW) | 3.5 |
| Heating Capacity (kW) | 3.5 |
| Power Input Cooling/Heating (kW) | 0.03 / 0.03 |
| Current for Cooling / Heating (A) | 0.3 / 0.3 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 38 / 19 |
| Sound Pressure Indoor Unit - Heating dB(A) | 38 / 19 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 56 / 56 |
| Dimensions - Indoor Unit WxHxD (mm) | 820 x 299 x 215 |
| Weight - Indoor Unit (kg) | 8.9 |
| Piping Connections - Liquid/Gas (mm) | 1/4 / 3/8 |
| Warranty | 3 years |
