Indoor console-type unit for multi-split system Samsung AJ052TNJDKG/EU
- Cooling
5.20 kW - Heating
5.60 kW1 - Noise
32 dB
- SPi Ioniser (included).
- Slim design: only 199 mm in depth.
- Two separate air outlets, upper (cooling) and bottom (heating) to avoid stratification.
- Long-life washable permanent filter.
- Auto Restart function.

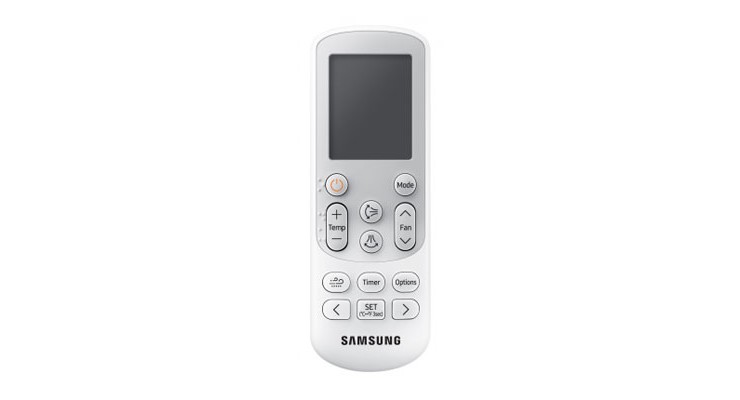

- Remote controller included in console units.
| Indoor Unit | AJ052TNJDKG/EU | ||
|---|---|---|---|
| Capacity | |||
| Capacity | Cooling | kW | 5.2 |
| Heating @ +7 °C | kW | 5.6 | |
| Performance | |||
| Airflow Rate | m3/min | 11.2/9.9/8.6 | |
| Sound Power | Cooling | dB(A) | 60 |
| Sound Pressure | H/M/L | dB(A) | 43/39/32 |
| Electrical Data | |||
| Power Source | Φ, V, Hz | 1Φ, 2, 220~240 V, 50 Hz | |
| Power Consumption | Cooling | W | 50 |
| Heating | W | 50 | |
| Current Input | Cooling | A | 0.29 |
| Heating | A | 0.29 | |
| Dimensions | |||
| Net Dimensions (W x H x D) | mm | 720 x 199 x 620 | |
| Net Weight | kg | 15.7 | |
| Refrigerant | |||
| Piping Connections | Liquid Pipe | ø, inch | 1/4 |
| Gas Pipe | ø, inch | 3/8 | |
| Piping Connections | Drain Pipe | ø, mm | VP25 (OD 32, ID 25) |
- Heating power at +7°C
| Indoor Unit | AJ052TNJDKG/EU |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Cooling Capacity (kW) | 5.2 |
| Heating Capacity (kW) | 5.6 |
| Power Input Cooling/Heating (kW) | 0.05 / 0.05 |
| Current for Cooling / Heating (A) | 0.29 / 0.29 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 43 / 39 / 32 |
| Sound Pressure Indoor Unit - Heating dB(A) | 43 / 39 / 32 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 60 / 60 |
| Dimensions - Indoor Unit WxHxD (mm) | 720 x 199 x 620 |
| Weight - Indoor Unit (kg) | 15.7 |
| Piping Connections - Liquid/Gas (mm) | 1/4 / 3/8 |
| Warranty | 3 years |
