Indoor cassette-type unit for multi-split system Samsung AJ026TN1DKG/EU
- Cooling
2.60 kW - Heating1
2.90 kW - Noise
26 dB
- 2-Step Cooling: Fast Cooling & WindFree™ Cooling.
- Blade angle between 37° and 87°, blade width 100 mm.
- Built-in humidity sensor.
- Height of only 135 mm.
- Built-in condensation drain pump (750 mmH2O).
| Indoor Unit | AJ026TN1DKG/EU | ||
|---|---|---|---|
| Panel | PC1NWFMAN | ||

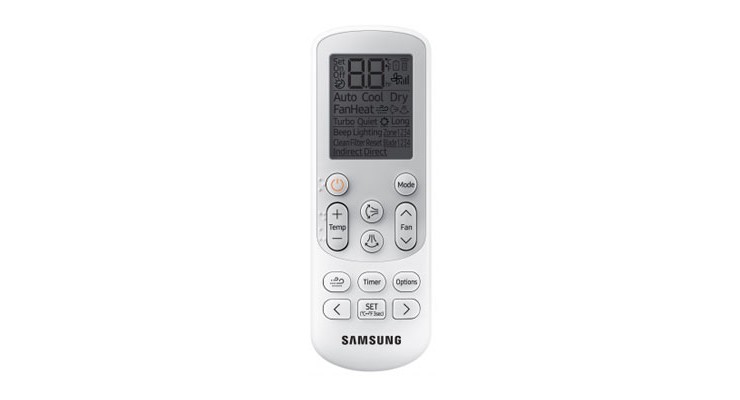

| Wireless Remote Controller | AR-EH03E | ||
| Capacity | |||
| Capacity | Cooling | kW | 2.6 |
| Heating @ +7 °C | kW | 2.9 | |
| Performance | |||
| Airflow Rate | m3/min | 6.2/5.2/4.2 | |
| Sound Power | Cooling | dB(A) | 50 |
| Sound Pressure | H/M/L | dB(A) | 32/29/26 |
| Electrical Data | |||
| Power Source | Φ, V, Hz | 1Φ, 220~240 V, 50 Hz | |
| Power Consumption | Cooling | W | 45 |
| Heating | W | 45 | |
| Current Input | Cooling | A | 0.23 |
| Heating | A | 0.23 | |
| Dimensions | |||
| Net Dimensions (W x H x D) | mm | 970 x 135 x 410 | |
| Net Weight | kg | 10.0 | |
| Refrigerant | |||
| Piping Connections | Liquid Pipe | ø, inch | 1/4 |
| Gas Pipe | ø, inch | 3/8 | |
| Piping Connections | Drain Pipe | ø, mm | VP20 (OD 26, ID 20) |
| Others | |||
| Panel | Model Code | PC1NWFMAN | |
| Net Dimensions (W x H x D) | mm | 1198 x 135 x 500 | |
| Net Weight | kg | 4.3 | |
| Accessories | Drain Pump | Included | |
| Max. Lifting Height/Displacement | mm / litres/h | 750/24 | |
- Heating power at +7°C
| Indoor Unit | AJ026TN1DKG/EU |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Cooling Capacity (kW) | 2.6 |
| Heating Capacity (kW) | 2.9 |
| Power Input Cooling/Heating (kW) | 0.045 / 0.045 |
| Current for Cooling / Heating (A) | 0.23 / 0.23 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 32 / 29 / 26 |
| Sound Pressure Indoor Unit - Heating dB(A) | 32 / 29 / 26 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 50 / 50 |
| Dimensions - Indoor Unit WxHxD (mm) | 970 x 135 x 410 |
| Weight - Indoor Unit (kg) | 10.0 |
| Piping Connections - Liquid/Gas (mm) | 1/4 / 3/8 |
| Warranty | 3 years |
