Top class high efficiency is achieved by high efficient lambda-shaped heat exchanger, large cross flow fan and R32 refrigerant.

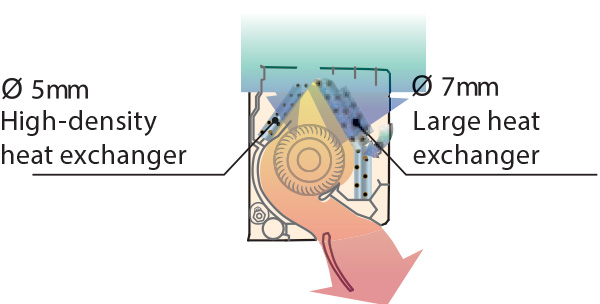

The large hybrid heat exchanger has greatly improved the heat exchange efficiency to achieve top-level SEER and SCOP.
The large-diameter fan generates air volume effi ciently even at reduced power.
The Occupancy sensor monitors the movements of people in a room and operates the air conditioner at a lower capacity when people leave the room. When people come back to the room, it automatically returns to the previous operating mode.
The large louver and the air-blowing structure create a comfortable air flow that spreads all the way down to the user’s feet with quiet operation.
A WLAN adapter is included as standard equipment. By installing the AIRSTAGE mobile app on your smart device, you can check and control the operating status of the air conditioner from anywhere indoors or outdoors.
Wired Remote Controller (Touch Panel) will support to display some sensor values for maintenance and service support.
*Wired remote controller (UTY-RNRYZ5 or UTY-RVRY) is required.
| Series | KG |

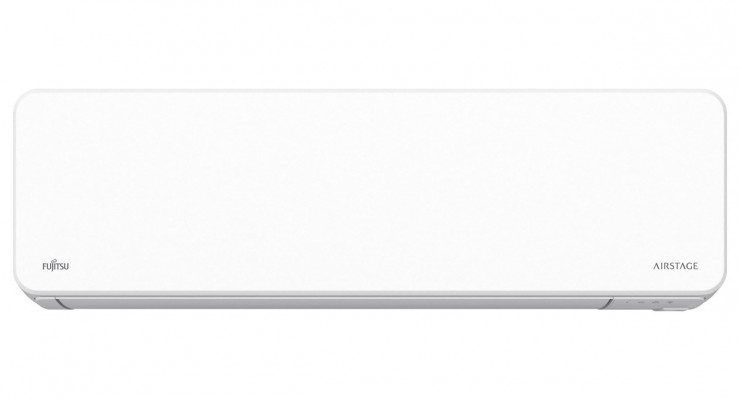

| Indoor Unit | ASEH12KGTG |
| Outdoor Unit | AOEH12KGCG |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Capacity (BTU) | 12 000 BTU |
| Cooling Capacity (kW) | 3.4 (0.9 - 4.1) |
| Heating Capacity (kW) | 4.0 (0.9 - 6.1) |
| Power Input Cooling/Heating (kW) | 0.870 / 0.910 |
| Pdesign Cooling/Heating (-10°C) (kW) | 3.4 / 2.5 |
| EER (Energy Efficiency in Cooling) | 3.91 |
| COP (Energy Efficiency in Heating) | 4.40 |
| SEER (Seasonal Cooling Efficiency) | 8.80 |
| SCOP (Seasonal Heating Efficiency) | 5.20 |
| Energy Efficiency Class (Cooling) | A+++ |
| Energy Efficiency Class (Heating) | A+++ |
| Current for Cooling / Heating (A) | 6.5 / 9.0 |
| Moisture Removal (l/h) | 1.6 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 40 / 35 / 30 / 19 |
| Sound Pressure Indoor Unit - Heating dB(A) | 42 / 38 / 33 / 21 |
| Sound Pressure Outdoor Unit - Cooling/Heating dB(A) | 50 / 50 |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 56 / 58 |
| Sound Power Outdoor Unit - Cooling/Heating dB(A) | 65 / 66 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 680 / 1800 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 750 / 1690 |
| Dimensions - Indoor Unit WxHxD (mm) | 834 × 270 × 215 |
| Dimensions - Outdoor Unit WxHxD (mm) | 799 × 542 × 290 |
| Weight - Indoor Unit (kg) | 10 |
| Weight - Outdoor Unit (kg) | 31 |
| Piping Connections - Liquid/Gas (mm) | 6.35 / 9.52 |
| Drain Pipe Diameter (mm) | 13.8 / 15 - 16.8 |
| Maximum Pipe Lenght (m) | 20 |
| Maximum Height Difference (m) | 15 |
| Operation Range - Cooling (°C) | -10 ~ 50 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant (type) | R32 |
| Warranty | 3 years |
