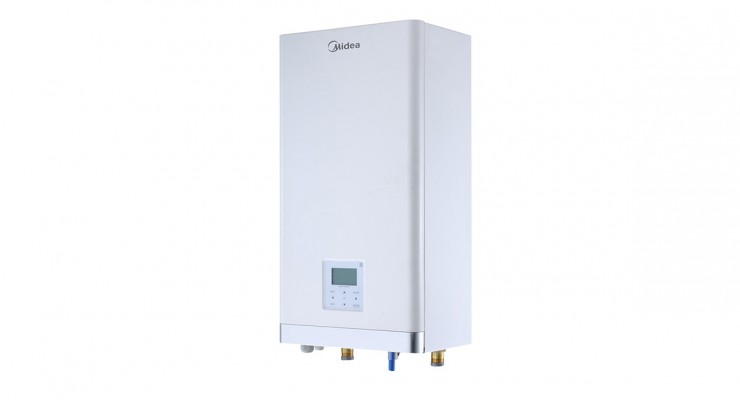

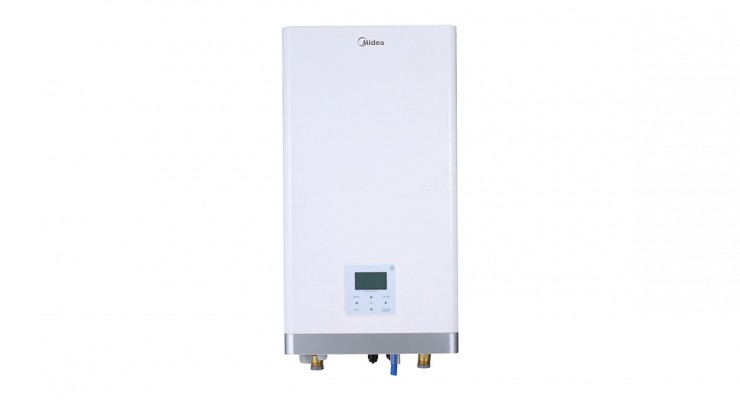

Hydro Module Midea Atom T SMK-D160N8(At)
In stock
2,549.00 €
- Heating (W35)
15.50 kW - Heating (W45)
15.30 kW - Heating (W55)
13.50 kW - Noise
44 dB
| Outdoor unit model | MDV-V80WHN8(At | MDV-V100WHN8(At) | MDV-V120WHN8(At) | MDV-V140WHN8(At) | MDV-V160WHN8(At) | ||
|---|---|---|---|---|---|---|---|
| Hydraulic module | SMK-D160N8(At) | ||||||
| Connected indoor unit | 50%-100% of ODU capacity(VRF IDU)+hydraulic module | ||||||
| Heat capacity(W35) | kW | 7.2 | 9 | 12.3 | 14 | 15.5 | |
| COP (W35) | 3.8 | 4.2 | 3.9 | 4.1 | 4 | ||
| Heat capacity(W45) | kW | 7 | 8.8 | 12.1 | 13.8 | 15.3 | |
| COP (W45) | 2.9 | 3.2 | 3 | 3.1 | 3 | ||
| Heat capacity(W55) | kW | 6.8 | 8.5 | 11.5 | 13 | 13.5 | |
| COP (W55) | 2.25 | 2.4 | 2.45 | 2.15 | 2.15 | ||
| Engry class(W55) | A+ | ||||||
| Outdoor Unit | Dimension(WxHxD) | mm | 420×790×270 | ||||
| Packing (WxHxD) | mm | 525×1050×360 | |||||
| Net/Gross weight | kg | 44/49 | |||||
| Sound power level | dB(A) | 40 | 43 | 43 | 44 | 44 | |
| Set temperature range | heat | °C | 25-60 | ||||
| DHW | °C | 25-60 | |||||
| Backup heater | kW | 3 | |||||
| Manufacturer | Midea |
| Type | Heat pumps |
| Technology | Inverter |
| Series | Atom T |
| Indoor Unit | SMK-D160N8(At) |
| Power supply (V/ø/Hz) | 230 / 1 / 50 |
| Cooling Capacity (kW) | - |
| Heating Capacity (kW) | 15.50 |
| Power Input Cooling/Heating (kW) | - |
| EER (Energy Efficiency in Cooling) | - |
| COP (Energy Efficiency in Heating) | 4 |
| SEER (Seasonal Cooling Efficiency) | - |
| SCOP (Seasonal Heating Efficiency) | - |
| Energy Efficiency Class (Cooling) | - |
| Energy Efficiency Class (Heating) | A+ |
| Sound Power Indoor Unit - Cooling/Heating dB(A) | 44 / 44 |
| Dimensions - Outdoor Unit WxHxD (mm) | 420 × 790 × 270 |
| Weight - Outdoor Unit (kg) | 44 |
| Operation Range - Cooling (°C) | - |
| Operation Range - Heating (°C) | 25 ~ 60 |
| Built-in water tank (L) | No |
| Refrigerant (type) | R32 |
